RAVENOL ATF M 9-Serie

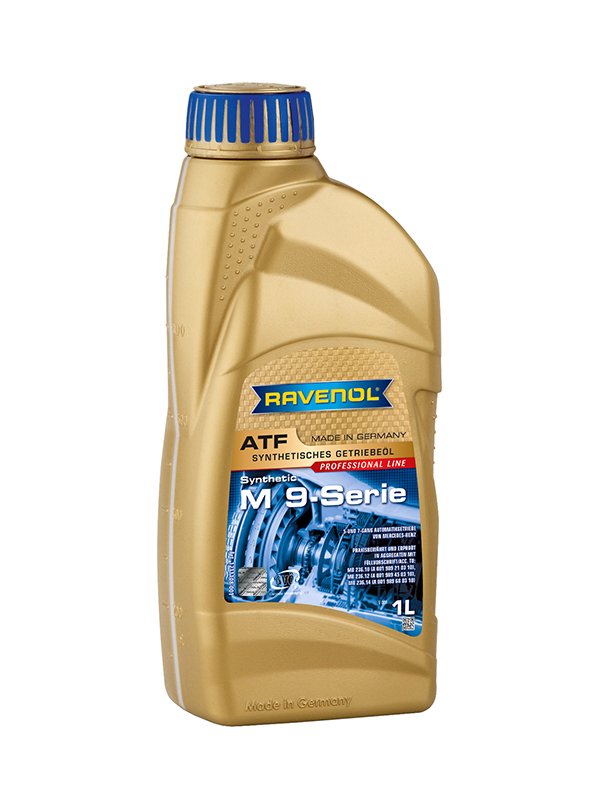

RAVENOL ATF M 9-Serie 1 L- 1211108-001
ART.-NR. 1211108-001

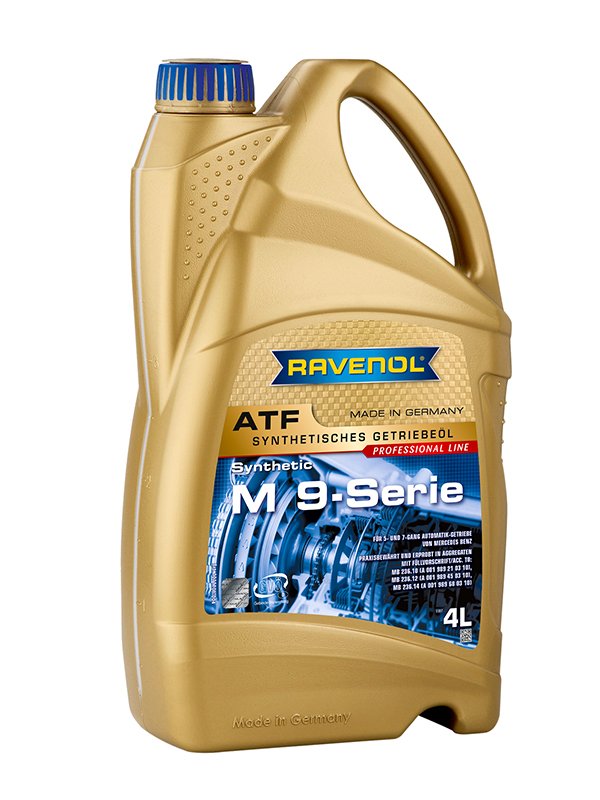

RAVENOL ATF M 9-Serie 4 L- 1211108-004
ART.-NR. 1211108-004

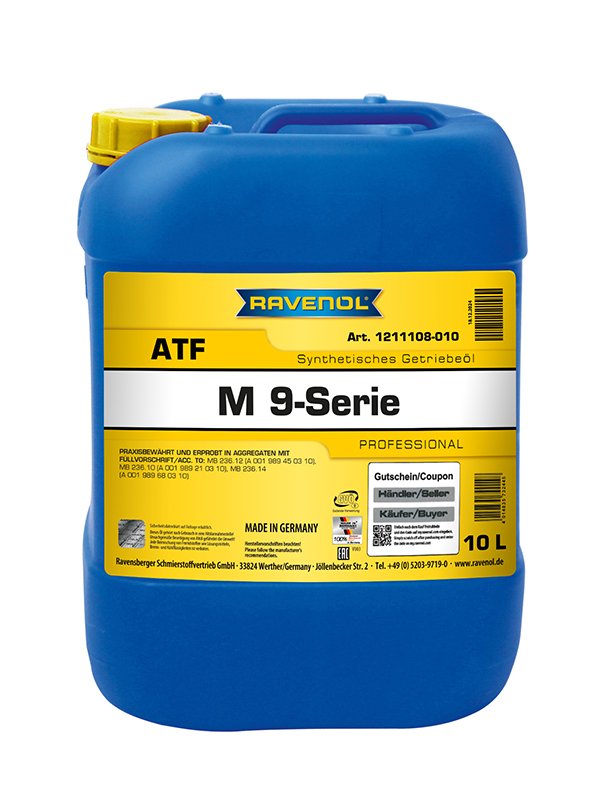

RAVENOL ATF M 9-Serie 10 L- 1211108-010
ART.-NR. 1211108-010

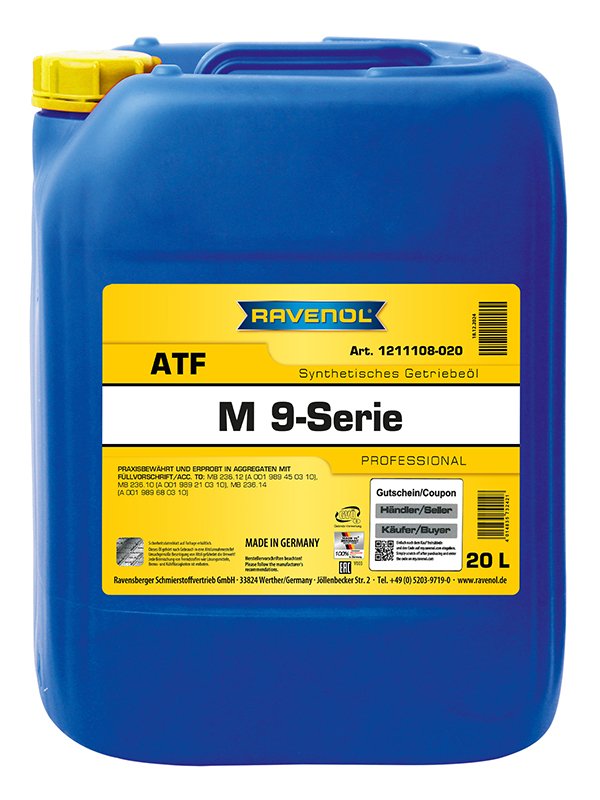

RAVENOL ATF M 9-Serie 20 L- 1211108-020
ART.-NR. 1211108-020

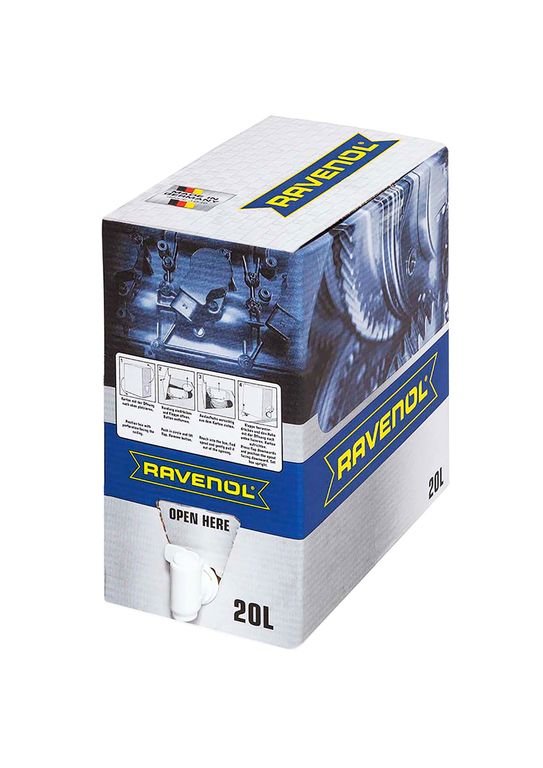

RAVENOL ATF M 9-Serie 20 L- 1211108-B20
ART.-NR. 1211108-B20

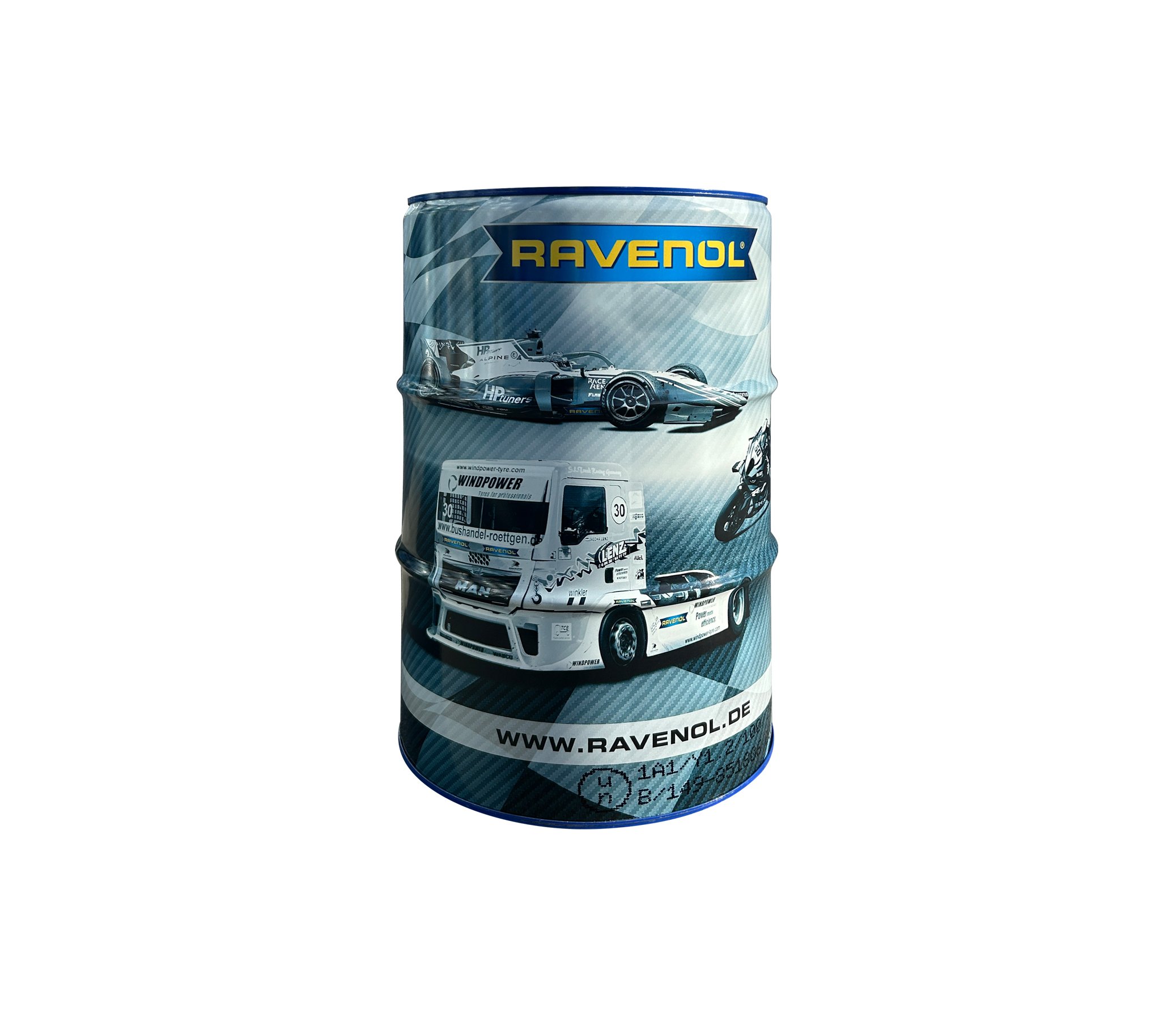

RAVENOL ATF M 9-Serie 60 L- 1211108-060
ART.-NR. 1211108-060

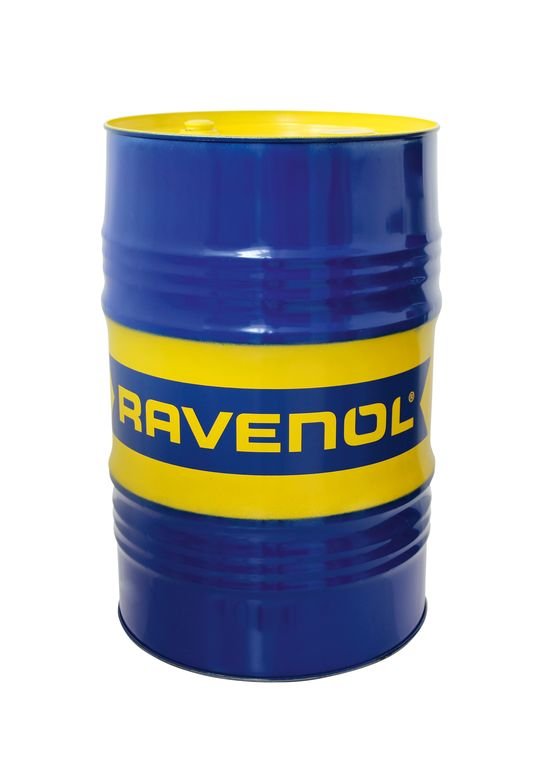

RAVENOL ATF M 9-Serie 60 L- 1211108-D60
ART.-NR. 1211108-D60

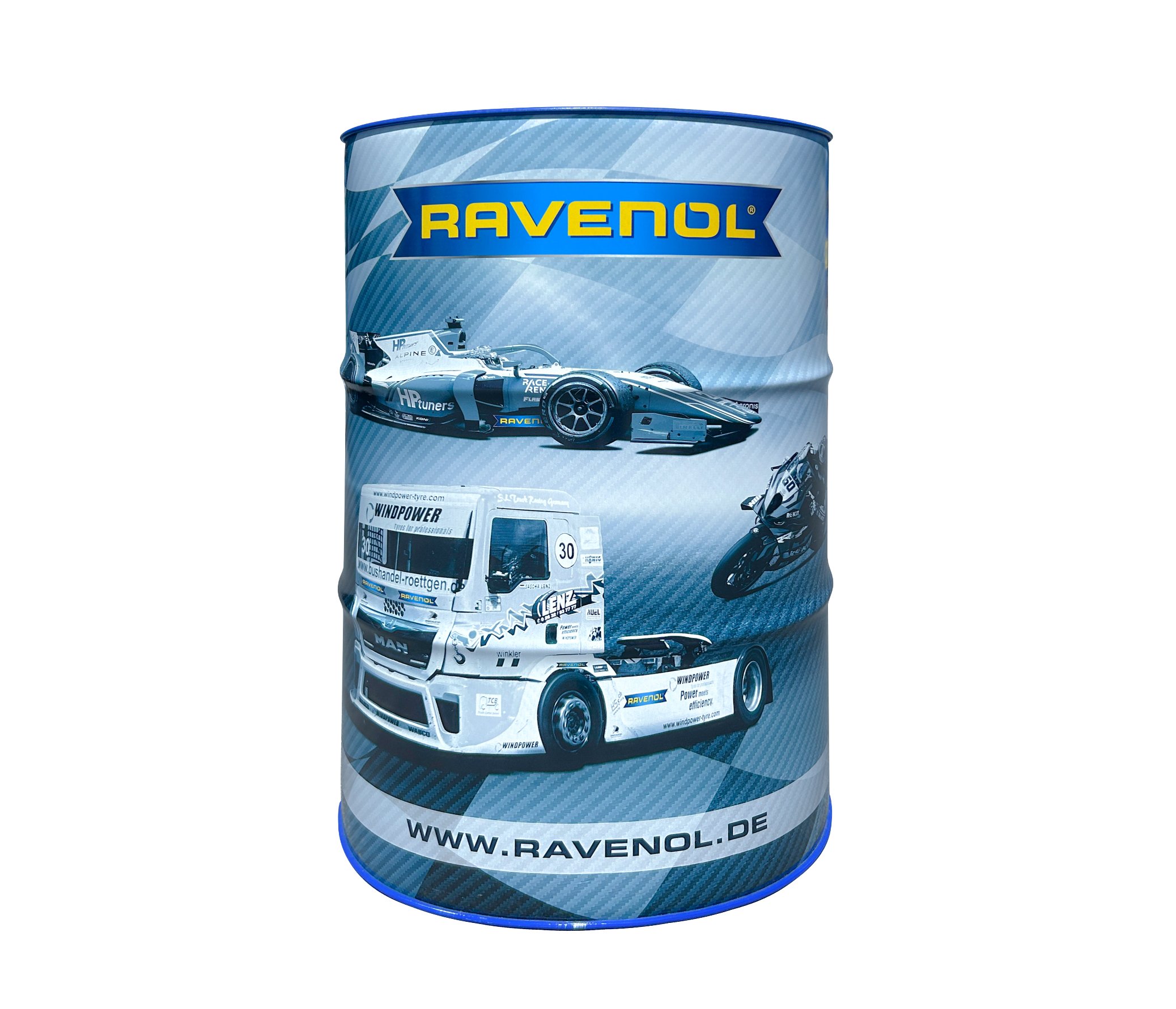

RAVENOL ATF M 9-Serie 208 L- 1211108-208
ART.-NR. 1211108-208

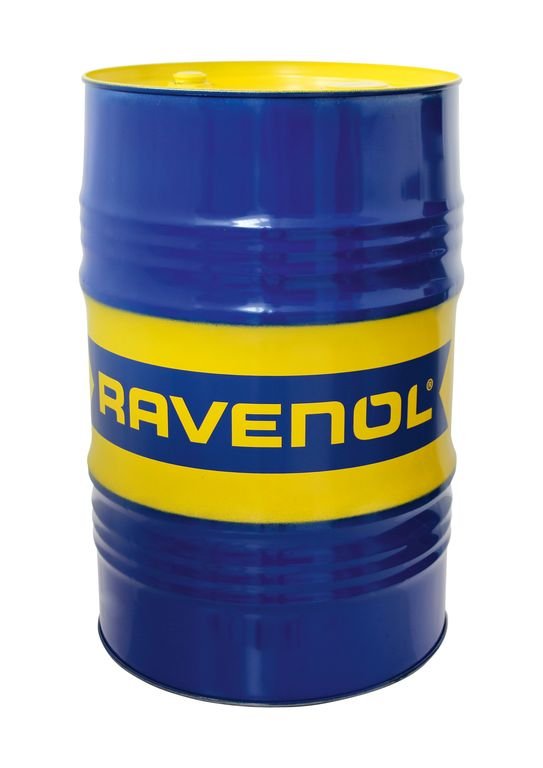

RAVENOL ATF M 9-Serie 208 L- 1211108-D28
ART.-NR. 1211108-D28

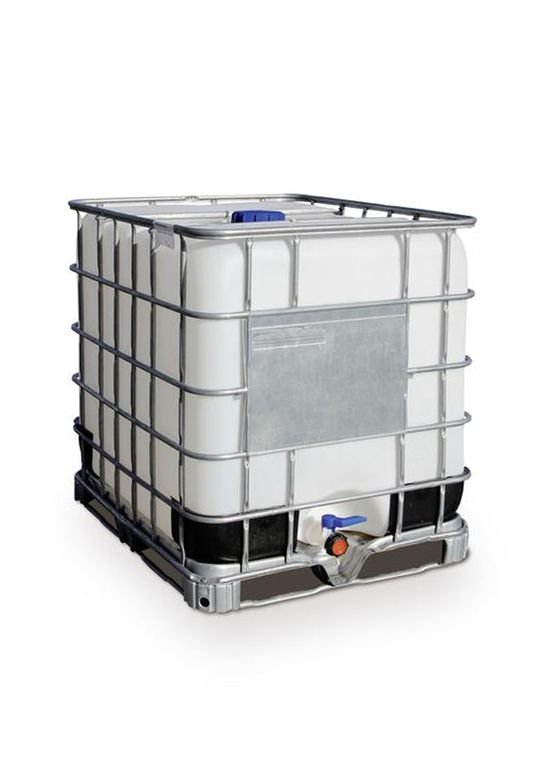

RAVENOL ATF M 9-Serie 1000 L- 1211108-700
ART.-NR. 1211108-700
  • 1 L | 1211108-001
  • 4 L | 1211108-004
  • 10 L | 1211108-010
  • 20 L | 1211108-020
  • 20 L | 1211108-B20
  • 60 L | 1211108-060
  • 60 L | 1211108-D60
  • 208 L | 1211108-208
  • 208 L | 1211108-D28
  • 1000 L | 1211108-700
Fabrication
synthetic
Approvals
MB-Approval 236.14 (001 989 68 03 10)
Categories
ATF-Transmission fluids for automatic transmissions - Professional line
Recommendations
MB 236.12 (001 989 45 03 10), MB 236.10 (001 989 21 03 10)

ATF Professional Line

RAVENOL ATF M 9-Serie is automatic transmission oil ATF, produced on the basis of hydrocrack oils and PAO with special additives and inhibition which guarantees a perfect function of the automatic transmission.

RAVENOL ATF M 9-Serie is one of the ATF (Automatic Transmission Fluid) of the newly developed generation for all 7-motion automatic transmission of Mercedes Benz. A maximum wear protection in every operating state is guaranteed.

Application Notes

RAVENOL ATF M 9-Serie was developed for use in the newly developed NAG2VSport transmission, 7G-Tronic (Template 722.9 / W7A 700 / NAG2), also for 5-gear transmission (Template 722.6 / W5A 580 / NAG1). It is backwardly compatible for all earlier versions of Mercedes-Benz 4- und 5-gear passenger car transmission (Template 722.3, 722.4, 722.5) in the exception of 5-motion CVT-Automatic transmission (Template 722.7 / FAG) of the A-Class (W168) and the Vaneo (W414).

Classifications

Characteristics

RAVENOL ATF M 9-Serie offers:

  • a very good lubricating ability even at low temperatures in winter
  • a high, stable viscosity index
  • a very low pour point
  • a very good oxidation stability
  • protection against corrosion and foam formation
  • good balanced coefficient of friction
  • a high thermal and oxidative stability
  • a exzellent cooling capacity
  • a exzellent shear stability
  • lowest evaporation losses
  • a neutral behaviour against sealing materials
  • a neutral behaviour because of inhibition against non ferrous metals
  • RAVENOL special transmission fluid is special development for special gear and cannot be selected on the basis of technical parameters (viscosity, etc.). Therefore the decision was made not to give technical data
  • Please note: RAVENOL special transmission fluid is exclusively to apply under the original number, as indicated in the product information. Not sure of the correct transmission fluid, you can ask your garage or the car dealer with respect to the original OEM gear type and number or consult our advisers. It must be specified the VIN code (Vehicle Identification Number) of your vehicle.
  • Misapplication of RAVENOL special transmission fluid can lead to malfunction of the transmission shifting problems, increased fuel consumption, unwanted slip behavior, etc. cause and cause the failure of the transmission.

  • Ravensberger Schmierstoffvertrieb GmbH does not liable for transmission failures in case of wrong selection of RAVENOL special transmission fluid.



PropertyUnitDataAudit
Density at 20°Ckg/m³844EN ISO 12185
Colourrotvisual
Pourpoint°C-54DIN ISO 3016
