RAVENOL Automatik-Getriebeöl ATF 5/4 HP Fluid

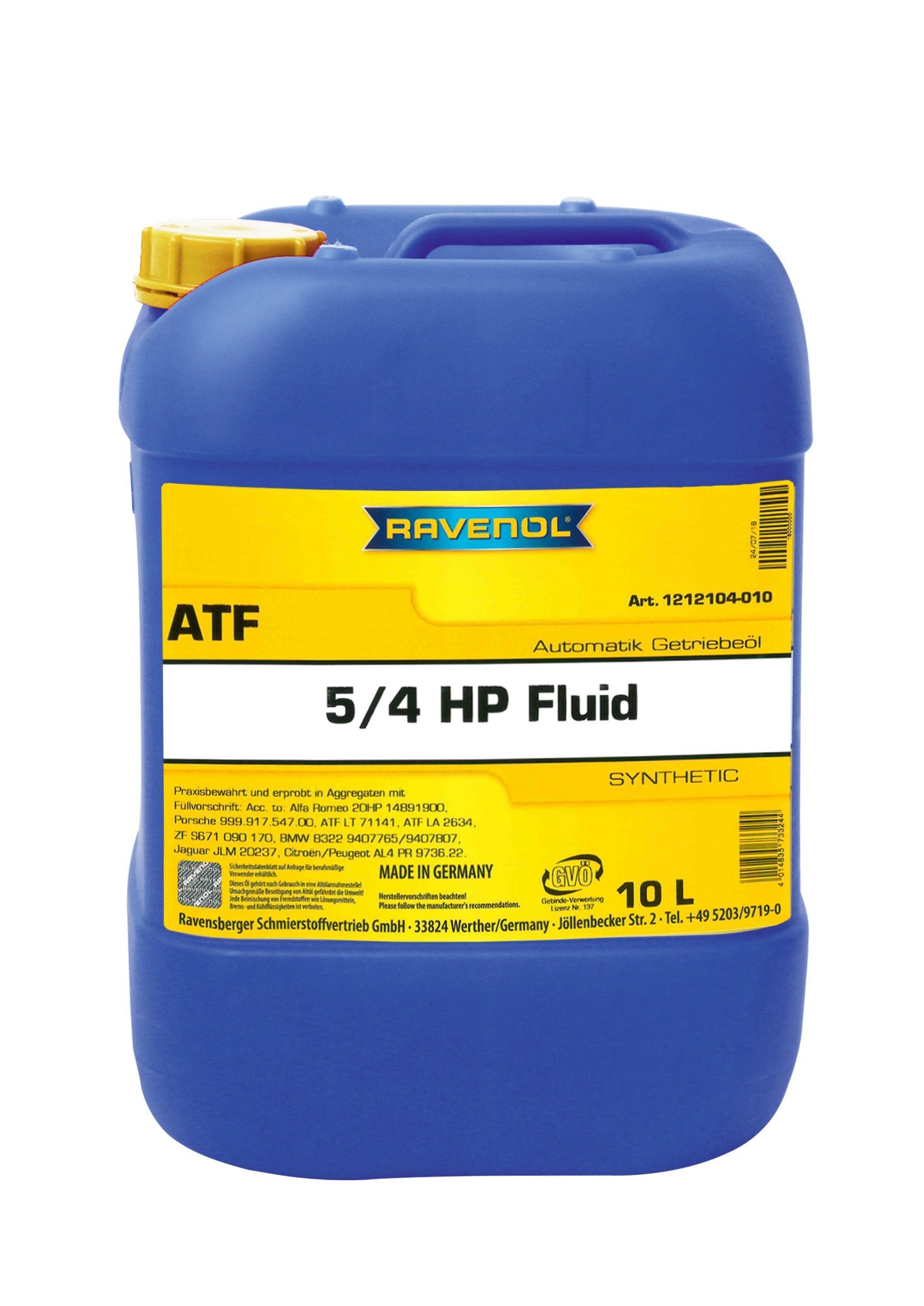

RAVENOL Automatik-Getriebeöl ATF 5/4 HP Fluid 10 L- 1212104-010 — ART.-NR. 1212104-010

RAVENOL Automatik-Getriebeöl ATF 5/4 HP Fluid 20 L- 1212104-020 — ART.-NR. 1212104-020

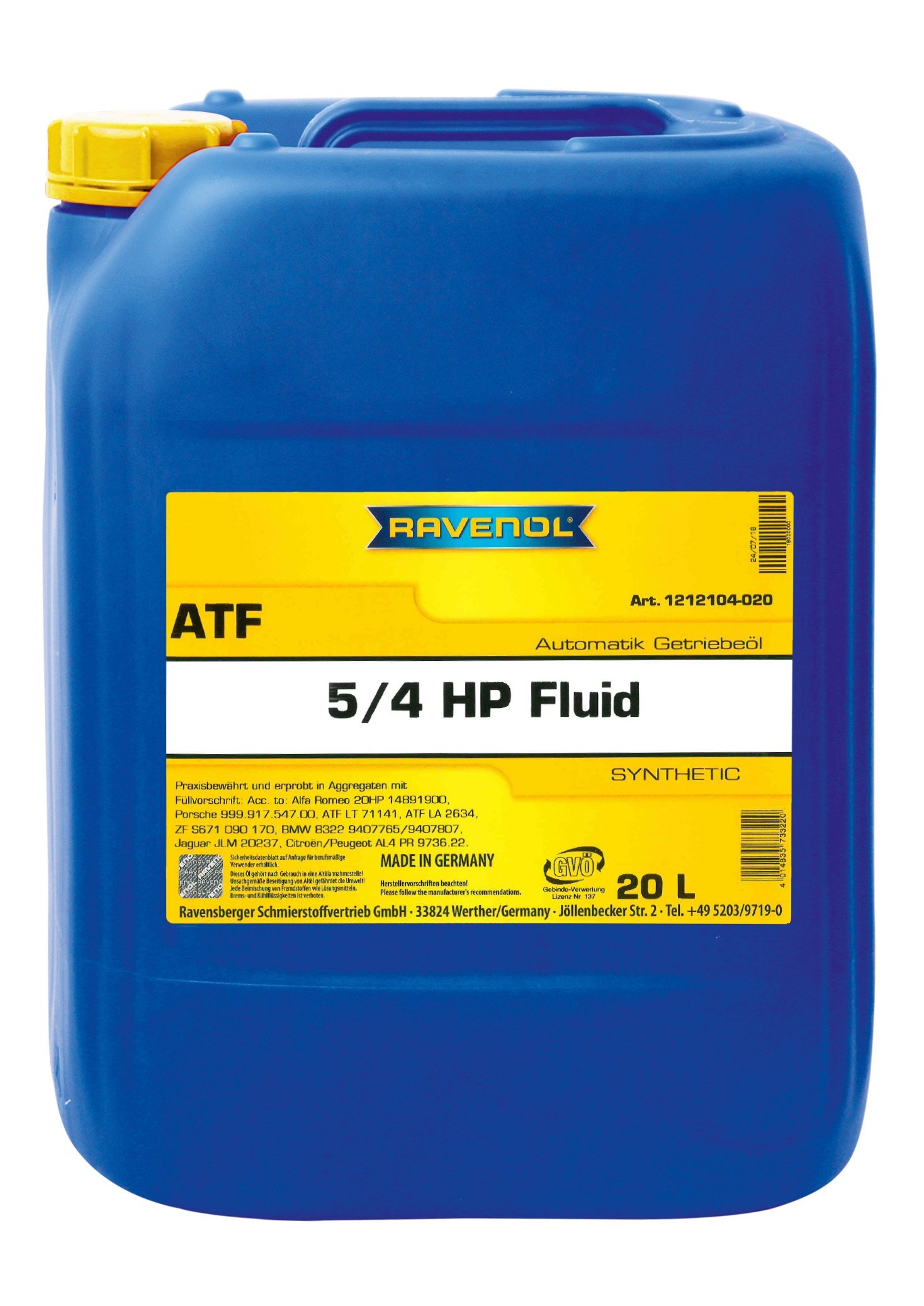

RAVENOL Automatik-Getriebeöl ATF 5/4 HP Fluid 20 L- 1212104-B20 — ART.-NR. 1212104-B20

RAVENOL Automatik-Getriebeöl ATF 5/4 HP Fluid 60 L- 1212104-060 — ART.-NR. 1212104-060

RAVENOL Automatik-Getriebeöl ATF 5/4 HP Fluid 60 L- 1212104-D60 — ART.-NR. 1212104-D60

RAVENOL Automatik-Getriebeöl ATF 5/4 HP Fluid 208 L- 1212104-208 — ART.-NR. 1212104-208

RAVENOL Automatik-Getriebeöl ATF 5/4 HP Fluid 208 L- 1212104-D28 — ART.-NR. 1212104-D28

RAVENOL Automatik-Getriebeöl ATF 5/4 HP Fluid 1000 L- 1212104-700 — ART.-NR. 1212104-700

Fabrication: synthetic
Categories: ATF-Transmission fluids for automatic transmissions - Professional line
Recommendations: Alfa Romeo 20HP 14891900; ATF LT 71141, ATF LA 2634; BMW 8322 9407765, BMW 8322 9407807; Citroën/Peugeot AL4 PR 9736.22; Jaguar JLM 20237; Land Rover STC4863; Mercedes A 0019892203; Porsche 999.917.547.00; Renault DP0; VW/Audi G052162 A1/ A2/ A6, VW TL 52 162; ZF S671 090 170

ATF Professional Line

RAVENOL ATF 5/4 HP Fluid is a synthetic ATF (Automatic Transmission Fluid), designed on the basis of high quality hydrocrack oils with a special additive and inhibition, which ensure a perfect function of the automatic transmission.

RAVENOL ATF 5/4 HP Fluid is ATF (Automatic Transmission Fluid) for all 4- and 5 stroke automatic transmissions of ZF. It guarantees in any mode for maximum wear protection.

RAVENOL ATF 5/4 HP Fluid is neutral brown colored.

Application Notes

RAVENOL ATF 5/4 HP Fluid is suitable for use in automatic transmission of ZF Serie 4 HP (4HP20, 4HP22, 4HP24) und 5HP (5HP18, 5HP19, 5HP24, 5HP30). Maintenance-filling under normal operating conditions.

Characteristics

RAVENOL ATF 5/4 HP Fluid offers:

Very good lubricating ability even at low temperatures in winter
A high, stable viscosity index
Very good oxidation stability
Protection against corrosion and foam formation
Good balanced coefficient of friction
A high thermal and oxidative stability
An excellent cooling capacity.

Property	Unit	Data	Audit
Density at 20°C	kg/m³	849,0	EN ISO 12185
Colour		yellow brown	visual
Pourpoint	°C	-45	DIN ISO 3016
