RAVENOL Getriebeoel EPX SAE 140 GL4/GL5

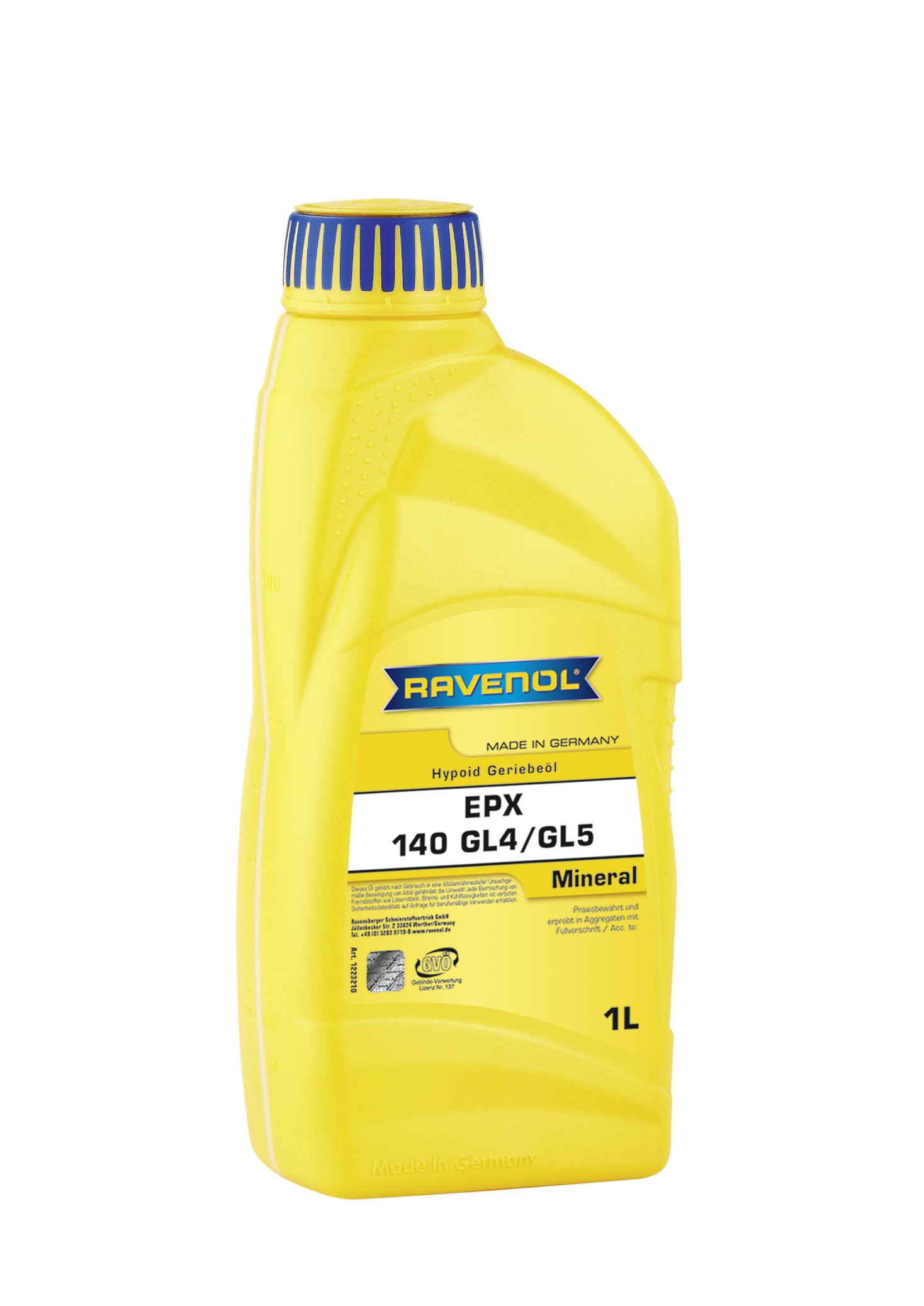

RAVENOL Getriebeoel EPX SAE 140 GL4/GL5 1 L- 1223210-001
ART.-NR. 1223210-001

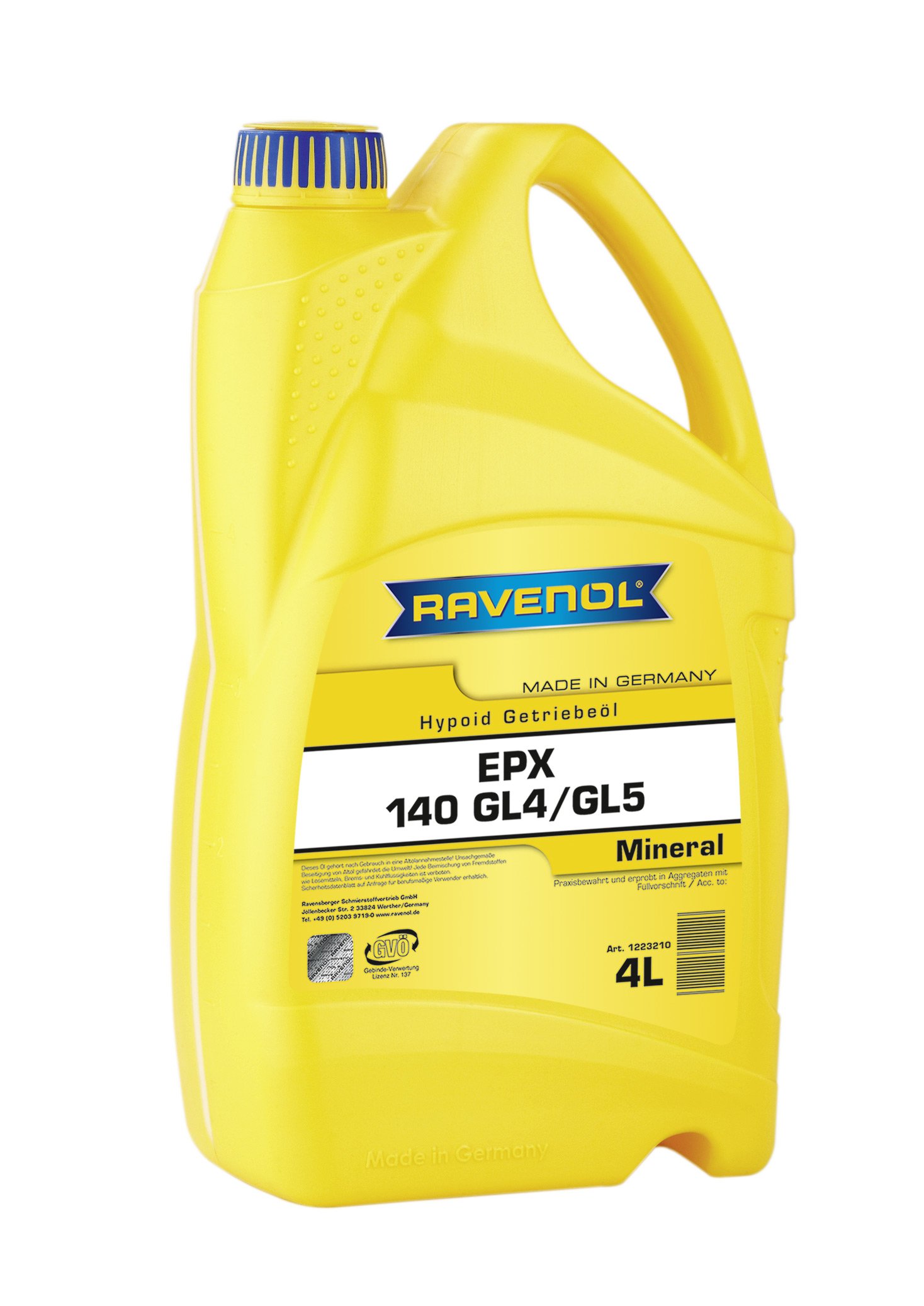

RAVENOL Getriebeoel EPX SAE 140 GL4/GL5 4 L- 1223210-004
ART.-NR. 1223210-004

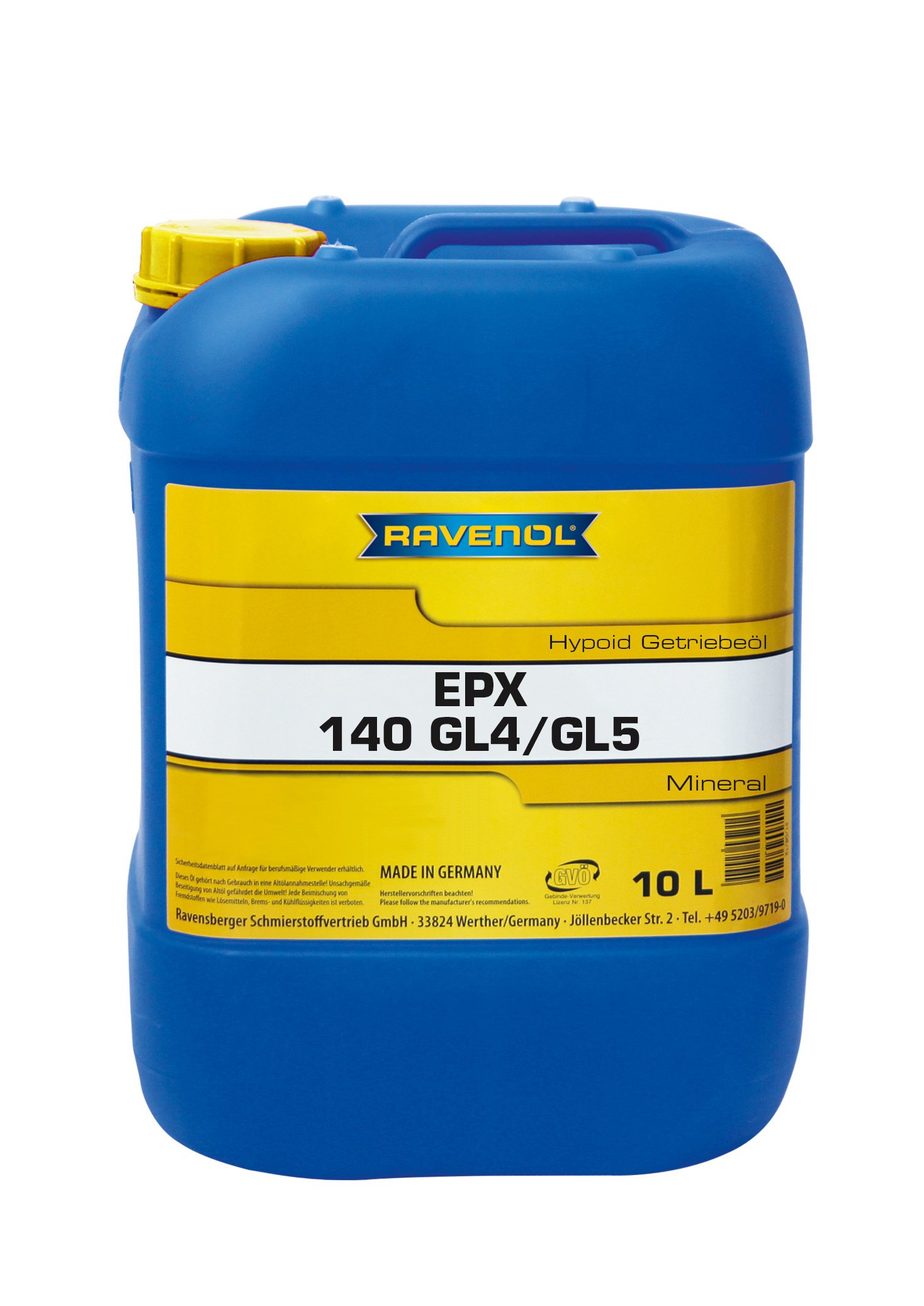

RAVENOL Getriebeoel EPX SAE 140 GL4/GL5 10 L- 1223210-010
ART.-NR. 1223210-010

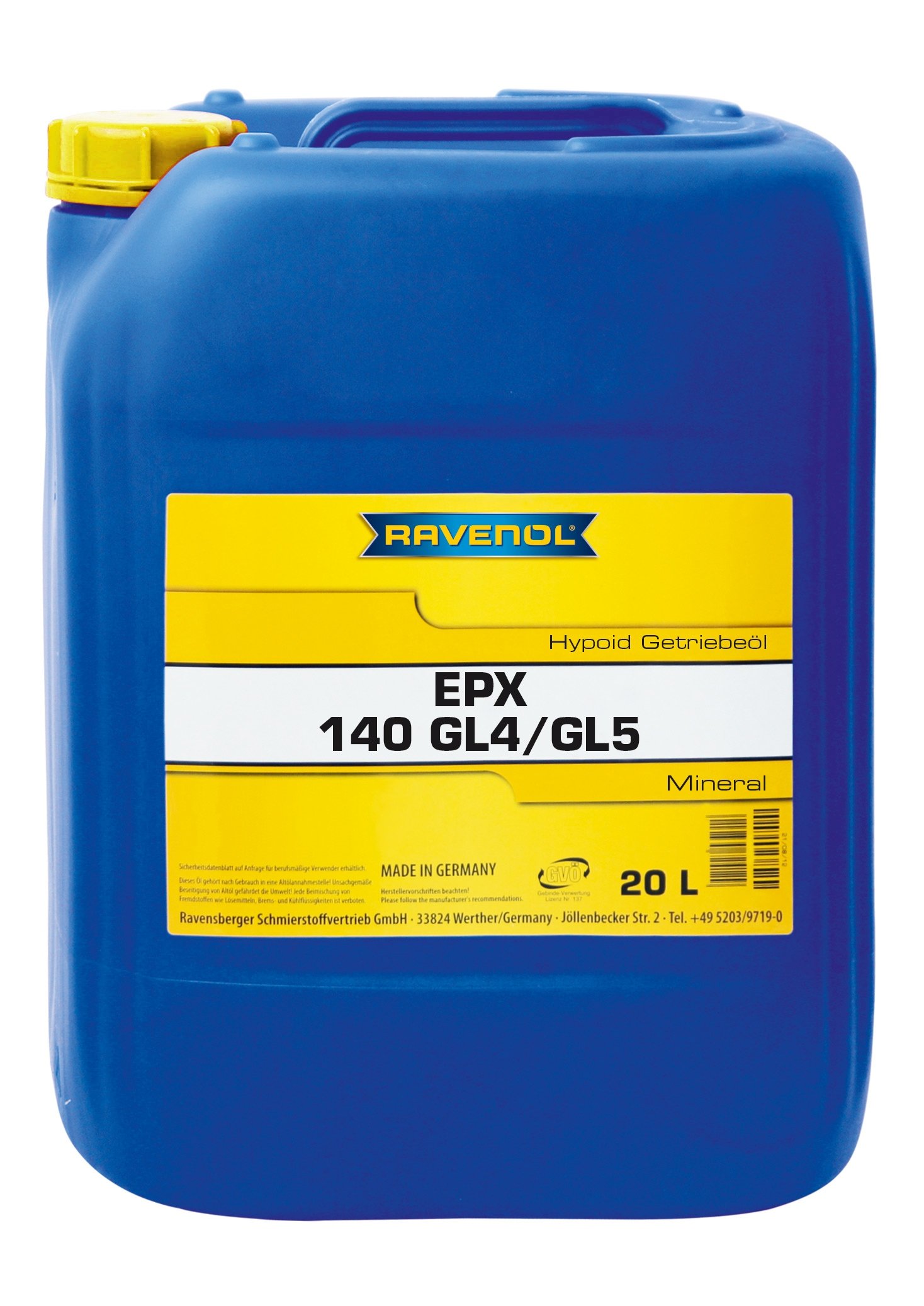

RAVENOL Getriebeoel EPX SAE 140 GL4/GL5 20 L- 1223210-020
ART.-NR. 1223210-020
RAVENOL Getriebeoel EPX SAE 140 GL4/GL5 20 L- 1223210-B20
ART.-NR. 1223210-B20
RAVENOL Getriebeoel EPX SAE 140 GL4/GL5 1000 L- 1223210-700
ART.-NR. 1223210-700
  • 1 L | 1223210-001
  • 4 L | 1223210-004
  • 10 L | 1223210-010
  • 20 L | 1223210-020
  • 20 L | 1223210-B20
  • 1000 L | 1223210-700
Specifications
API GL-5
API GL-4
Fabrication
mineral
Categories
Gear oils for manual transmissions
Recommendations
ZF TE-ML 05A
ZF TE-ML 7A
ZF TE-ML 17B
CS 3000B
Ford M2C-9002A
GM

Monograde hypoid transmission oil for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery.

RAVENOL Getriebeoel EPX SAE 140 GL4/GL5 is a lubricating oil for mechanical transmissions based on high quality base oils and additives that are a balanced combination of active ingredients. Special high-pressure (EP) agents and other additives offer excellent wear protection even under severe operating conditions.

Application Notes

RAVENOL Getriebeoel EPX SAE 140 GL4/GL5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as an extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.


Characteristics

RAVENOL Getriebeoel EPX SAE 140 GL4/GL5 offers:

  • good adhesion and pressure resistant lubricating film
  • excellent oxidation stability
  • exceptional viscosity-temperature behaviour
  • a low pour point
  • excellent protection against rust and corrosion
  • enhanced wear-inhibiting effect
  • a good foam-resistant composition
  • compatible with all types of metals and sealing materials
PropertyUnitDataAudit
Density at 20°Ckg/m³894,0EN ISO 12185
Colourbraunvisual
Viscosity at 100°Cmm²/s26,0DIN 51562-10
Viscosity at 40°Cmm²/s352,0DIN 51562-10
Viscosity index VI97DIN ISO 2909
Brookfield ViscositymPa*s55.000ASTM D 2983
Pourpoint°C-21DIN ISO 3016
Flash point (COC)°C222DIN ISO 2592
Copper Strip Test1bASTM D130
