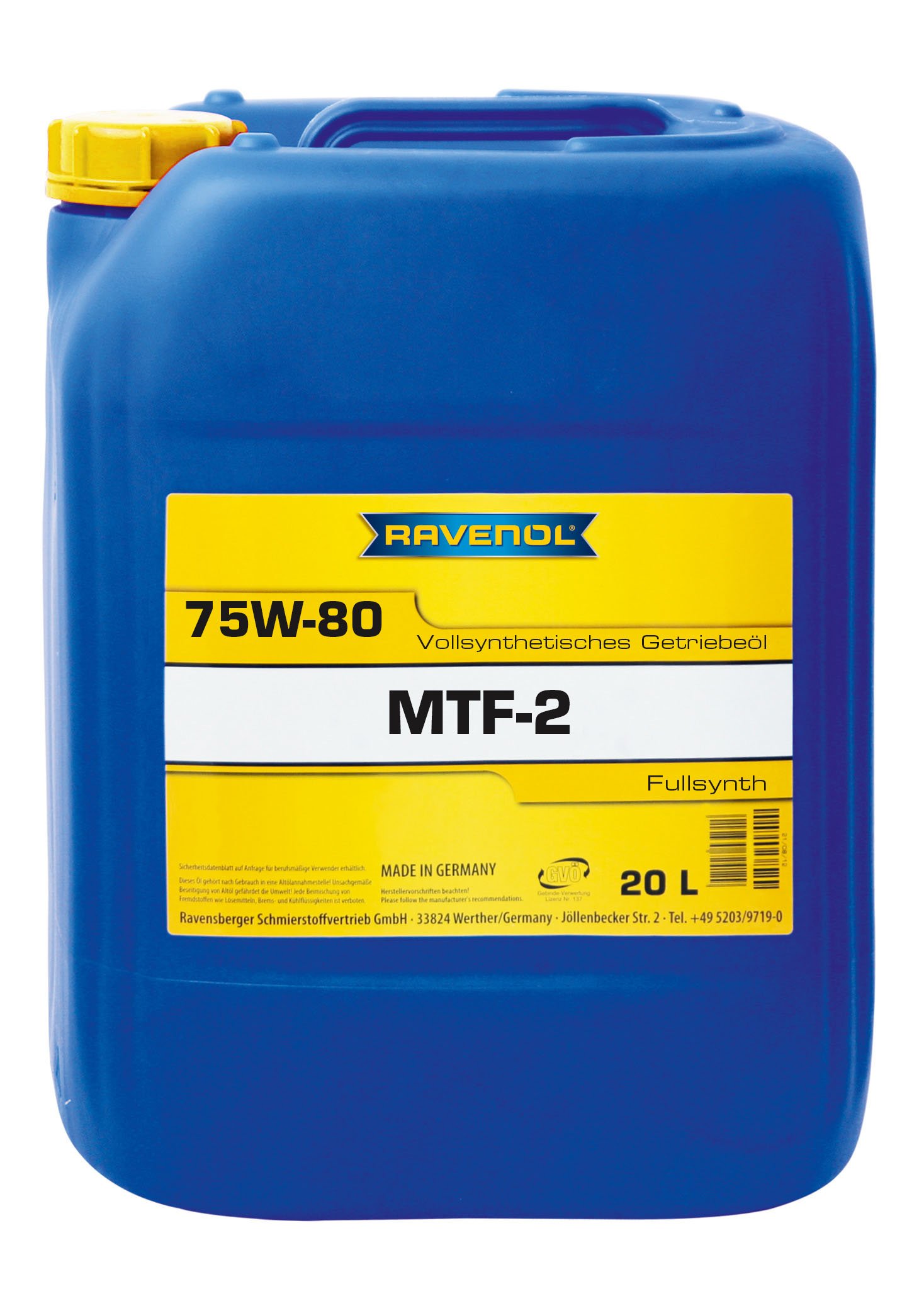

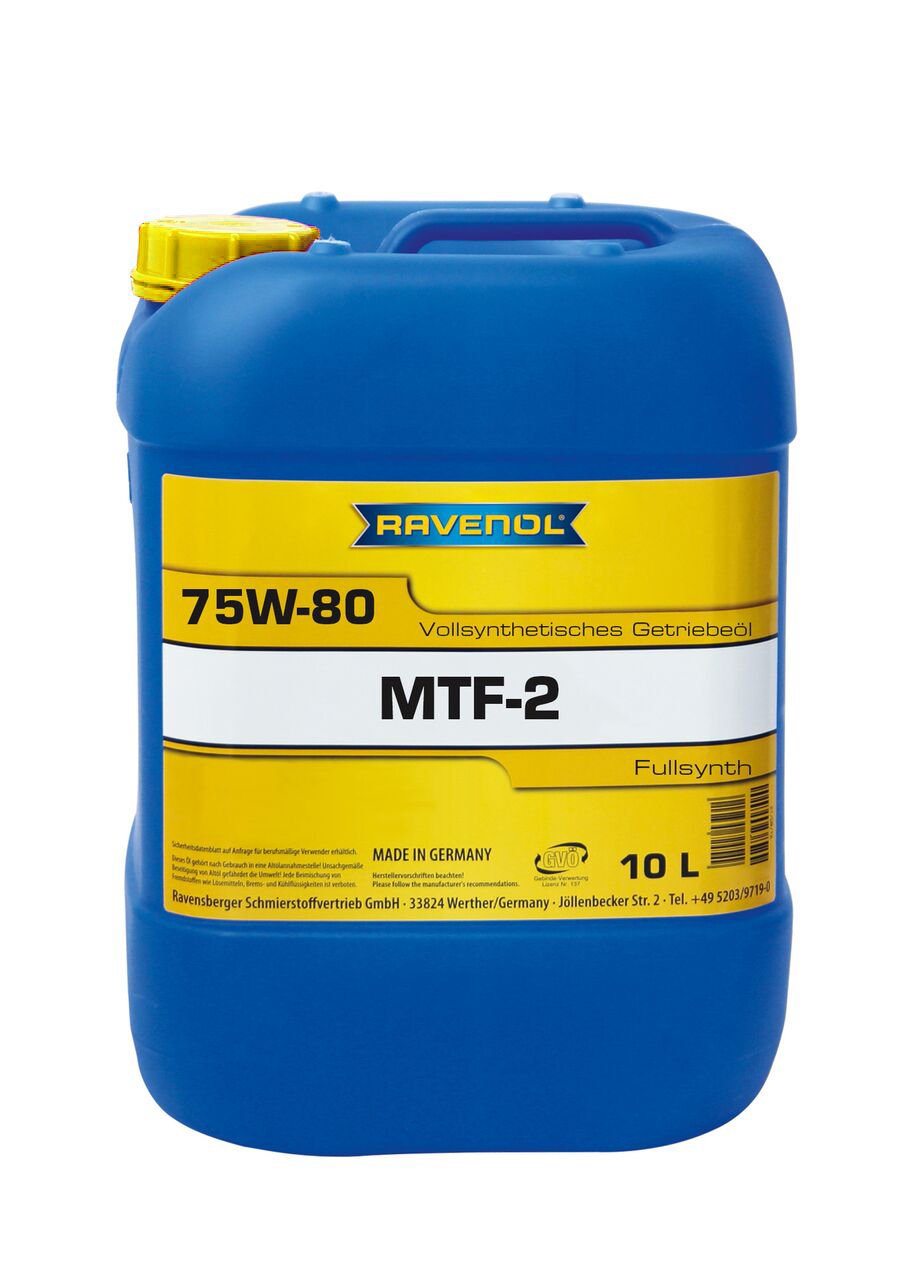

RAVENOL MTF-2 SAE 75W-80

Category: Gear oil for manual transmissions and drive axis
Item number: 1221103
Viscosity: 75W-80
Specification: API GL-4, API MT-1
Oil type: Full synthetic
Application: Passenger car

RAVENOL MTF-2 SAE 75W-80 is a PAO based full synthetic low-viscosity transmission oil for modern manual transmission.

RAVENOL MTF-2 SAE 75W-80 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL MTF-2 SAE 75W-80 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.

Application Note

RAVENOL MTF-2 SAE 75W-80 is a full synthetic transmission oil for manual transmissions.

Characteristics

  • A high-pressure stable lubricating film even at high oil temperatures and under high stress.
  • Outstanding shearing stability and excellent thermal stability.
  • Excellent viscosity-temperature properties.
  • High oxidation stability.
  • Excellent wear protection, outstanding EP properties.
  • Low foaming property even at high speeds
  • Good shifting behaviour even in low temperatures, extremely low pour point.
  • Extended life.

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³838,0EN ISO 12185
ColourgelbbraunVISUELL
Viscosity at 100 °Cmm²/s7,4DIN 51562-1
Viscosity at 40 °Cmm²/s35,1DIN 51562-1
Viscosity Index VI184DIN ISO 2909
Brookfield Viscosity at -40 °CmPa*s8.800ASTM D2983
Pourpoint°C-51DIN ISO 3016
Flashpoint°C204DIN EN ISO 2592
Copper Strip Test at 121 °C1bASTM D130

All indicated data are approximate values and are subject to the commercial fluctuations.

RAVENOL special transmission fluids are special developments for special gears and cannot be selected on the basis of technical parameters (viscosity, etc.). Therefore the decision was made not to give technical data. Please note: RAVENOL special transmission fluid is exclusively to apply under the original number, as indicated in the product information. If you are unsure about the right transmission fluid, ask your workshop or dealership for advice on the transmission type and OEM original number or ask our experts, making sure to state the VIN code (vehicle identification number) of your vehicle. Misapplication of RAVENOL special transmission fluid can lead to malfunction of the transmission shifting problems, increased fuel consumption, unwanted slip behavior, etc. and cause the failure of the transmission. Ravensberger Schmierstoffvertrieb GmbH is not liable for transmission failures in case of wrong selection of RAVENOL special transmission fluid.
