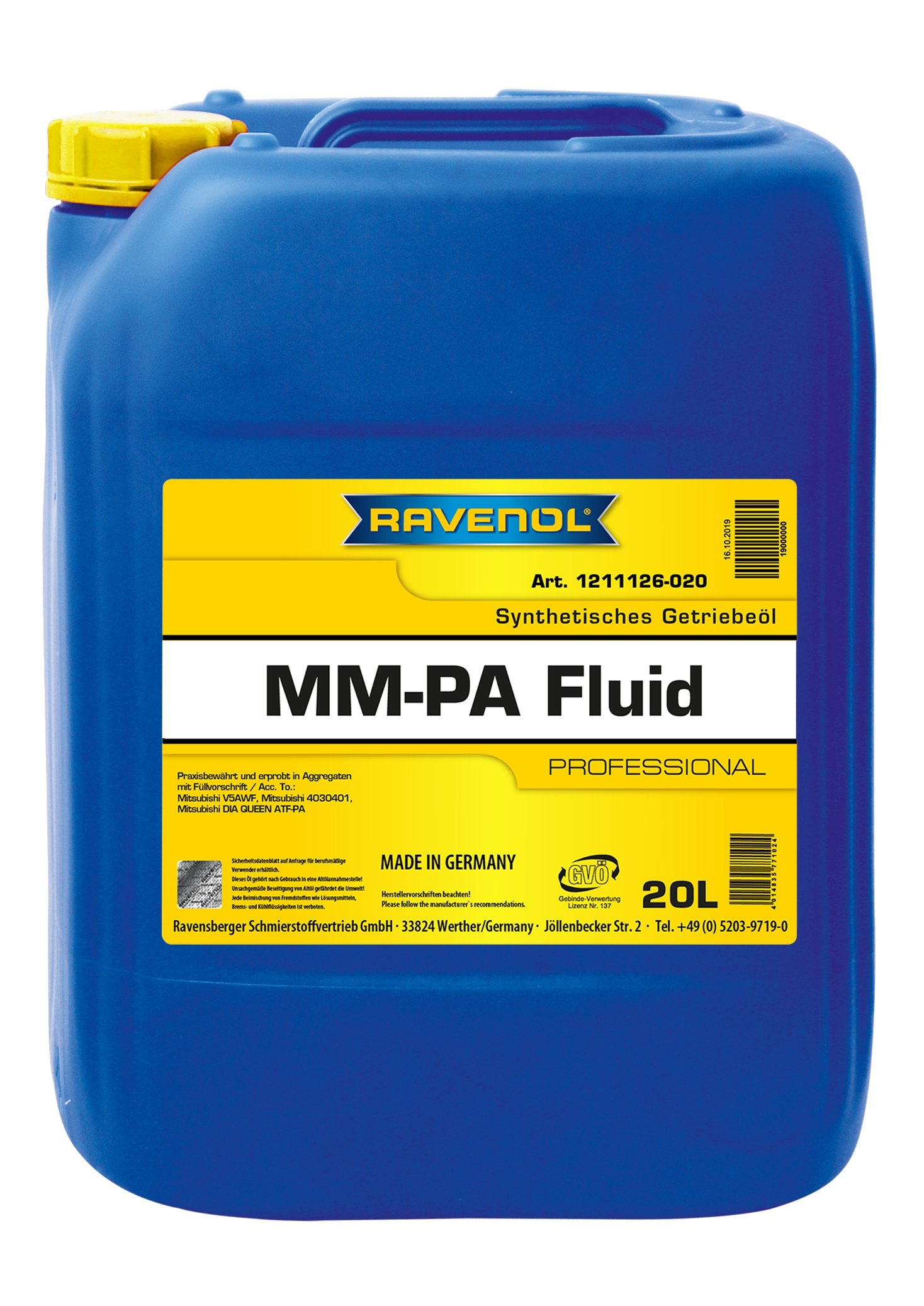

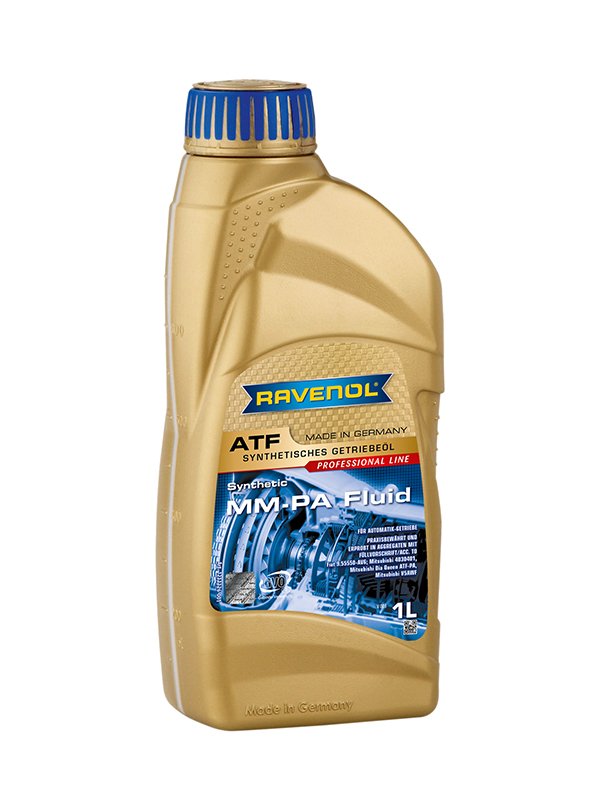

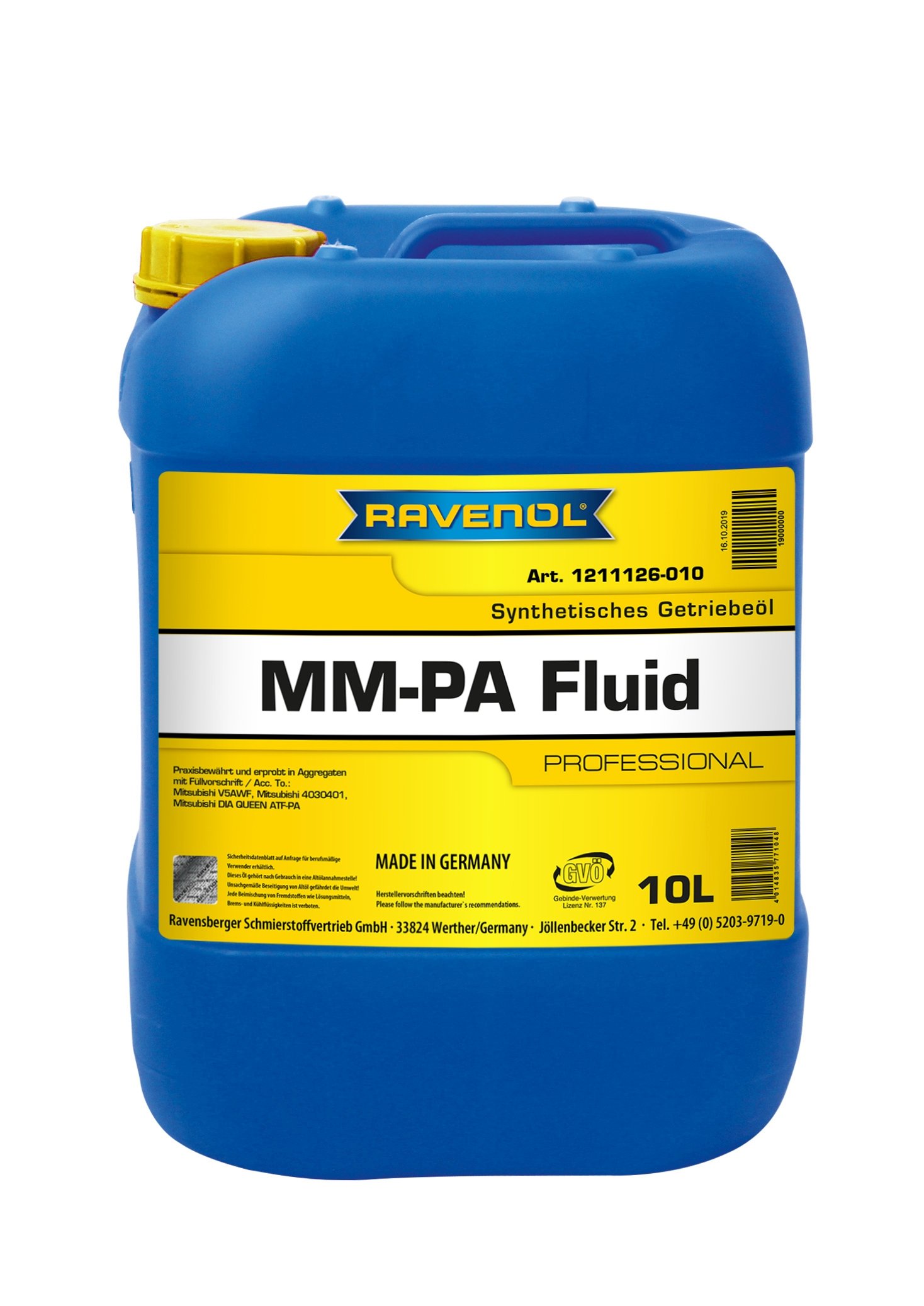

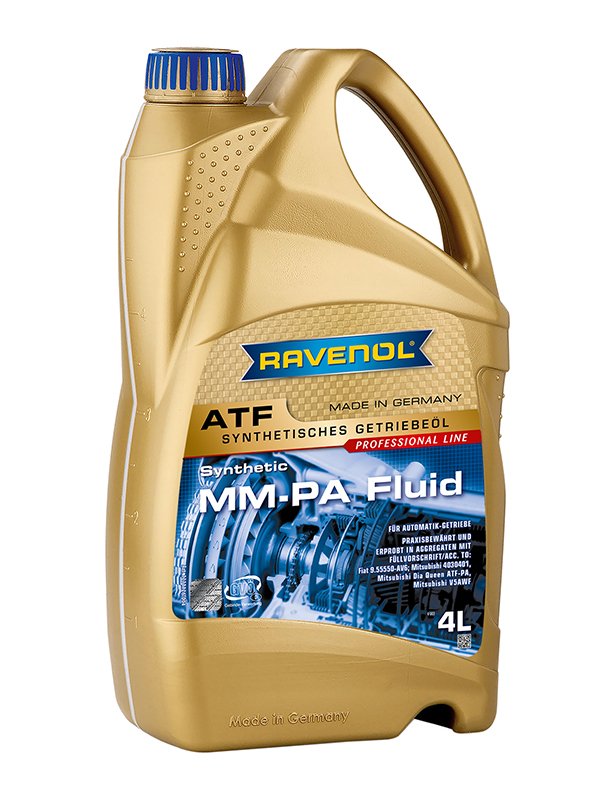

RAVENOL ATF MM-PA Fluid

Category: Gear oil for automatic transmissions
Item number: 1211126
Oil type: Synthetic
Application: Passenger car

RAVENOL ATF MM-PA Fluid is a synthetic ATF (Automatic Transmission Fluid), designed on the basis of high quality hydrocrack oils with a special additive and inhibition, which ensure a perfect function of the automatic transmission.

Due to its special formulation the properties of RAVENOL ATF MM-PA Fluid are crucial. We assure an excellent cold stability.

Application Note

RAVENOL ATF MM-PA Fluid is a special fluid for use in automatic transmissions of Mitsubishi V5AWF.

Characteristics

  • Extremely low pour point
  • Improved viscosity and coefficient of friction behaviour
  • A very good protection against consumption
  • Excellent thermal stability
  • Improved EP-characteristics
  • A good foaming behaviour
  • Neutral behaviour towards sealing materials
  • Reliable protection against corrosion

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³838,0EN ISO 12185
ColourrotVISUELL
Pourpoint°C-54DIN ISO 3016

All indicated data are approximate values and are subject to the commercial fluctuations.

RAVENOL special transmission fluids are special developments for special gears and cannot be selected on the basis of technical parameters (viscosity, etc.). Therefore the decision was made not to give technical data. Please note: RAVENOL special transmission fluid is exclusively to apply under the original number, as indicated in the product information. If you are unsure about the right transmission fluid, ask your workshop or dealership for advice on the transmission type and OEM original number or ask our experts, making sure to state the VIN code (vehicle identification number) of your vehicle. Misapplication of RAVENOL special transmission fluid can lead to malfunction of the transmission shifting problems, increased fuel consumption, unwanted slip behavior, etc. and cause the failure of the transmission. Ravensberger Schmierstoffvertrieb GmbH is not liable for transmission failures in case of wrong selection of RAVENOL special transmission fluid.
