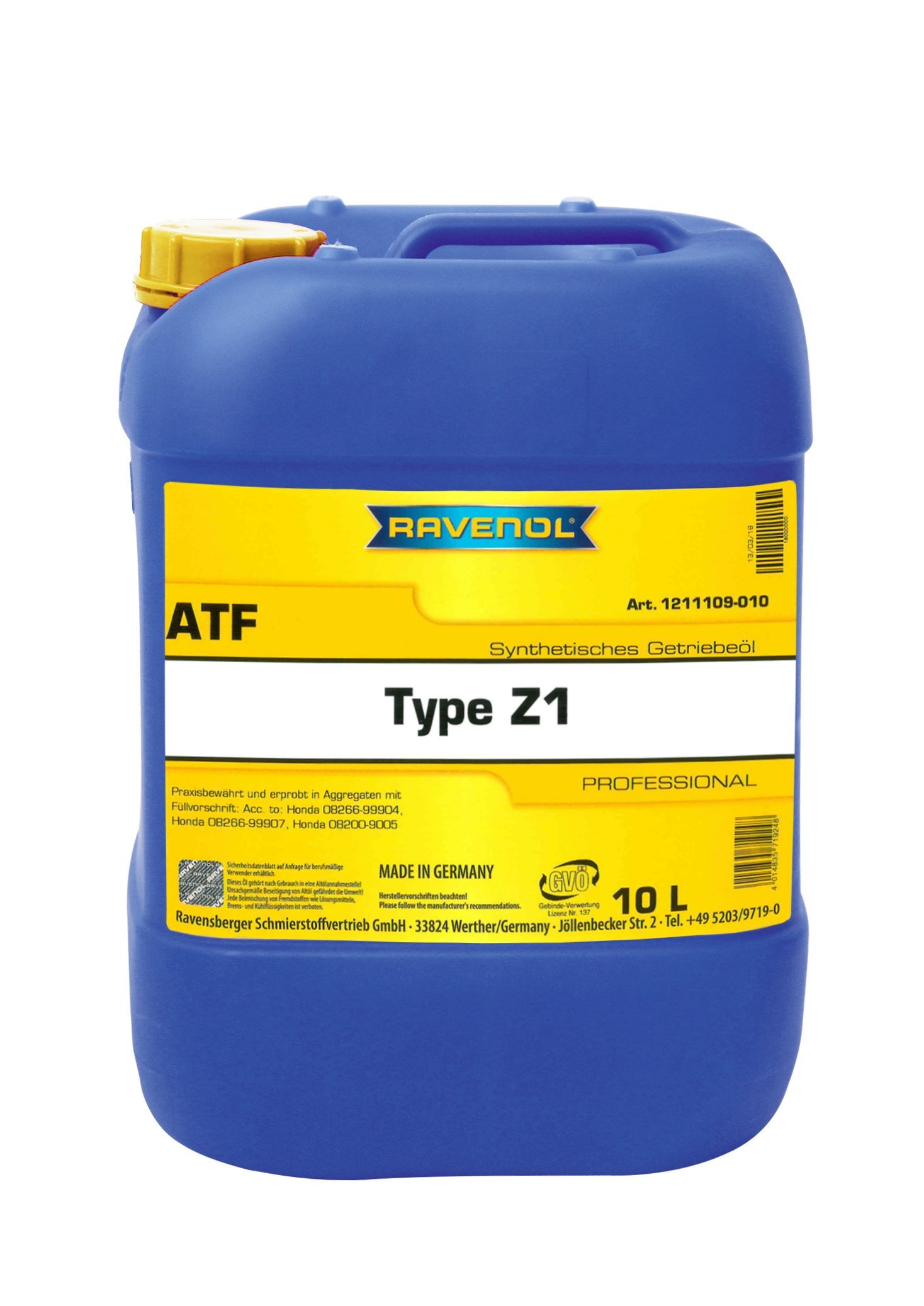

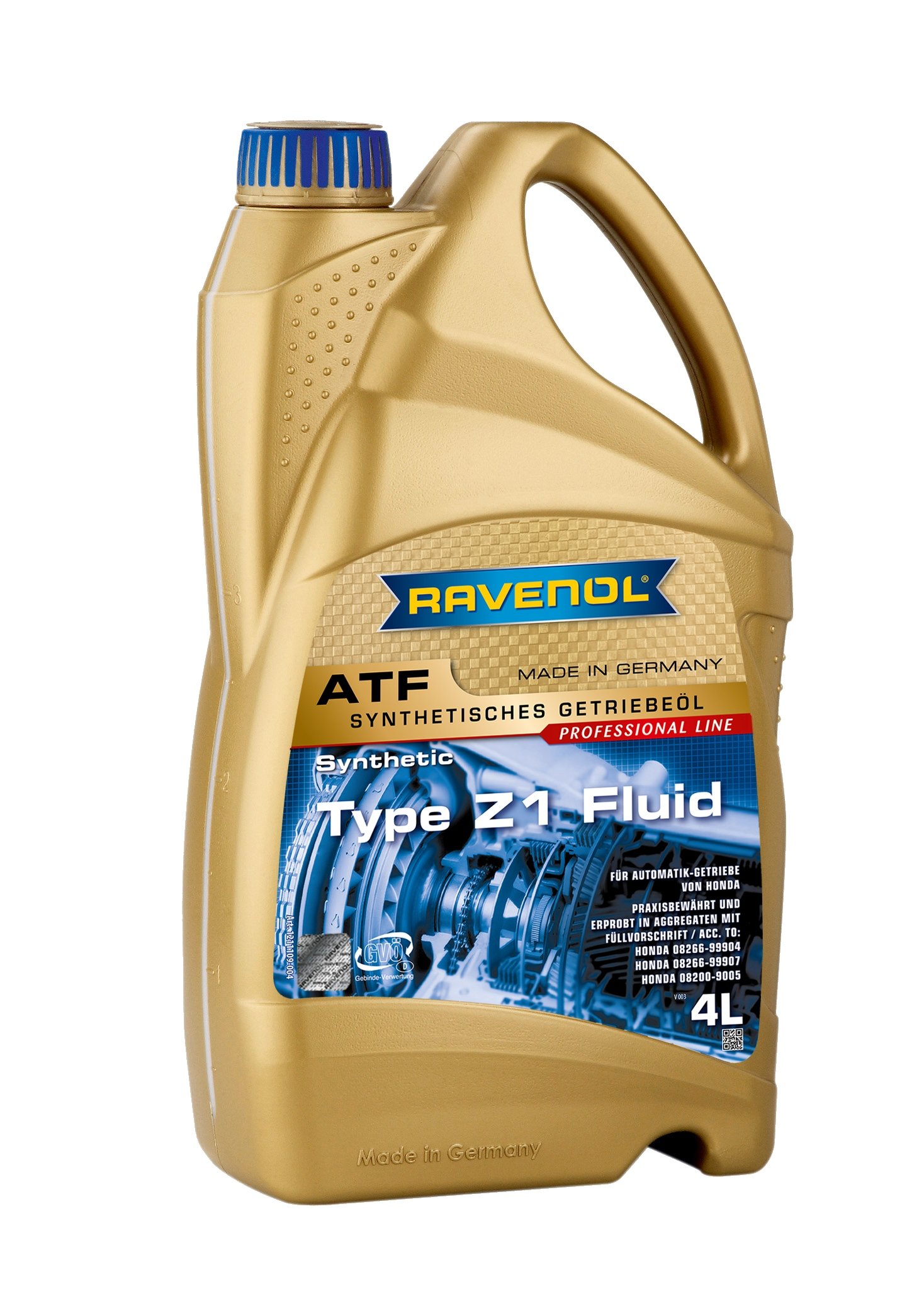

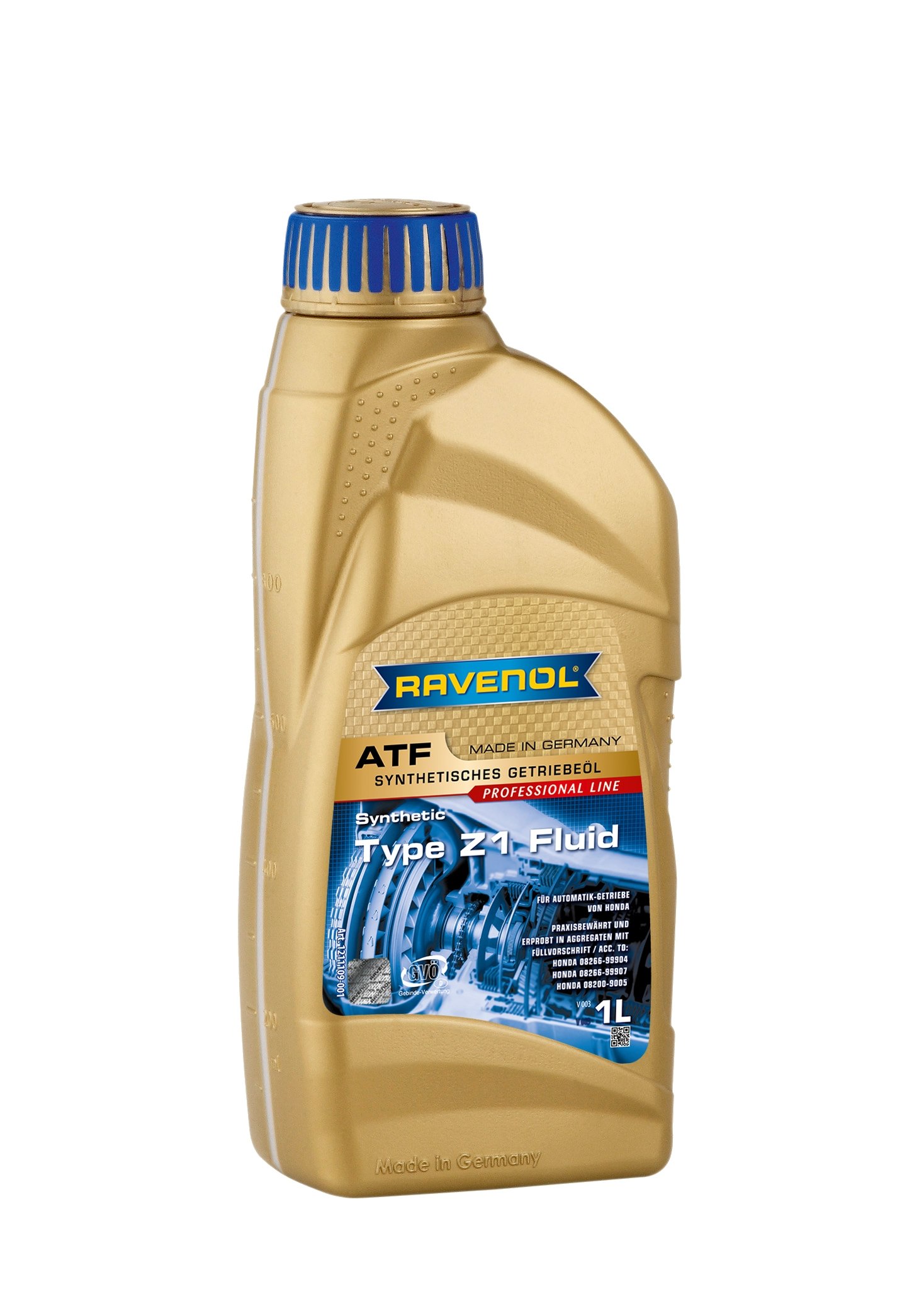

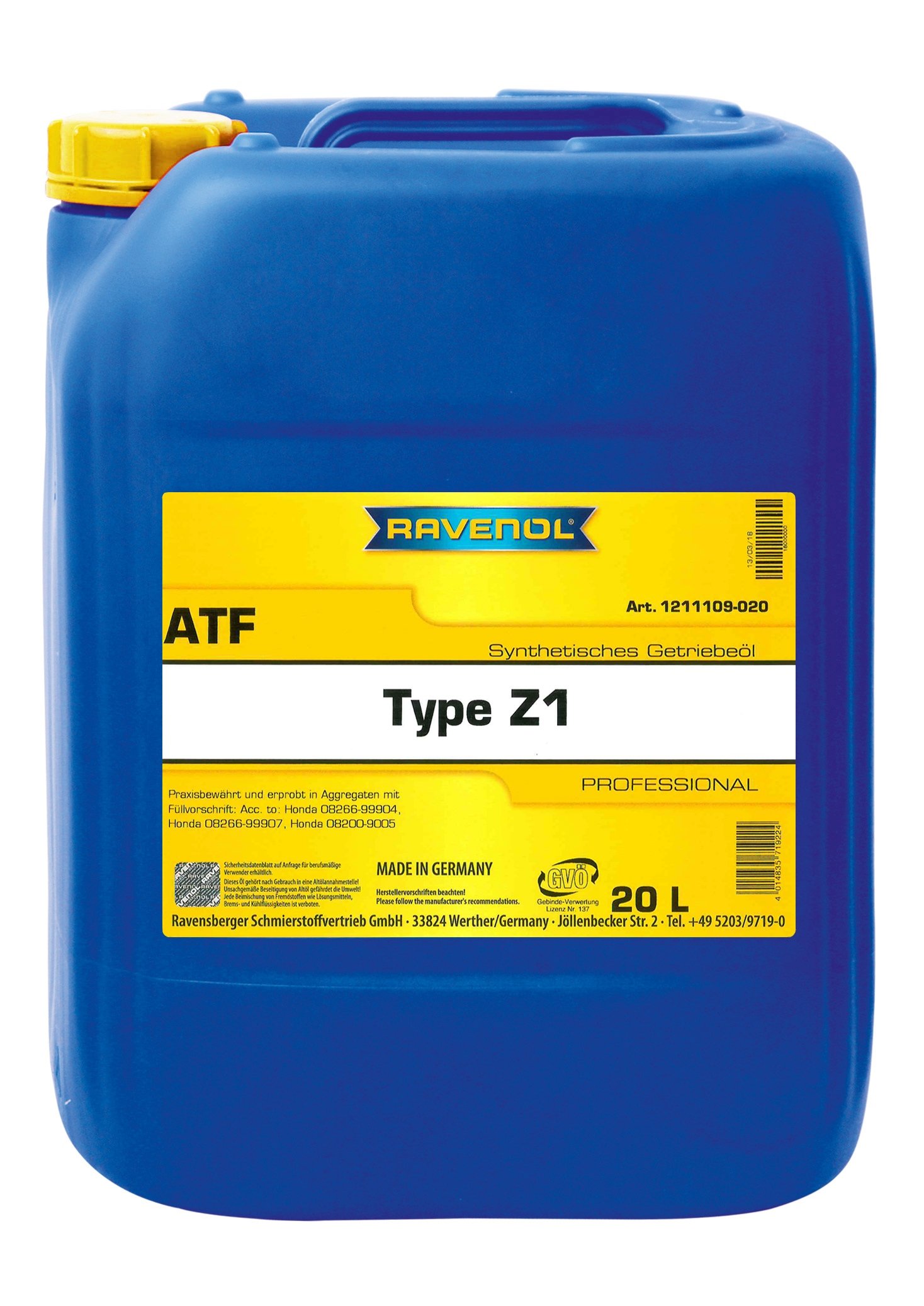

RAVENOL ATF Type Z1 Fluid

Category: Gear oil for automatic transmissions
Item number: 1211109
Oil type: Synthetic
Application: Passenger car

RAVENOL ATF Type Z1 Fluid is synthetic ATF (Automatic Transmission Fluid) based on high-quality hydrocrack oils with special additives and inhibition which guarantee a perfect function of the automatic transmission.

RAVENOL ATF Type Z1 Fluid is ATF (Automatic Transmission Fluid) of latest generation for all 4- and 5-stroke transmission of Honda. It guarantees in any mode for maximum wear protection.

RAVENOL ATF Type Z1 Fluid is red coloured.

Application Note

RAVENOL ATF Type Z1 Fluid was developed for the use in automatic transmissions especially for Honda (BMXA, SLXA, SPCA, BDRA, SMLA, SDMA, MZHA, MZJA, MKZA, GPPA, BAYA, MAYA, SMMA and others).Maintenance-filling under normal operating conditions.

Characteristics

  • Very good lubricating ability even at low temperatures in winter
  • A high, stable viscosity index
  • Very good oxidation stability
  • Protection against corrosion and foam formation
  • Good balanced coefficient of friction
  • A high thermal and oxidative stability
  • An excellent cooling capacity

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³838,0EN ISO 12185
ColourrotVISUELL
Pourpoint°C-54DIN ISO 3016

All indicated data are approximate values and are subject to the commercial fluctuations.

RAVENOL special transmission fluids are special developments for special gears and cannot be selected on the basis of technical parameters (viscosity, etc.). Therefore the decision was made not to give technical data. Please note: RAVENOL special transmission fluid is exclusively to apply under the original number, as indicated in the product information. If you are unsure about the right transmission fluid, ask your workshop or dealership for advice on the transmission type and OEM original number or ask our experts, making sure to state the VIN code (vehicle identification number) of your vehicle. Misapplication of RAVENOL special transmission fluid can lead to malfunction of the transmission shifting problems, increased fuel consumption, unwanted slip behavior, etc. and cause the failure of the transmission. Ravensberger Schmierstoffvertrieb GmbH is not liable for transmission failures in case of wrong selection of RAVENOL special transmission fluid.
