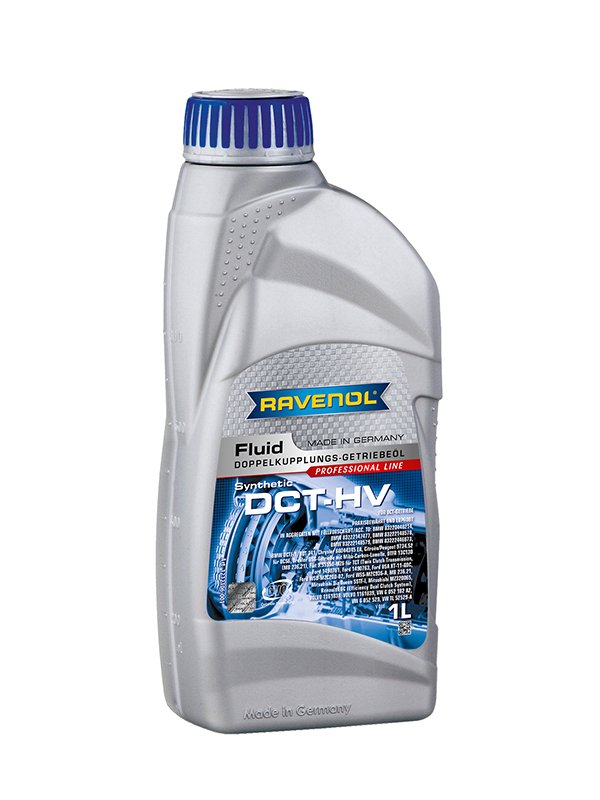

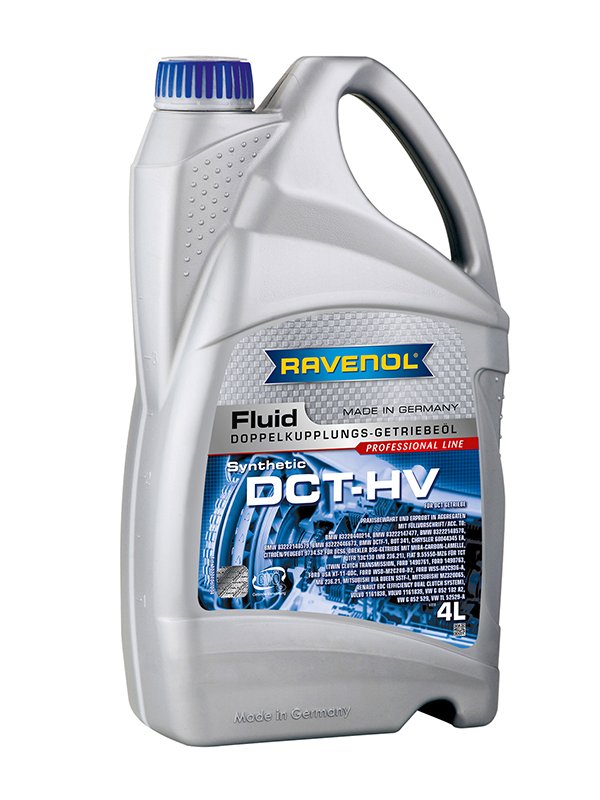

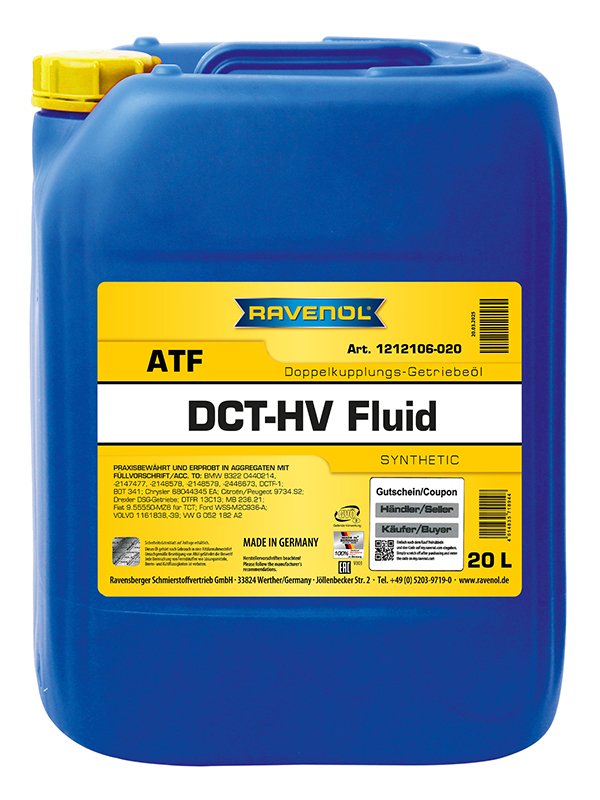

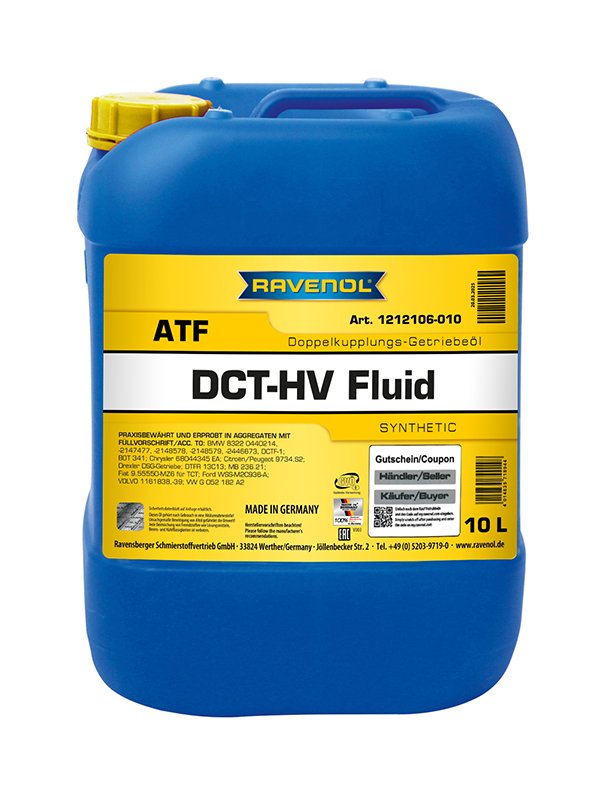

RAVENOL DCT-HV Fluid is a synthetic DCT (Dual Clutch Transmission) Fluid, designed on the basis of high quality hydrocrack oils with components of PAO and a special additive inhibition, which ensure a perfect function of the dual clutch transmission.
RAVENOL DCT-HV Fluid guarantees good lubricating properties even at extremely temperatures in summer and low winter temperatures.
RAVENOL DCT-HV Fluid allows virtually slip-free operation and thus minimal torque losses. Ensures low wear and long life of the transmission. Fuel economy.
Application instructions
RAVENOL DCT-HV Fluid has been developed especially for Dual Clutch Gear of several manufacturers like VW/Audi, Ford, Volvo, Chrysler, Dodge, Mitsubishi and others.
RAVENOL DCT-HV Fluid is also recommended for use in Dual Clutch Gear DQ-250 (02E) and DQ-500 (0BT) acc. to VW Part-No. G 052 182 of VW, Audi, Seat and Skoda.
RAVENOL DCT-HV Fluid is recommended by Fa. Drexler for all DCG-transmissions with MibaCarbon plates.
Characteristics
- Good lubricating properties also at low temperatures in winter
- Stable lubricant film even under extreme loads in summer
- Low wear
- Excellent viscosity-temperature behaviour
- Very low pour point
- Low foaming even under heavy demands
- Extensive protection against wear, corrosion and foaming
- Neutral behavior towards sealing materials
Technical Product Data
| Characteristics | Property | Data | Audit |
|---|---|---|---|
| Colour | gelb | VISUELL | |
| Viscosity at 100 °C | mm²/s | 7,4 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 35,1 | DIN 51562-1 |
| Viscosity Index VI | 184 | DIN ISO 2909 | |
| Density at 20 °C | kg/m³ | 840,0 | EN ISO 12185 |
| Flashpoint | °C | 216 | DIN EN ISO 2592 |
| Pourpoint | °C | -51 | DIN ISO 3016 |
