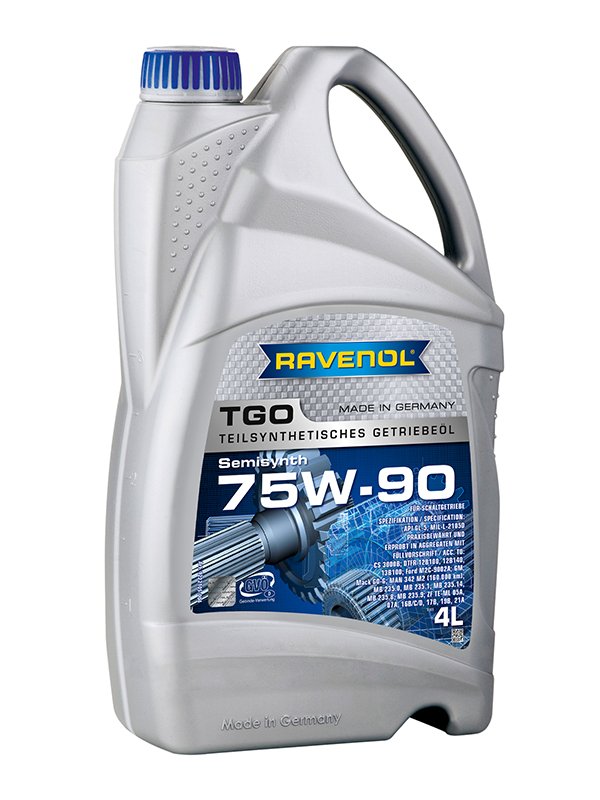

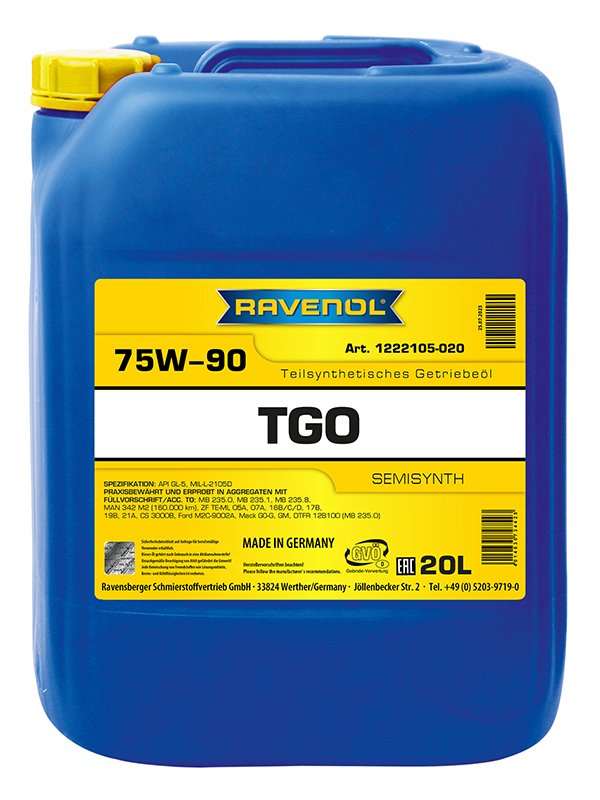

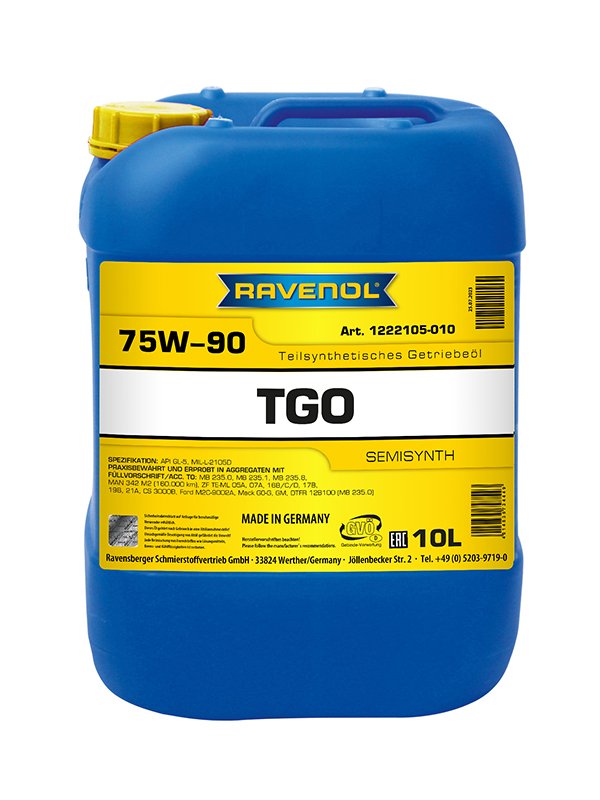

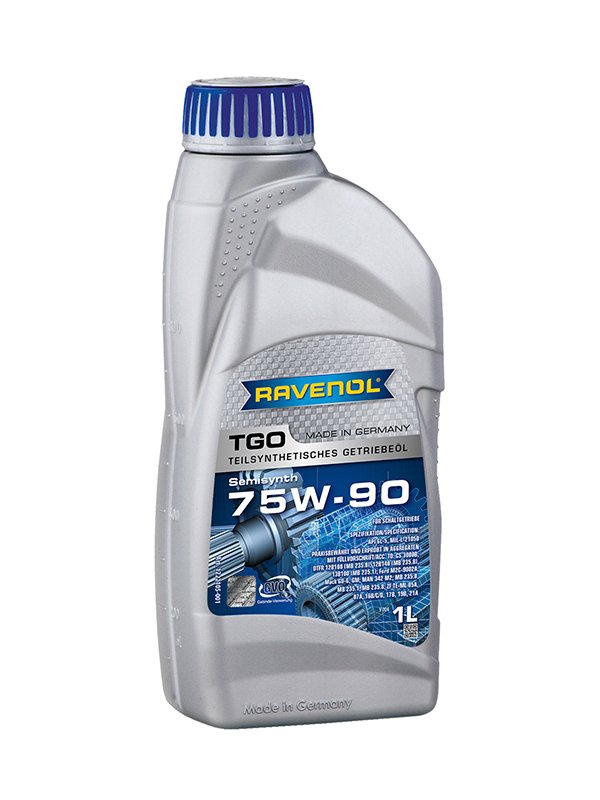

RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5

1 L | 1222105-001
4 L | 1222105-004
10 L | 1222105-010
20 L | 1222105-020
20 L | 1222105-B20
60 L | 1222105-060
60 L | 1222105-D60
208 L | 1222105-208
208 L | 1222105-D28
1000 L | 1222105-700

Category Gear oil for manual transmissions and drive axis

Item number 1222105

Specification API GL-5, MIL-L-2105 D

Oil type Semi-Synthetic

Recommendation CS 3000B, Ford M2C-9002 A, GM, Mack GO-G, MAN 342 M2 (160.000 km), MB 235.0, MB 235.1, MB 235.8, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

Application Passenger car, Truck

RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is a semi-synthetic transmission oil specifically for maximum duty hypoid geared transmissions.

RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is designed based on high-quality solvent refined and synthetic base oils and specially harmonised additive treatment with extreme pressure (EP) active ingredients and other additives. This exceeds the needs of today's application requirements.

Application Note

RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is a maximum duty transmission oil for use in maximum duty, hypoid geared transmissions (axle drives, manual transmissions, etc.), where maximum duty transmission oils are required.

Characteristics

Excellent oxidation stability
Greatest possible protection from rust, corrosion, foaming
Low solidification point
Excellent extreme pressure (EP) properties
High viscosity index
Fuel savings

Technical Product Data

Property	Unit	Data	Audit
Density at 20 °C	842,0	kg/m³	EN ISO 12185
Colour	gelb		VISUELL
Viscosity at 100 °C	15,7	mm²/s	DIN 51562-1
Viscosity at 40 °C	97,3	mm²/s	DIN 51562-1
Viscosity Index VI	173		DIN ISO 2909
Brookfield Viscosity at -40 °C	67.800	mPa*s	ASTM D2983
Pourpoint	-45	°C	DIN ISO 3016
Flashpoint	215	°C	DIN EN ISO 2592
Copper Strip Test at 121 °C	1b		ASTM D130

<div class="carousel-item product-detailed__carousel-item h-100  active ">
                            <img src="https://www.ravenol.de/storage/app/uploads/public/d9a/f58/001/thumb__600_0_0_0_auto.jpg" alt="RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5" class="product-detailed__carousel-item-img" title="RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5">
                        </div>
                                                                                                <div class="carousel-item product-detailed__carousel-item h-100 ">
                            <img src="https://www.ravenol.de/storage/app/uploads/public/4bd/589/d65/thumb__600_0_0_0_auto.jpg" alt="RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5" class="product-detailed__carousel-item-img" title="RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5">
                        </div>
                                                                                                <div class="carousel-item product-detailed__carousel-item h-100 ">
                            <img src="https://www.ravenol.de/storage/app/uploads/public/b01/afd/a22/thumb__600_0_0_0_auto.jpg" alt="RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5" class="product-detailed__carousel-item-img" title="RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5">
                        </div>
                                                                                                <div class="carousel-item product-detailed__carousel-item h-100 ">
                            <img src="https://www.ravenol.de/storage/app/uploads/public/d07/d25/d6a/thumb__600_0_0_0_auto.jpg" alt="RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5" class="product-detailed__carousel-item-img" title="RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5">
                        </div>
                                                                                                <div class="carousel-item product-detailed__carousel-item h-100 ">
                            <img src="https://www.ravenol.de/storage/app/uploads/public/f89/c2a/e08/thumb__600_0_0_0_auto.jpg" alt="RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5" class="product-detailed__carousel-item-img" title="RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5">
                        </div>
                                                                                                <div class="carousel-item product-detailed__carousel-item h-100 ">
                            <img src="https://www.ravenol.de/storage/app/uploads/public/4ec/651/c61/thumb__600_0_0_0_auto.jpg" alt="RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5" class="product-detailed__carousel-item-img" title="RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5">
                        </div>
                                                                                                <div class="carousel-item product-detailed__carousel-item h-100 ">
                            <img src="https://www.ravenol.de/storage/app/uploads/public/020/c66/38f/thumb__600_0_0_0_auto.jpg" alt="RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5" class="product-detailed__carousel-item-img" title="RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5">
                        </div>
                                                                                                <div class="carousel-item product-detailed__carousel-item h-100 ">
                            <img src="https://www.ravenol.de/storage/app/uploads/public/337/6bc/b26/thumb__600_0_0_0_auto.jpg" alt="RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5" class="product-detailed__carousel-item-img" title="RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5">
                        </div>
                                                                                                <div class="carousel-item product-detailed__carousel-item h-100 ">
                            <img src="https://www.ravenol.de/storage/app/uploads/public/58f/f87/10d/thumb__600_0_0_0_auto.jpg" alt="RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5" class="product-detailed__carousel-item-img" title="RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5">
                        </div>
                                                                                                <div class="carousel-item product-detailed__carousel-item h-100 ">
                            <img src="https://www.ravenol.de/storage/app/uploads/public/e0d/12d/5d9/thumb__600_0_0_0_auto.jpg" alt="RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5" class="product-detailed__carousel-item-img" title="RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5">
                        </div>
                                                                                        </div>


                    <a class="carousel-control-prev" href="#carouselExampleIndicators" role="button" data-slide="prev">
                        <span class="carousel-control-prev-icon" aria-hidden="true"></span>
                        <span class="sr-only">Previous</span>
                    </a>
                    <a class="carousel-control-next" href="#carouselExampleIndicators" role="button" data-slide="next">
                        <span class="carousel-control-next-icon" aria-hidden="true"></span>
                        <span class="sr-only">Next</span>
                    </a>

<ol class="d-none">
                                                                                                <li data-target="#carouselExampleIndicators" data-slide-to="0" class=" active ">RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5</li>
                                                                                                <li data-target="#carouselExampleIndicators" data-slide-to="1" class="">RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5</li>
                                                                                                <li data-target="#carouselExampleIndicators" data-slide-to="2" class="">RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5</li>
                                                                                                <li data-target="#carouselExampleIndicators" data-slide-to="3" class="">RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5</li>
                                                                                                <li data-target="#carouselExampleIndicators" data-slide-to="4" class="">RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5</li>
                                                                                                <li data-target="#carouselExampleIndicators" data-slide-to="5" class="">RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5</li>
                                                                                                <li data-target="#carouselExampleIndicators" data-slide-to="6" class="">RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5</li>
                                                                                                <li data-target="#carouselExampleIndicators" data-slide-to="7" class="">RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5</li>
                                                                                                <li data-target="#carouselExampleIndicators" data-slide-to="8" class="">RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5</li>
                                                                                                <li data-target="#carouselExampleIndicators" data-slide-to="9" class="">RAVENOL Getriebeoel TGO SAE 75W-90 API GL 5</li>
                                                                                            </ol>

</div>
            </div>
            <div class="product__description">

<p class="specifications">
                    <strong>Category</strong>
                    <span>Gear oil for manual transmissions and drive axis</span>
                </p>
                <p class="specifications">
                    <strong>Item number</strong>
                    <span>1222105</span>
                </p>

<p>
        <strong>Specification</strong>
    <span></span>

Semi-Synthetic

    <span></span>

</p>
<p>
        <strong>Recommendation</strong>
    <span></span>

<a href="https://www.ravenol.de/en/properties/empfehlung/cs-3000b">CS 3000B</a>,
                                                <a href="https://www.ravenol.de/en/properties/empfehlung/ford-m2c-9002-a">Ford M2C-9002 A</a>,
                                                <a href="https://www.ravenol.de/en/properties/empfehlung/gm">GM</a>,
                                                <a href="https://www.ravenol.de/en/properties/empfehlung/mack-go-g">Mack GO-G</a>,
                                                <a href="https://www.ravenol.de/en/properties/empfehlung/man-342-m2-160x000-km">MAN 342 M2 (160.000 km)</a>,
                                                <a href="https://www.ravenol.de/en/properties/empfehlung/mb-235x0">MB 235.0</a>,
                                                <a href="https://www.ravenol.de/en/properties/empfehlung/mb-235x1">MB 235.1</a>,
                                                <a href="https://www.ravenol.de/en/properties/empfehlung/mb-235x8">MB 235.8</a>,
                                                <a href="https://www.ravenol.de/en/properties/empfehlung/zf-te-ml-05a">ZF TE-ML 05A</a>,
                                                <a href="https://www.ravenol.de/en/properties/empfehlung/zf-te-ml-07a">ZF TE-ML 07A</a>,
                                                <a href="https://www.ravenol.de/en/properties/empfehlung/zf-te-ml-16b">ZF TE-ML 16B</a>,
                                                <a href="https://www.ravenol.de/en/properties/empfehlung/zf-te-ml-16c">ZF TE-ML 16C</a>,
                                                <a href="https://www.ravenol.de/en/properties/empfehlung/zf-te-ml-16d">ZF TE-ML 16D</a>,
                                                <a href="https://www.ravenol.de/en/properties/empfehlung/zf-te-ml-17b">ZF TE-ML 17B</a>,
                                                <a href="https://www.ravenol.de/en/properties/empfehlung/zf-te-ml-19b">ZF TE-ML 19B</a>,
                                                                    <a href="https://www.ravenol.de/en/properties/empfehlung/zf-te-ml-21a">ZF TE-ML 21A</a>

    <span></span>

</p>
<p>
        <strong>Application</strong>
    <span></span>

<a href="https://www.ravenol.de/en/properties/einsatzgebiet/pkw">Passenger car</a>,
                                                                    <a href="https://www.ravenol.de/en/properties/einsatzgebiet/lkw">Truck</a>

    <span></span>

</p>
                            </div>

<div class="wysiwyg product__description">
<p><b>RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 </b>is a semi-synthetic transmission oil specifically for maximum duty hypoid geared transmissions. </p>
<p><b>RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 </b>is designed based on high-quality solvent refined and synthetic base oils and specially harmonised additive treatment with extreme pressure (EP) active ingredients and other additives. This exceeds the needs of today's application requirements. </p>
<h2>Application Note</h2>

<p><b>RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 </b>is a maximum duty transmission oil for use in maximum duty, hypoid geared transmissions (axle drives, manual transmissions, etc.), where maximum duty transmission oils are required. </p>
<h2>Characteristics</h2>

<ul><li>Excellent oxidation stability</li>
<li>Greatest possible protection from rust, corrosion, foaming</li>
<li>Low solidification point</li>
<li>Excellent extreme pressure (EP) properties</li>
<li>High viscosity index</li>
<li>Fuel savings</li></ul><h2>Technical Product Data</h2>
<table class="techParametersTable"><thead><tr class="techParametersTable__Head"><th>Property</th><th>Unit</th><th>Data</th><th>Audit</th></tr></thead><tbody>
<tr><td>Density at 20 °C</td>
<td>842,0</td>
<td>kg/m³</td>
<td>EN ISO 12185</td>
</tr>

<tr><td>Colour</td>
<td>gelb</td>
<td></td>
<td>VISUELL</td>
</tr>

<tr><td>Viscosity at 100 °C</td>
<td>15,7</td>
<td>mm²/s</td>
<td>DIN 51562-1</td>
</tr>

<tr><td>Viscosity at 40 °C</td>
<td>97,3</td>
<td>mm²/s</td>
<td>DIN 51562-1</td>
</tr>

<tr><td>Viscosity Index VI</td>
<td>173</td>
<td></td>
<td>DIN ISO 2909</td>
</tr>

<tr><td>Brookfield Viscosity at -40 °C</td>
<td>67.800</td>
<td>mPa*s</td>
<td>ASTM D2983</td>
</tr>

<tr><td>Pourpoint</td>
<td>-45</td>
<td>°C</td>
<td>DIN ISO 3016</td>
</tr>

<tr><td>Flashpoint</td>
<td>215</td>
<td>°C</td>
<td>DIN EN ISO 2592</td>
</tr>

<tr><td>Copper Strip Test at 121 °C</td>
<td>1b</td>
<td></td>
<td>ASTM D130</td>
</tr>
</tbody></table>
</div>
