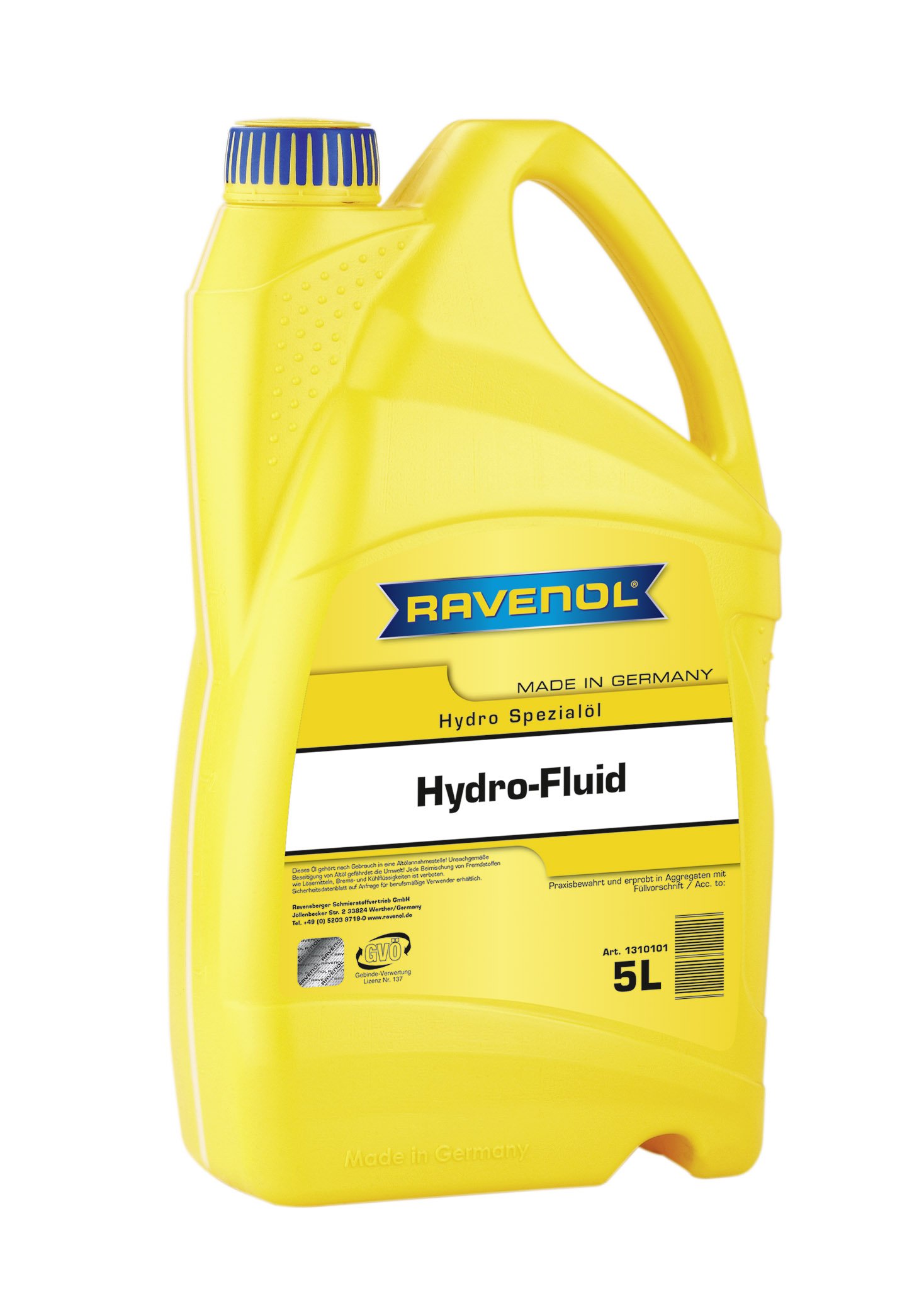

RAVENOL Hydro-Fluid

5 L | 1310101-005

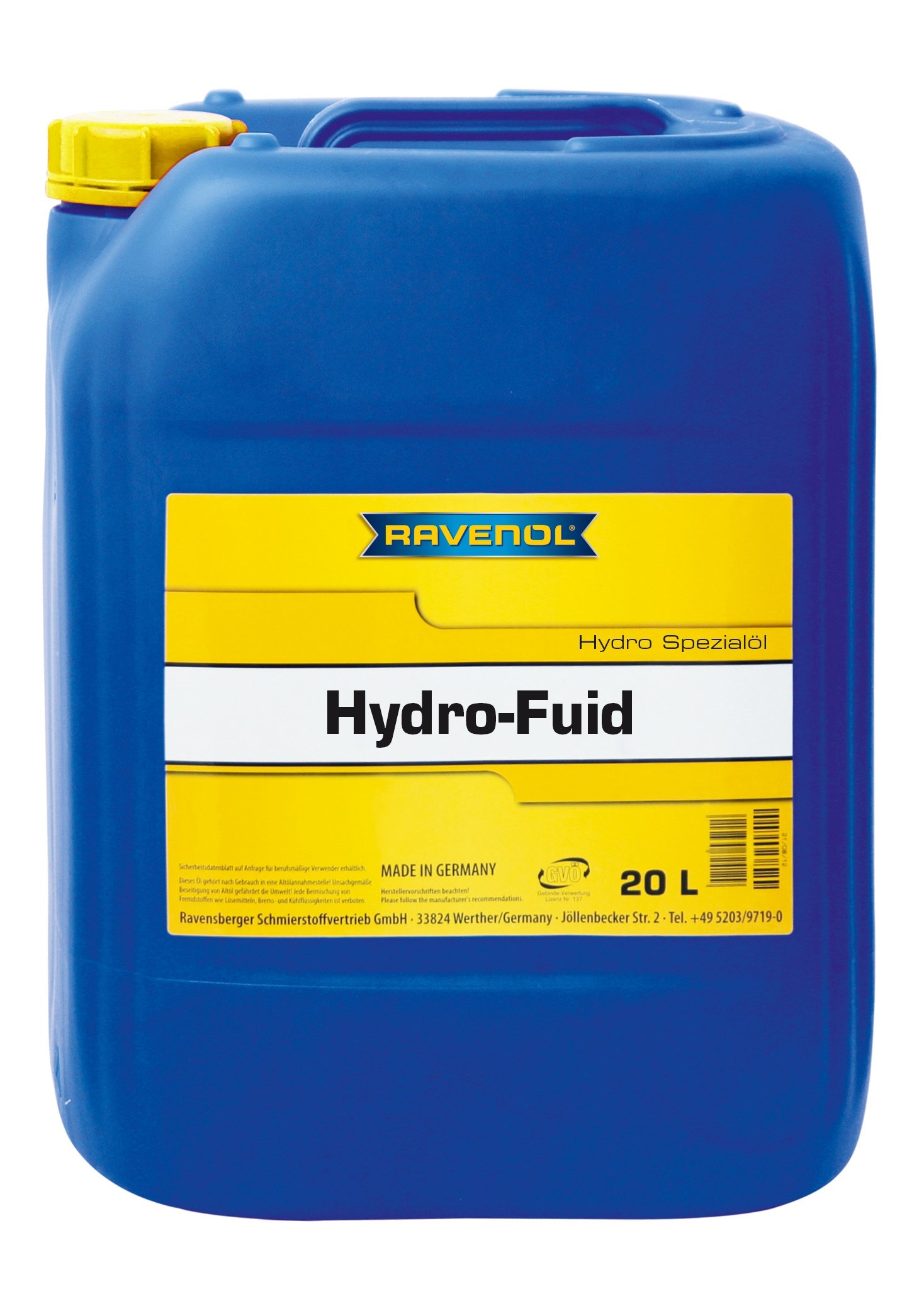

20 L | 1310101-020
20 L | 1310101-B20
60 L | 1310101-060
208 L | 1310101-208
1000 L | 1310101-700

Category Hydraulic oil for agricultural vehicles and constr

Item number 1310101

Specification API GL-4

Recommendation Allison C4, API GL-4, Atlas Copco Kompressor, Case International J I, Case MS 1118, Case MS 1206, Case MS 1209, Caterpillar TO-2, DENISON HF-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford-Pumpentest, Getriebeöl: SAE 80W, Hydrauliköl: HLP ISO VG 68, International Harvester B6, John Deere J20C, John Deere J20D, Kompressorenöl: Holman Compair Kompressor, Massey-Ferguson M 1127, Massey-Ferguson M 1139, Massey-Ferguson M 1144, MIL-L-2105, Spezialtraktorenöl: John Deere J27A, Vickers-Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B

Application Agricultural machinery

RAVENOL Hydro-Fluid is a special oil, which fulfils the recommendations of all well-known manufacturers of agricultural tractors. Of course, it can also be used in transmission and hydraulic systems of modern tractors. High quality base oils and selected additives ensure a trouble-free operation of all power train elements in any season.

Application Note

RAVENOL Hydro-Fluid has a wide range of application in the transmission and hydraulic systems of modern tractors.

RAVENOL Hydro-Fluid is excellently suitable for wet brake and clutch systems (power take-off clutches).

RAVENOL Hydro-Fluid can also be used as a compressor oil.

Characteristics

Excellent viscosity-temperature characteristics
Outstanding cold starting properties
Compelling detergent/dispersant properties
High resistance to ageing

Technical Product Data

Property	Unit	Data	Audit
Density at 20 °C	861,0	kg/m³	EN ISO 12185
Colour	gelbbraun		VISUELL
Viscosity at 100 °C	11,8	mm²/s	DIN 51562-1
Viscosity at 40 °C	71,7	mm²/s	DIN 51562-1
Viscosity Index VI	154		DIN ISO 2909
Pourpoint	-39	°C	DIN ISO 3016
Flashpoint	222	°C	DIN EN ISO 2592
tbn	11,9	mg KOH/g	ASTM D2896
Sulphated Ash	1,45	%wt.	DIN 51575
