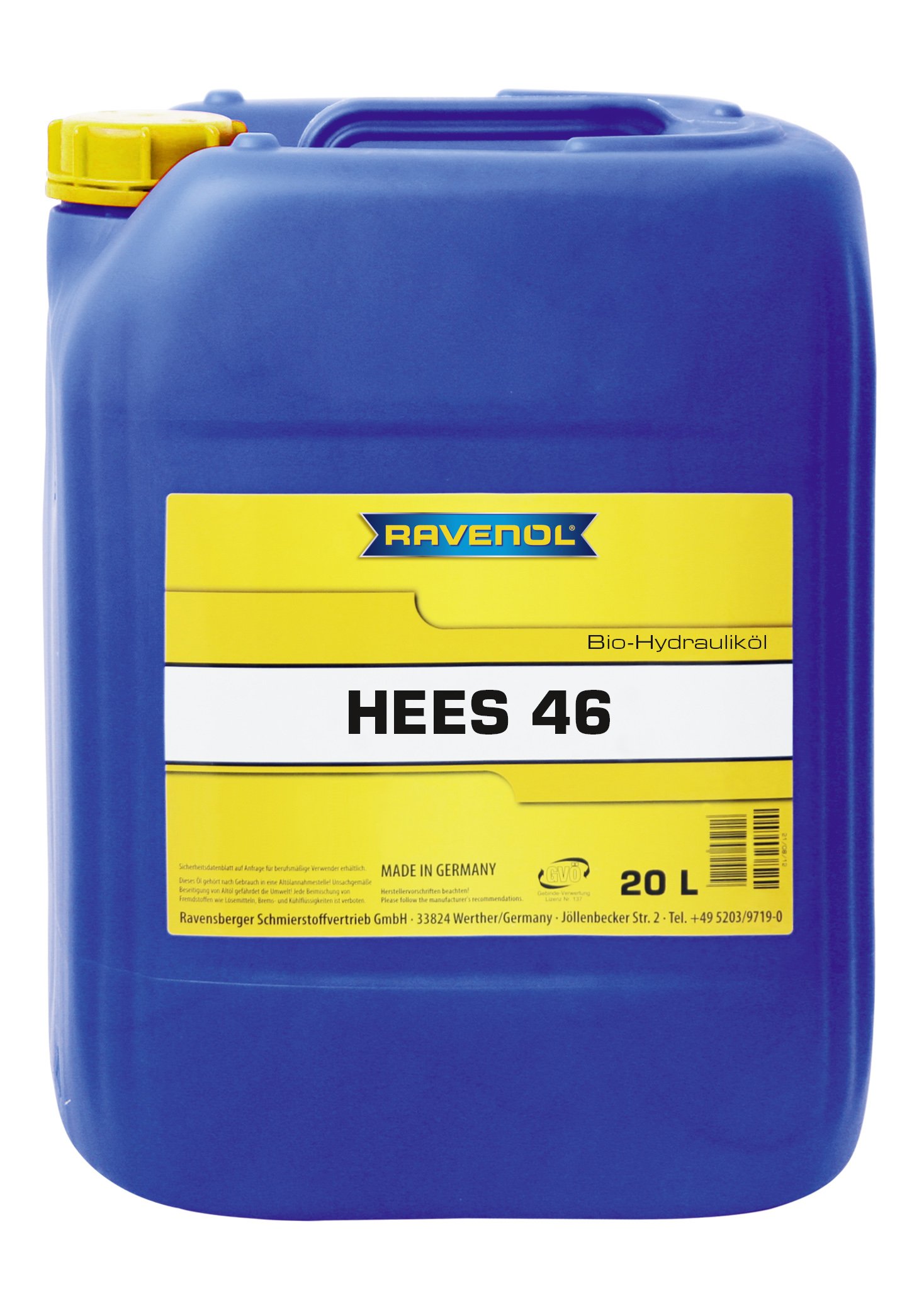

RAVENOL Bio-Hydraulikoel HEES 46

Category: Other hydraulic oil
Item number: 1321105
Viscosity: 46
Oil type: Full synthetic

RAVENOL BIO-Hydraulikoel HEES 46 is based on synthetic, easily biodegradable unsaturated esters and a powerful, environmentally friendly combination of additives which gives the product excellent properties regarding oxidation stability, corrosion, low temperatures as well as EP behaviour.

Compared with products of vegetable triglyceride base, RAVENOL BIO-Hydraulikoel HEES 46 has much better high temperature oxidation stability.

RAVENOL BIO-Hydraulikoel HEES 46 can be used year-round due to its outstanding low-temperature behaviour and provides excellent wear and corrosion protection.

Application Note

RAVENOL BIO-Hydraulikoel HEES 46 is used wherever there is the danger of hydraulic fluid leaking into the ground-or waste water. This includes all equipment operating in or near areas of water purification or water protection or near surface water, such as e.g. sewage treatment plants, dredging ships and floating dredges, lock hydraulics and river weirs, pipe and tunnel driving machines, hydraulic aggregates in forests and on fields, earth moving machines in water and forestry machines.

Characteristics

  • Biodegradability
  • Excellent corrosion protection
  • Outstanding cold behaviour
  • Excellent oxidation stability

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³917,0EN ISO 12185
ColourgelbVISUELL
Viscosity at 100 °Cmm²/s9,45DIN 51562-1
Viscosity at 40 °Cmm²/s46,0DIN 51562-1
Viscosity Index VI190DIN ISO 2909
Pourpoint°C-36DIN ISO 3016
Flashpoint°C296DIN EN ISO 2592
Seq. I at 24 °Cml/ml10/0ASTM D892
Seq. II at 93,5 °Cml/ml5/0ASTM D892
Seq. III at 24 °C after 93,5 °Cml/ml10/0ASTM D892
Copper Strip Test at 121 °C1aASTM D130
Air release at 50 °C, max.min.2DIN ISO 9120

All indicated data are approximate values and are subject to the commercial fluctuations.
