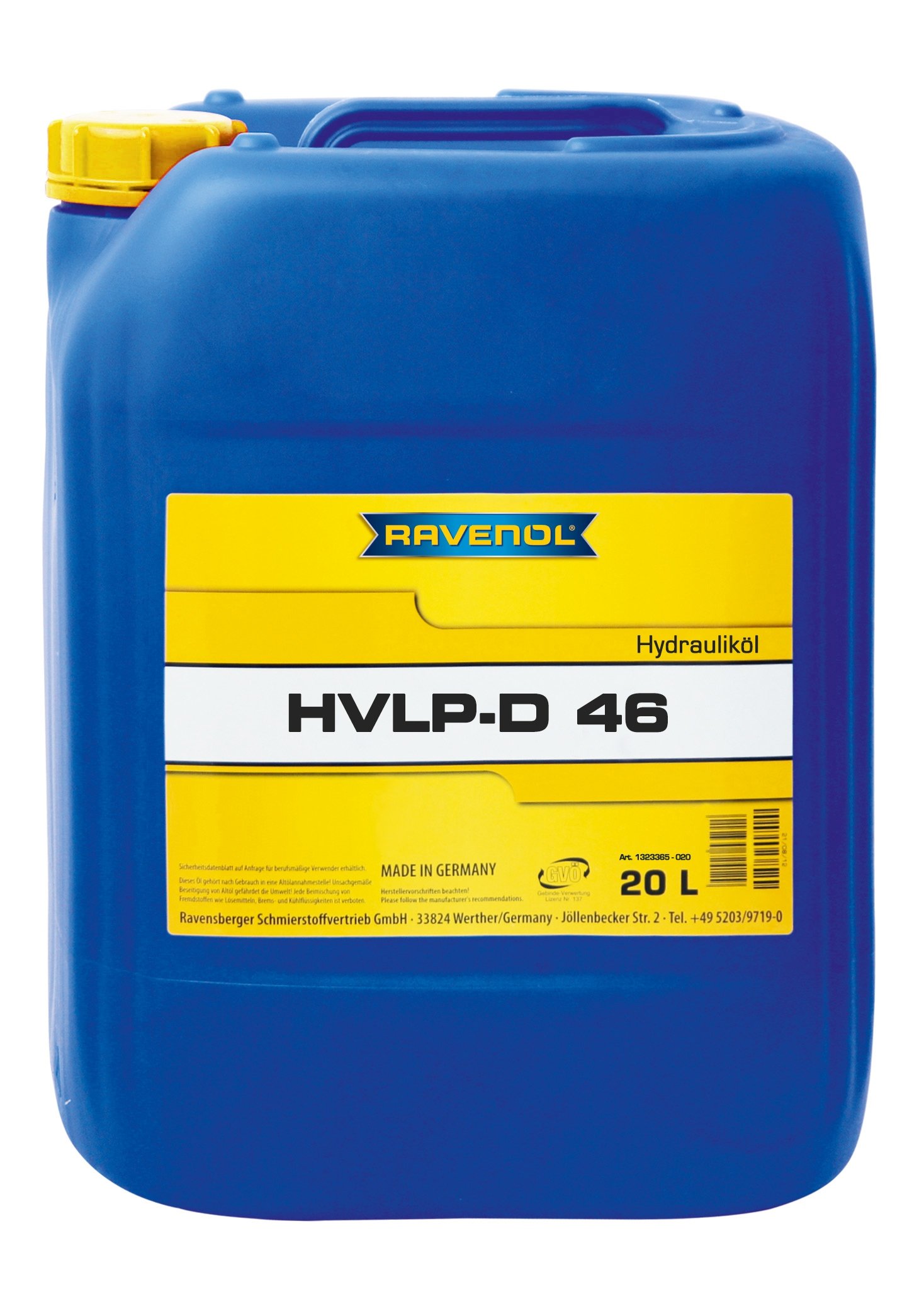

RAVENOL Hydraulikoel HVLP-D 46

Category: Other hydraulic oil
Item number: 1323365
Viscosity: 46
Specification: DIN 51524-3
Oil type: Mineral
Application: Industry

RAVENOL Hydraulikoel HVLP-D 46is a detergent hydraulic oil with a high viscosity index for use in a wide temperature range (multi-range hydraulic oil).

RAVENOL Hydraulikoel HVLP-D 46is designed with selected base oils with additives to prevent corrosion, wear and friction.

RAVENOL Hydraulikoel HVLP-D 46is characterized by a good viscosity-temperature behavior, high aging resistance and reliable corrosion protection.

RAVENOL Hydraulikoel HVLP-D 46also contains detergent and dispersing agents, which always provide for a clean hydraulic system.

These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.

Application Note

RAVENOL Hydraulikoel HVLP-D 46 is used in hydraulic systems which are exposed to very fluctuating operating temperatures, abrasion, dirt and water.

RAVENOL Hydraulikoel HVLP-D 46 is designed for heavily loaded hydraulic systems of agricultural, forestry and construction machinery and stationary hydraulic systems, e.g. Industrial equipment.

Characteristics

  • Reliable corrosion protection even when absorbing moisture
  • Good air and water separation capacity, prevention of foam formation
  • Excellent wear protection
  • Good oxidation stability
  • Excellent detergent and dispersing properties
  • Neutral behavior against sealing materials
  • Very low flow point

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³858,0EN ISO 12185
ColourgelbVISUELL
Viscosity at 100 °Cmm²/s8,5DIN 51562-1
Viscosity at 40 °Cmm²/s46,1DIN 51562-1
Viscosity Index VI163DIN ISO 2909
Pourpoint°C-42DIN ISO 3016
Flashpoint°C230DIN EN ISO 2592

All indicated data are approximate values and are subject to the commercial fluctuations.
