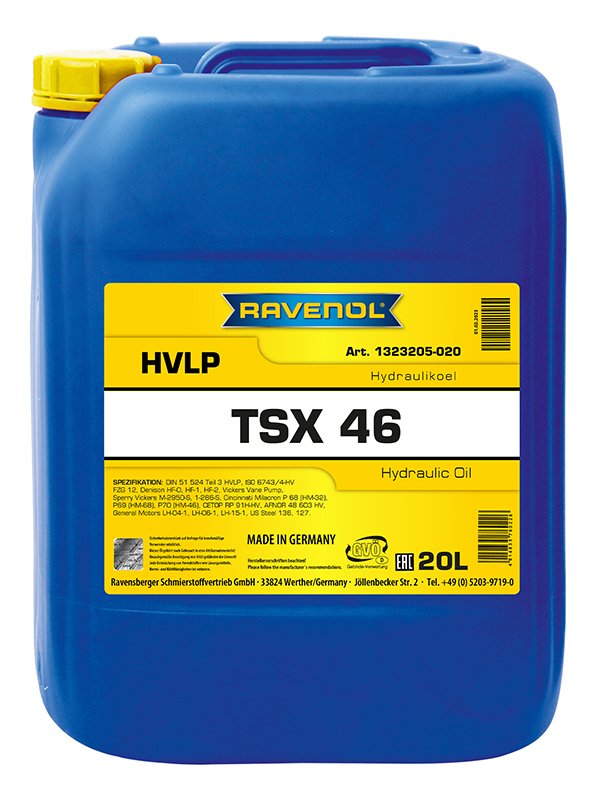

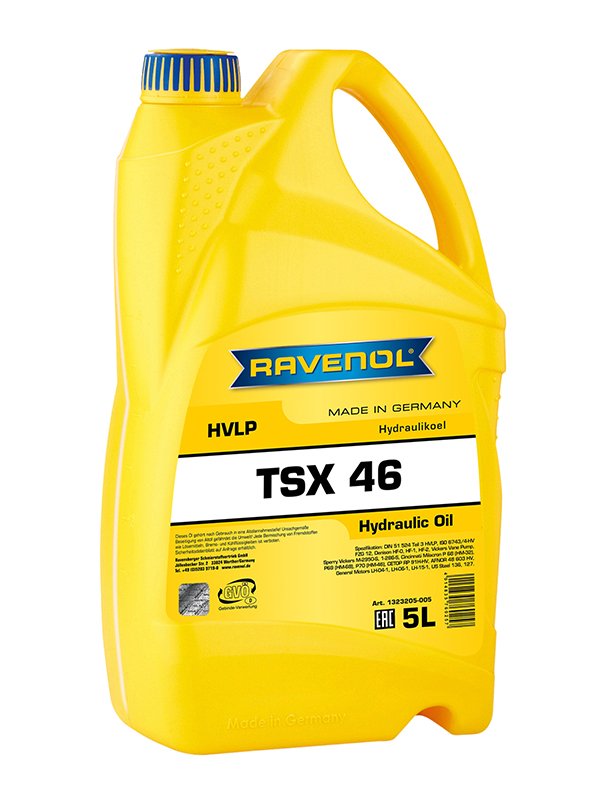

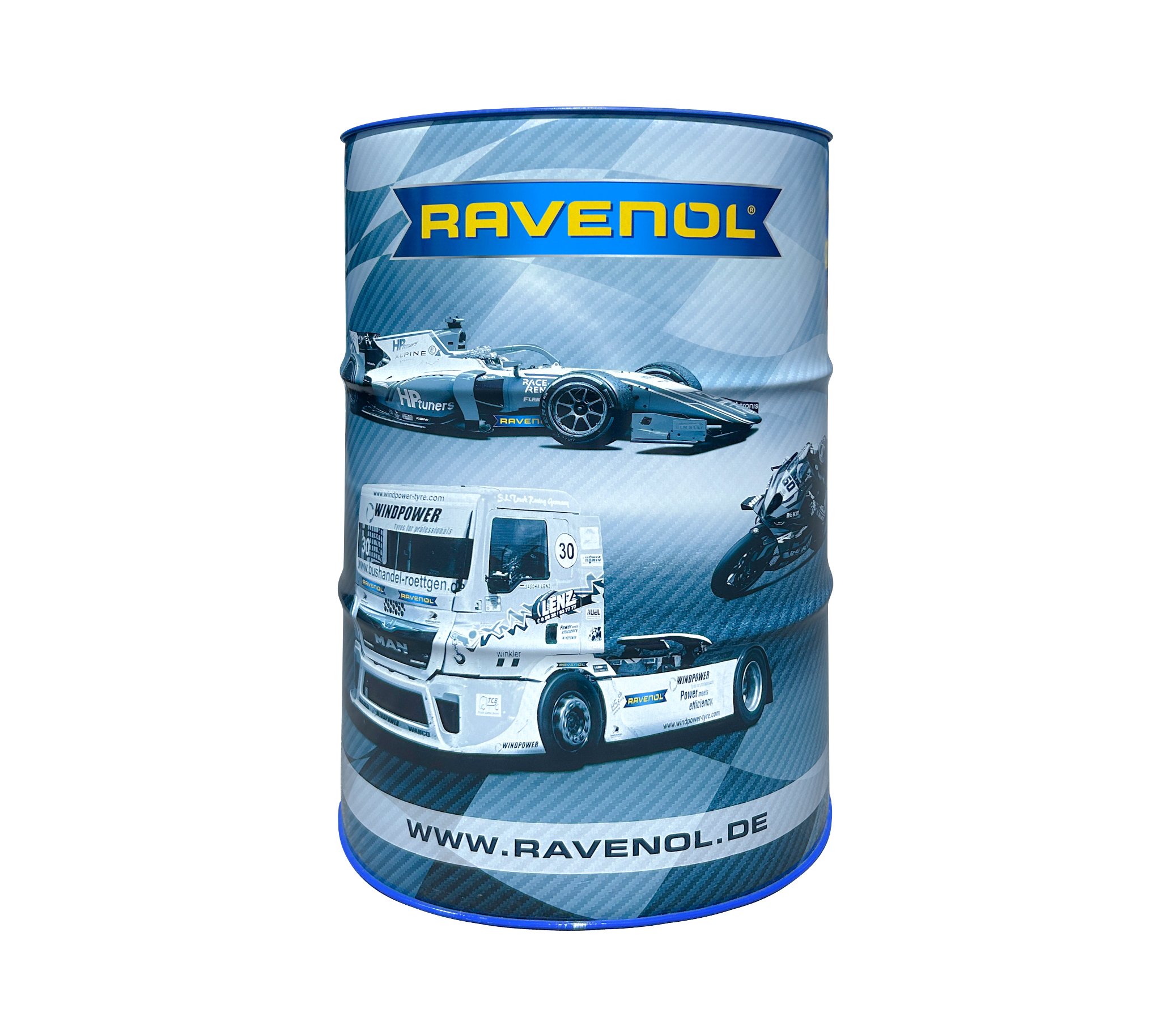

RAVENOL Hydraulikoel TSX 46 (HVLP)

Category: Other hydraulic oil
Item number: 1323205
Viscosity: 46
Specification: DIN 51524-3, ISO 6743-4 HV
Oil type: Mineral
Application: Industry

RAVENOL Hydraulikoel TSX 46 (HVLP) is high quality multi-grade hydraulic oil type HVLP based on special selected solvent refined basic oils. It is characterised by a high stable viscosity index and a solid corrosion protection. Efficient additives offer an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

Application Note

RAVENOL Hydraulikoel TSX 46 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Characteristics

  • A high and stable viscosity index
  • An excellent corrosion protection
  • An excellent protection against wear
  • A very good air and water separation behaviour to prevent foam formation
  • Neutral behaviour towards sealing of plastics
  • A very low pour point

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³850,0EN ISO 12185
ColourgelbVISUELL
Viscosity at 100 °Cmm²/s9,5DIN 51562-1
Viscosity at 40 °Cmm²/s47,3DIN 51562-1
Viscosity Index VI190DIN ISO 2909
Pourpoint°C-42DIN ISO 3016
Flashpoint°C232DIN EN ISO 2592

All indicated data are approximate values and are subject to the commercial fluctuations.
