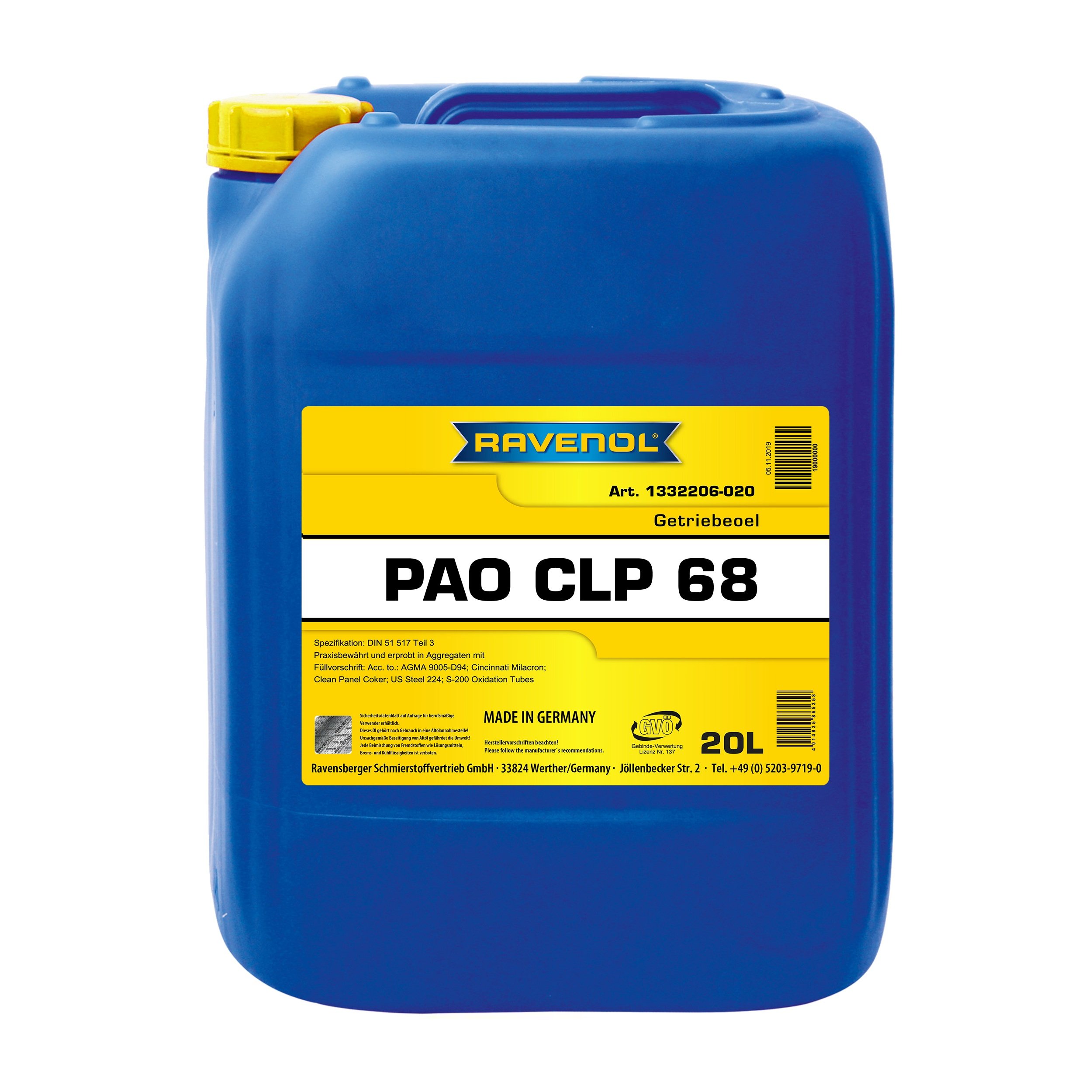

RAVENOL Getriebeoel PAO CLP 68

Category: Industrial oil
Item number: 1332206
Specification: DIN 51517-3
Oil type: Fully synthetic

RAVENOL Getriebeoel PAO CLP 68

is premium performance, extreme pressure lubricant designed for enclosed industrial gears and bearings operating under severe load conditions and in wide extremes of temperature.

RAVENOL Getriebeoel PAO CLP 68

is formulated using PAO synthetic base oils and additive technologies to deliver excellent wear properties, outstanding extreme temperature performance for extended component and fluid life.

RAVENOL Getriebeoel PAO CLP 68

enhances gear box efficiency over a wide temperature range and can reduce power consumption.

Application Note

RAVENOL Getriebeoel PAO CLP 68

is recommended for enclosed industrial gear drives and bearings particularly where they are operated under heavy duty conditions such as heavy loading, slow speed, shock loads and in wide extremes of temperature.The tough oil film of

RAVENOL Getriebeoel PAO CLP 68

and low coefficient of friction save energy in gearboxes. The high viscosity index of

RAVENOL Getriebeoel PAO CLP 68

means they retain their viscosity at high operating temperatures. This often allows the use of a lower ISO grade than with conventional gear oil resulting in even greater energy savings.

RAVENOL Getriebeoel PAO CLP 68

is designed to combat these conditions and will run cooler while maintaining a high lubricant film strength. For gearboxes that operate outdoors,

RAVENOL Getriebeoel PAO CLP 68

is capable of operating at temperatures as low as -30°C or below.When converting a gearbox to

RAVENOL Getriebeoel PAO CLP 68

, it is recommended to be cleaned and flushed first to gain the full benefit of the product.

RAVENOL Getriebeoel PAO CLP 68

operates over the temperature range from -50°C to 150°C, with simultaneous corrosion protection for colored metal parts.

Technical Product Data

PropertyUnitDataAudit
ColourhellgelbVISUELL
Viscosity at 100 °Cmm²/s11,7DIN 51562-1
Viscosity at 40 °Cmm²/s66,5DIN 51562-1
Viscosity Index VI173DIN ISO 2909
Copper Strip Test at 150 °C1aASTM D130
Density at 20 °Ckg/m³843,0EN ISO 12185
Flashpoint (CC)°C252DIN EN ISO 2592
Pourpoint°C-63DIN ISO 3016

All indicated data are approximate values and are subject to the commercial fluctuations.

Download PDF
