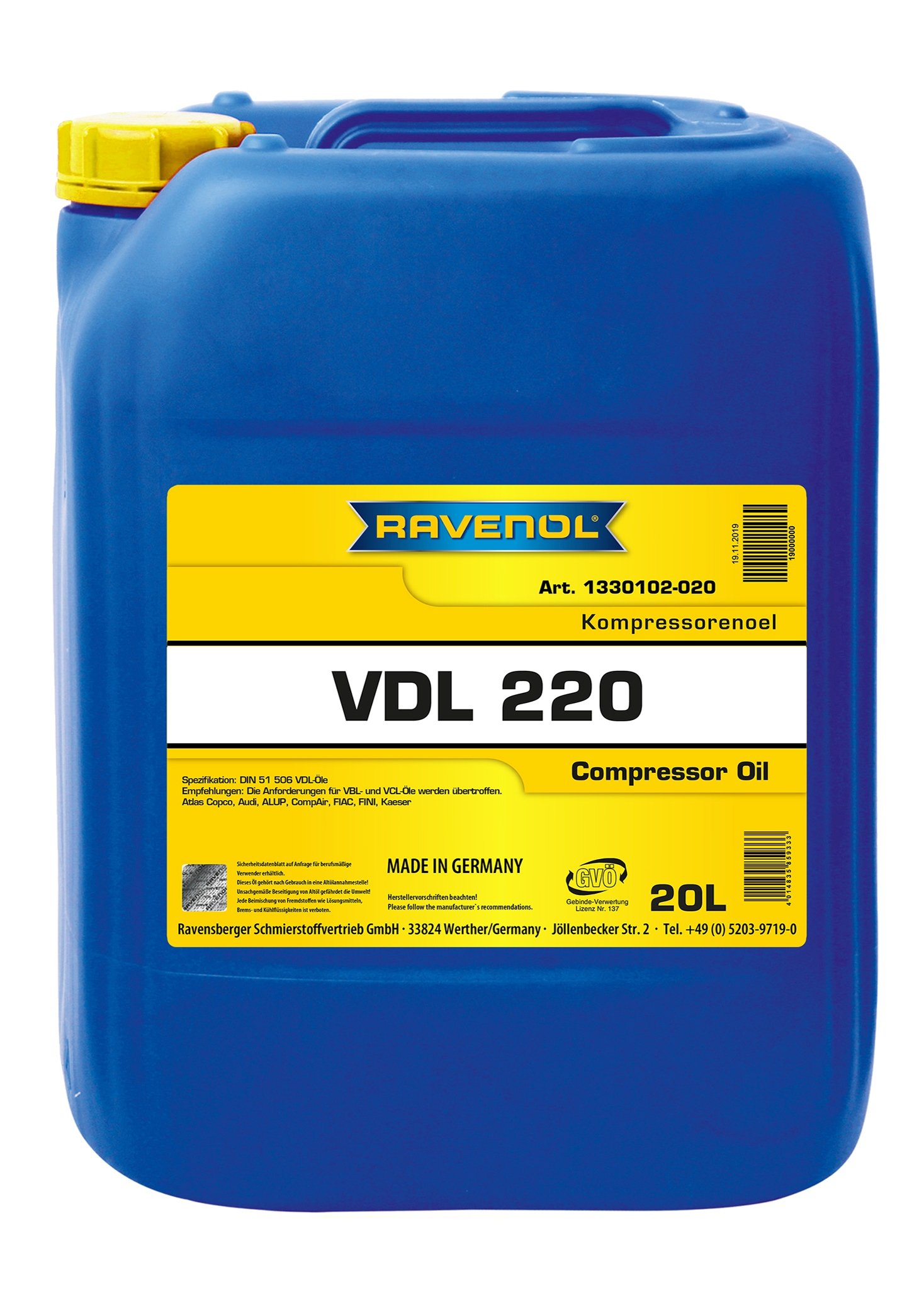

RAVENOL Kompressorenoel VDL 220

Category: Industrial oil
Item number: 1330102
Viscosity: 220
Specification: DIN 51506 VDL
Oil type: Mineral
Application: Industry

RAVENOL Kompressorenoel VDL 220 meets the high requirements of DIN 51 506. Specially designed with high quality, age-resistant base oils.

RAVENOL Kompressorenoel VDL 220 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.

RAVENOL Kompressorenoel VDL 220 provides a secure lubrication not only in the upper temperature range, also in the cold state of the compressor to achieve a reduction of wear. By selected and coordinated additive composition the tendency to coking and the formation of flammable residues is minimized.

Application Note

RAVENOL Kompressorenoel VDL 220 can be used in stationary and mobile compressors with discharge temperatures up to 220°C.

RAVENOL Kompressorenoel VDL 220 can also be used for lubrication of engines and diesel engines where the manufacturer does not stipulate any HD motor oil.

Characteristics

  • Excellent aging resistance
  • Best wear protection
  • Excellent viscosity-temperature behavior
  • Very good cold starting properties
  • Low coking tendency

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³893,0EN ISO 12185
ColourgelbbraunVISUELL
Viscosity at 100 °Cmm²/s18,8DIN 51562-1
Viscosity at 40 °Cmm²/s226,5DIN 51562-1
Viscosity Index VI93DIN ISO 2909
Pourpoint°C-9DIN ISO 3016
Flashpoint°C276DIN EN ISO 2592

All indicated data are approximate values and are subject to the commercial fluctuations.
