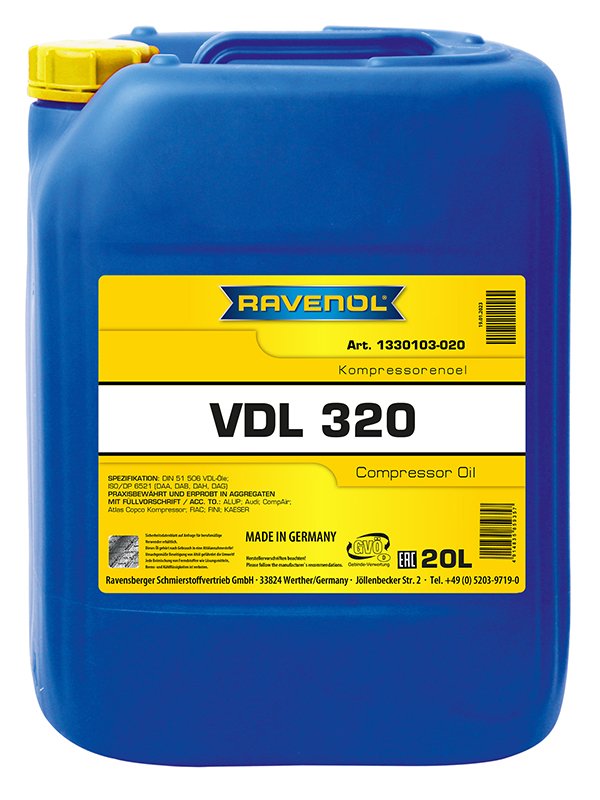

RAVENOL Kompressorenoel VDL 320

Category: Industrial oil
Item number: 1330103
Viscosity: 320
Oil type: Mineral
Application: Industry

RAVENOL Kompressorenoel VDL 320 meets the high requirements of DIN 51 506. Specially designed with high quality, age-resistant base oils.

RAVENOL Kompressorenoel VDL 320 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.

RAVENOL Kompressorenoel VDL 320 provides a secure lubrication not only in the upper temperature range, also in the cold state of the compressor to achieve a reduction of wear. By selected and coordinated additive composition the tendency to coking and the formation of flammable residues is minimized.

Application Note

RAVENOL Kompressorenoel VDL 320 can be used in stationary and mobile compressors with discharge temperatures up to 220°C.

RAVENOL Kompressorenoel VDL 320 can also be used for lubrication of engines and diesel engines where the manufacturer does not stipulate any HD motor oil.

Exceeds the requirements for VBL- and VCL-oils.

Characteristics

  • Excellent aging resistance
  • Reliable wear protection
  • Excellent viscosity-temperature behavior
  • Good cold starting properties
  • Low coking tendency
  • Neutral towards sealing materials

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³987,0EN ISO 12185
ColourgelbVISUELL
Viscosity at 100 °Cmm²/s24,0DIN 51562-1
Viscosity at 40 °Cmm²/s330,4DIN 51562-1
Viscosity Index VI93DIN ISO 2909
Pourpoint°C-9DIN ISO 3016
Flashpoint°C294DIN EN ISO 2592

All indicated data are approximate values and are subject to the commercial fluctuations.
