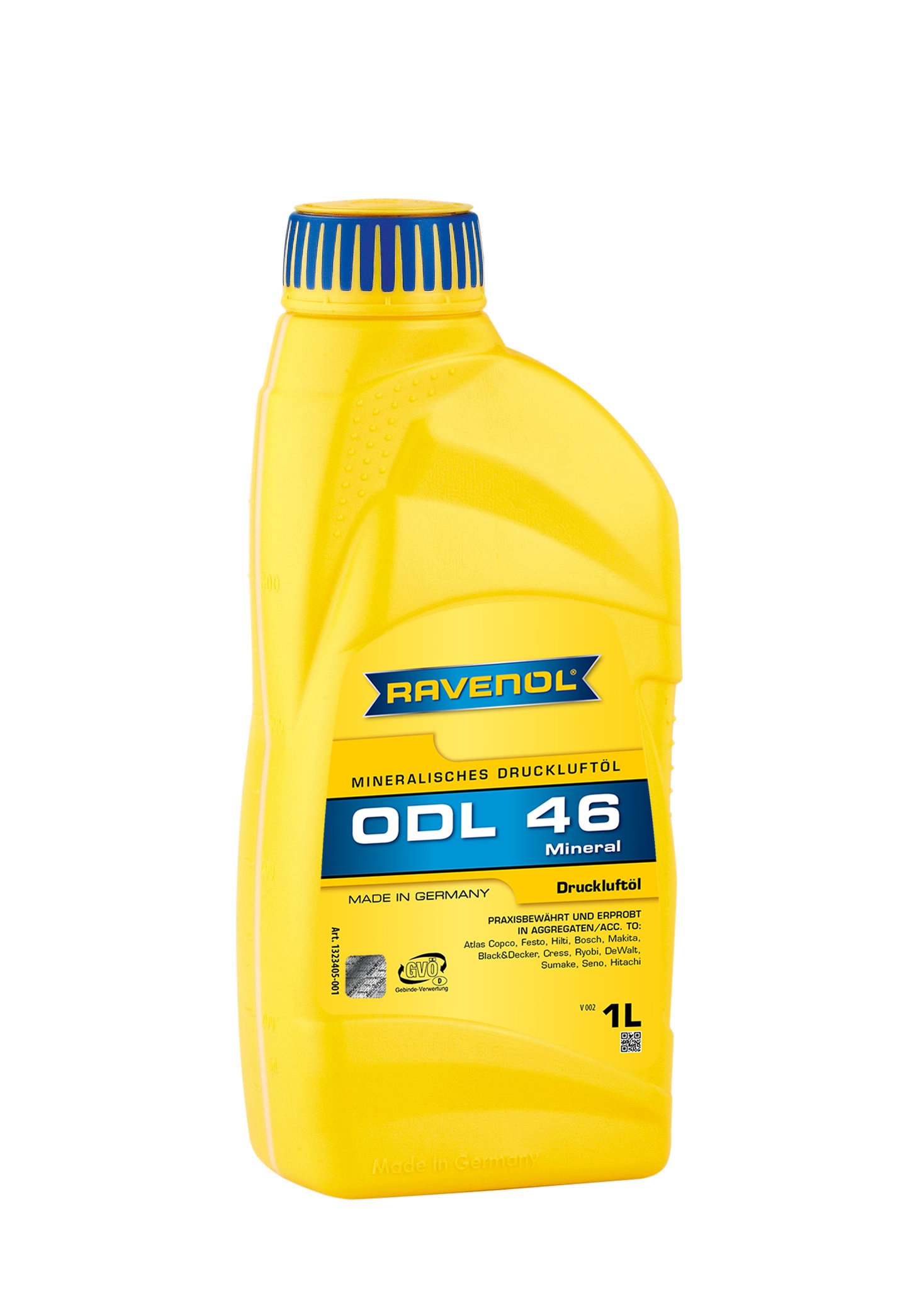

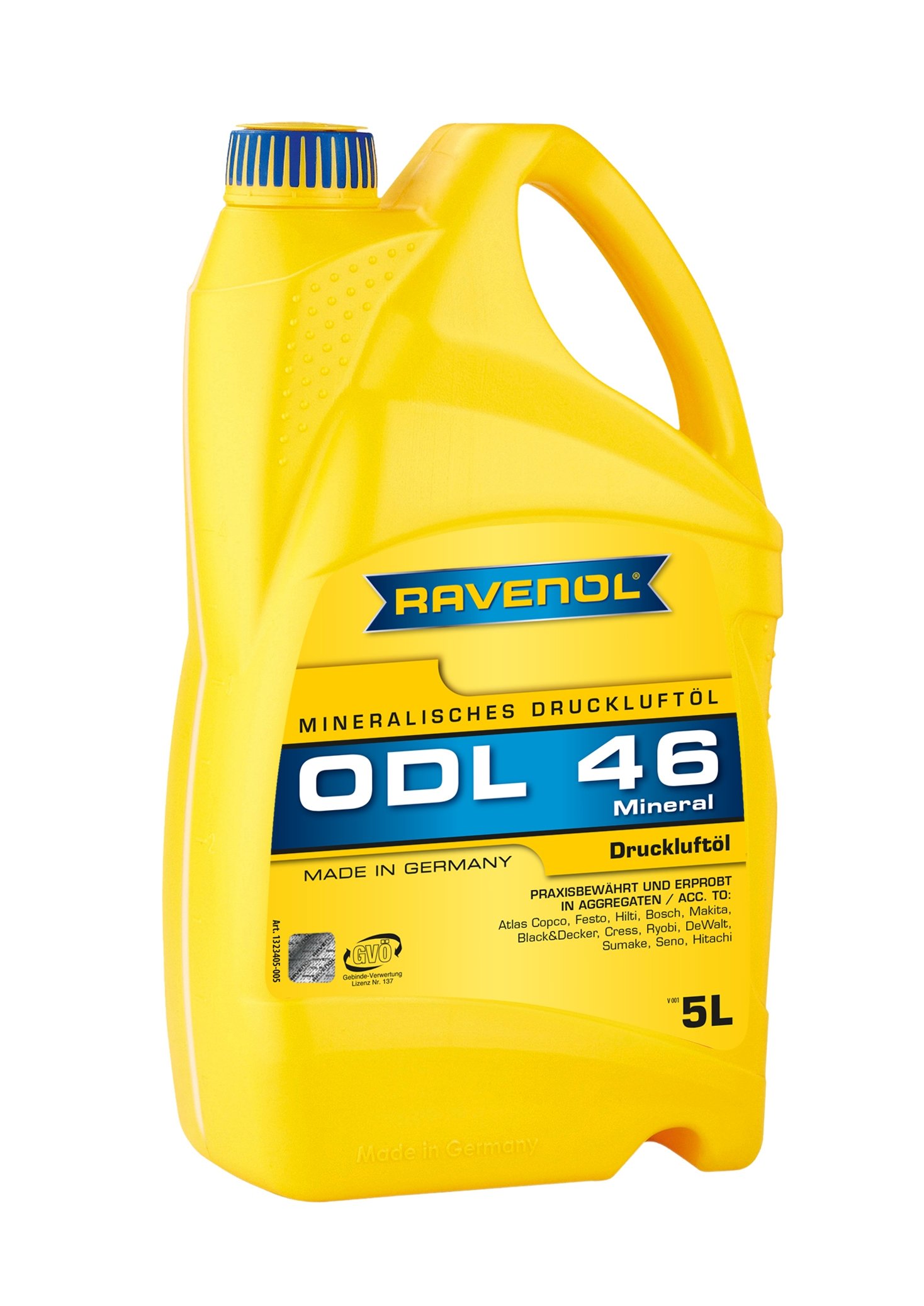

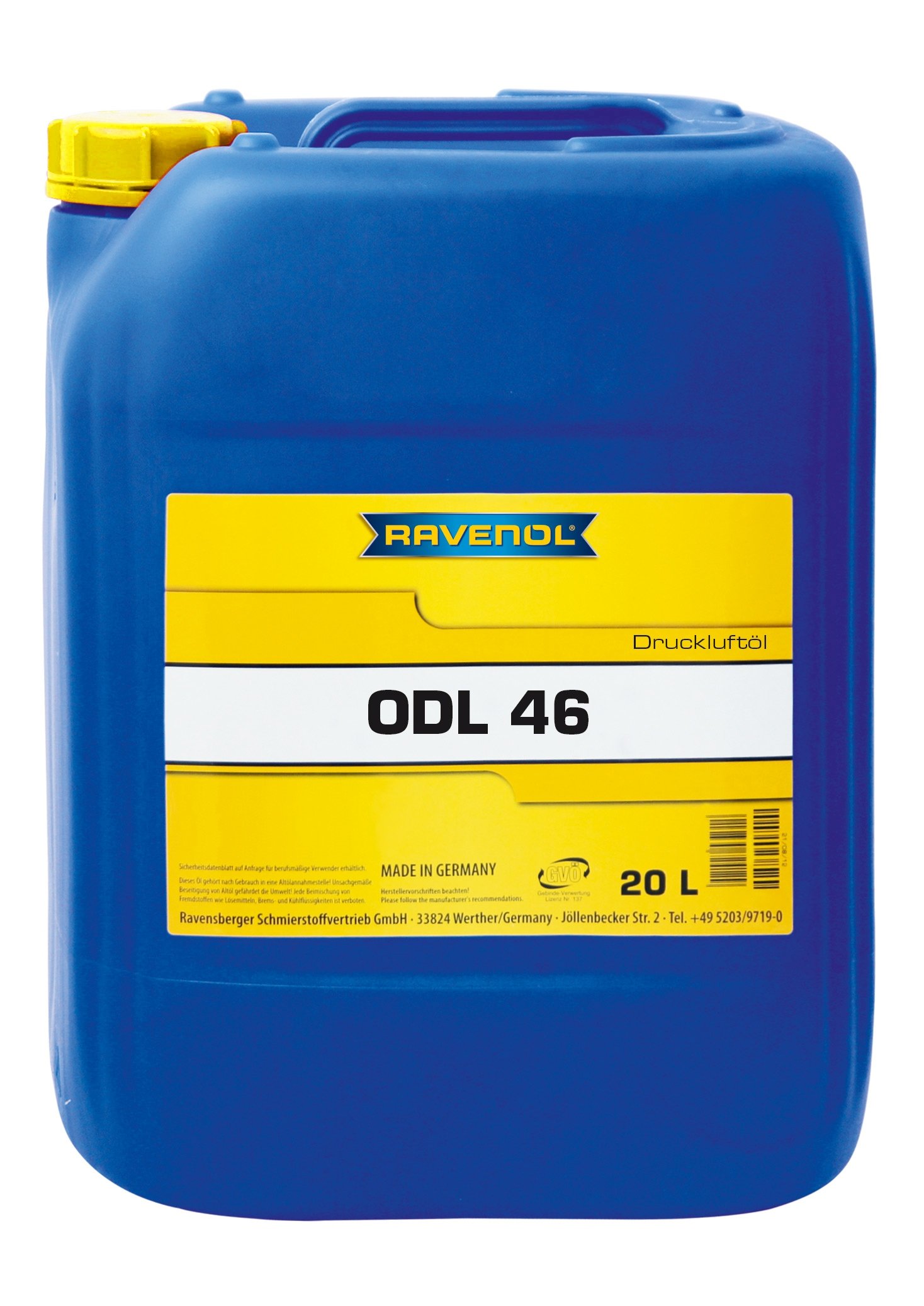

RAVENOL ODL 46 Druckluftoel

Category: Industrial oil
Item number: 1323405
Viscosity: 46
Oil type: Mineral
Application: Industry

RAVENOL ODL 46 Druckluftoel is a special-compressed-air-oil for pneumatic tools of all systems.

RAVENOL ODL 46 Druckluftoel bonds condensed water, has an excellent corrosion protection, wear protection and an extraordinary pressure absorption capacity, a good adhesive power and high aging resistance. Easily conveying- and spray ability, economy consumption. No deposits caused by cleaning effects. Full power of impact.

Application Note

RAVENOL ODL 46 Druckluftoel is especially suitable for pneumatic tools with sound-absorbing-case, for lubrication of rock drills, road breaker, chipping hammer and spade hammer, ram machines and other pneumatic aggregates. Application by pre-switch-lubricator according to working instructions or usable directly in the air pipe. Please follow the manufacturer´s instructions.

Characteristics

  • a high performance level
  • a very good viscosity temperature behaviour
  • a good adherence
  • a high aging resistance
  • a reliable wear protection
  • an excellent corrosion protection
  • neutrality of sealing materials

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³857,0EN ISO 12185
ColourhellgelbVISUELL
Viscosity at 100 °Cmm²/s7,2DIN 51562-1
Viscosity at 40 °Cmm²/s47,0DIN 51562-1
Viscosity Index VI113DIN ISO 2909
Pourpoint°C-27DIN ISO 3016
Flashpoint°C238DIN EN ISO 2592
FZG-Test A/8.3/90 Damage loading step%wt.12DIN 51354/2
Aging stability, TOSTst2000DIN 51587
Demulsification40ml/40ml/10min.DIN 51757

All indicated data are approximate values and are subject to the commercial fluctuations.
