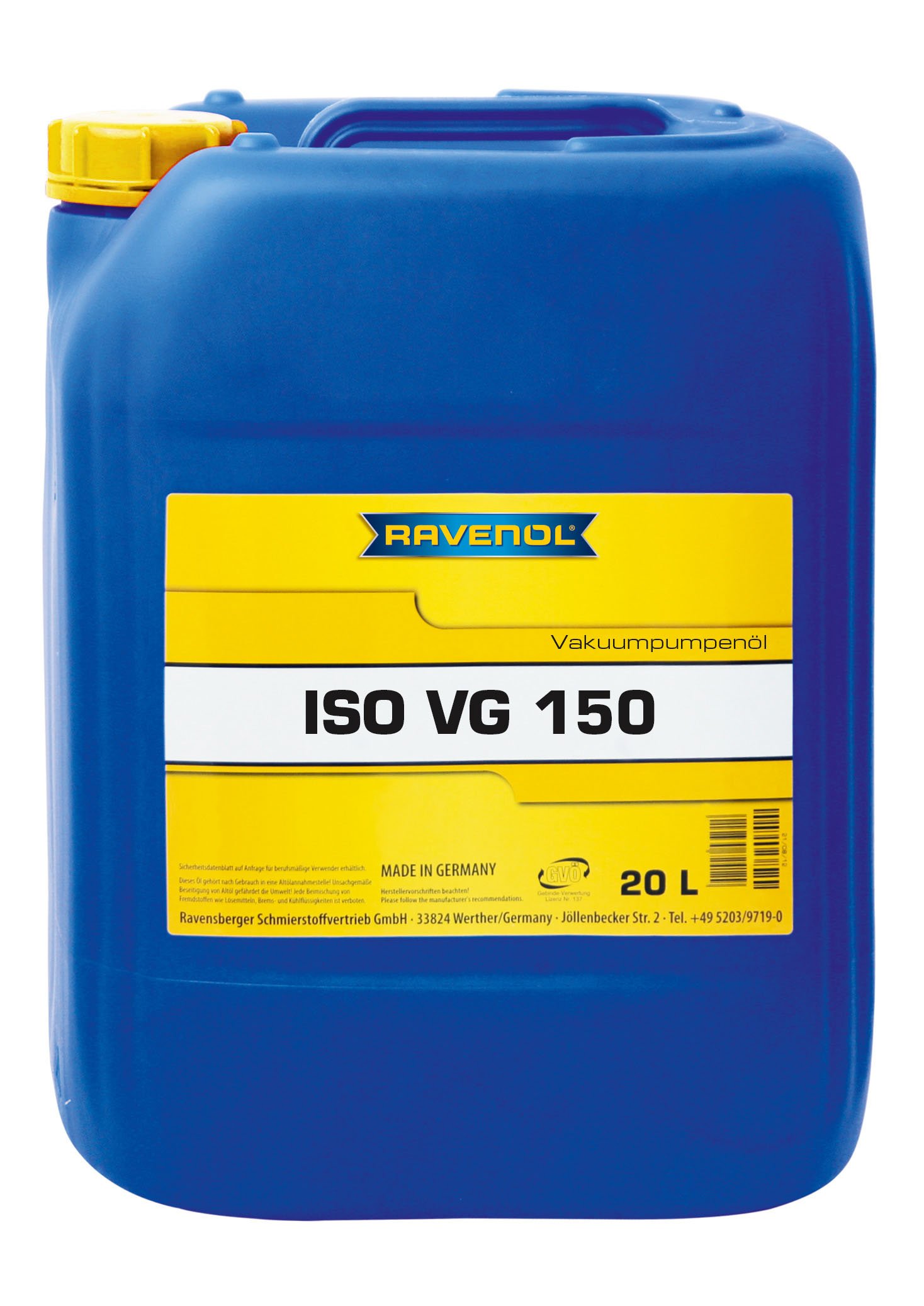

RAVENOL Vakuumpumpenöl ISO VG 150

Category Industrial oil

Item number 1330708

Viscosity 150

Specification 2 HLP, DIN 51506 VC, DIN 51524-2

Oil type Mineral

Recommendation AFNOR NF E 48-603 (HM HV), Vickers Vane Pump

Application Industry

RAVENOL Vakuumpumpenoel ISO VG 150 is optimum alloyed and high level performance industrial oil with a wide range of applications throughout the industry. It is characterized by good viscosity-temperature behavior, high resistance to aging and reliable corrosion protection. Effective additives ensure even under extreme loads an excellent wear protection. Neutral behavior towards sealing materials.

Application Note

RAVENOL Vakuumpumpenoel ISO VG 150 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.

RAVENOL Vakuumpumpenoel ISO VG 150 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.

Characteristics

  • High performance level
  • Very good viscosity-temperature behavior
  • High resistance to aging
  • Excellent wear protection
  • Reliable corrosion protection
  • Very good oxidation stability
  • Very good demulsification
  • Excellent air release, which largely eliminates foam formation
  • Neutral from over plastic seals
  • Low pour point

Technical Product Data

PropertyUnitDataAudit
Colour hellbraun VISUELL
Acid Number TAN 0,40 mg KOH/g ASTM D664
Sulphated Ash 0,06 % wt. DIN 51 575
Viscosity at 100 °C 14,6 mm²/s DIN 51562-1
Viscosity at 40 °C 150,0 mm²/s DIN 51562-1
Viscosity Index VI 95 DIN ISO 2909
Density at 20 °C 886,0 kg/m³ EN ISO 12185
Flashpoint 240 °C DIN EN ISO 2592
Pourpoint -21 °C DIN ISO 3016
