Category:
Industrial oil
Item number:
1330705
Viscosity:
46
Oil type:
Mineral
Recommendations:
Alcatel 100,
Alcatel 119,
Alcatel 120,
Balzers P3,
Becker Vakuumpumpen,
Beckmann 19,
BUSCH VM,
BUSCH VMH,
Edwards Ultragrade 19,
Fisherbrand 19,
Hyvac 93055,
Kinney Type A,
Leybold-Heraeus 175,
PVR Rotant,
SAVANT SPO-1,
Ulvac 100
Application:
Industry

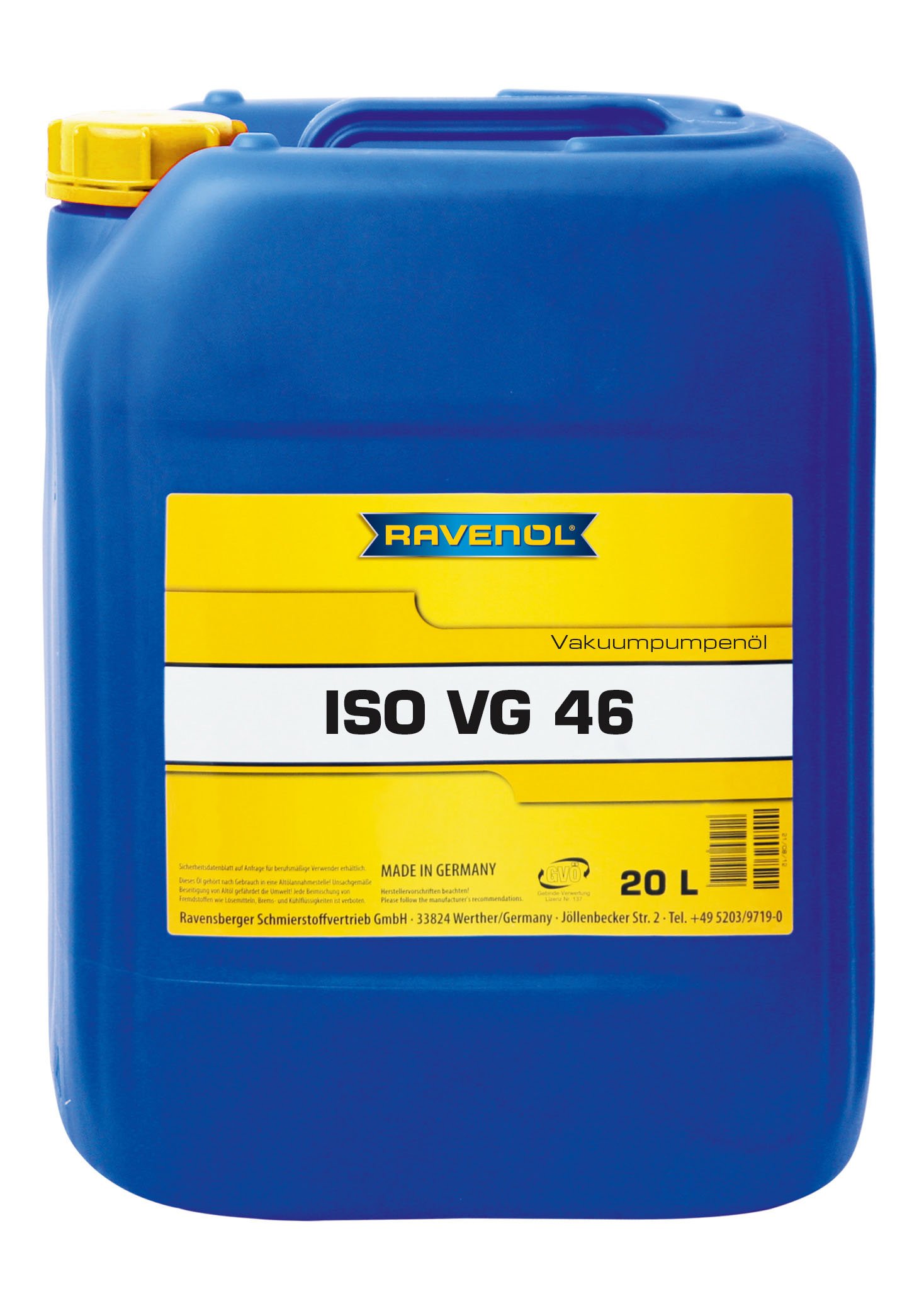

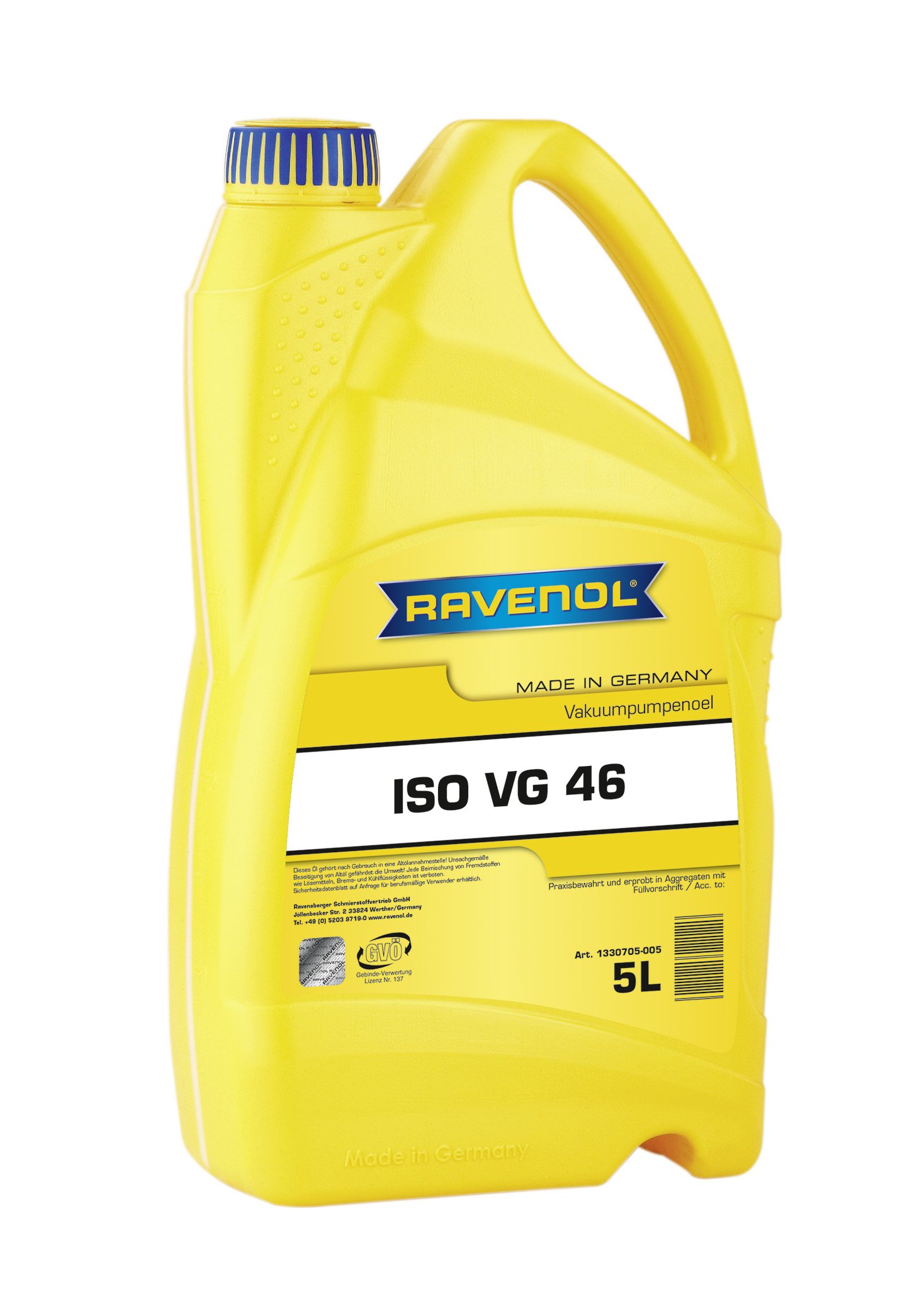

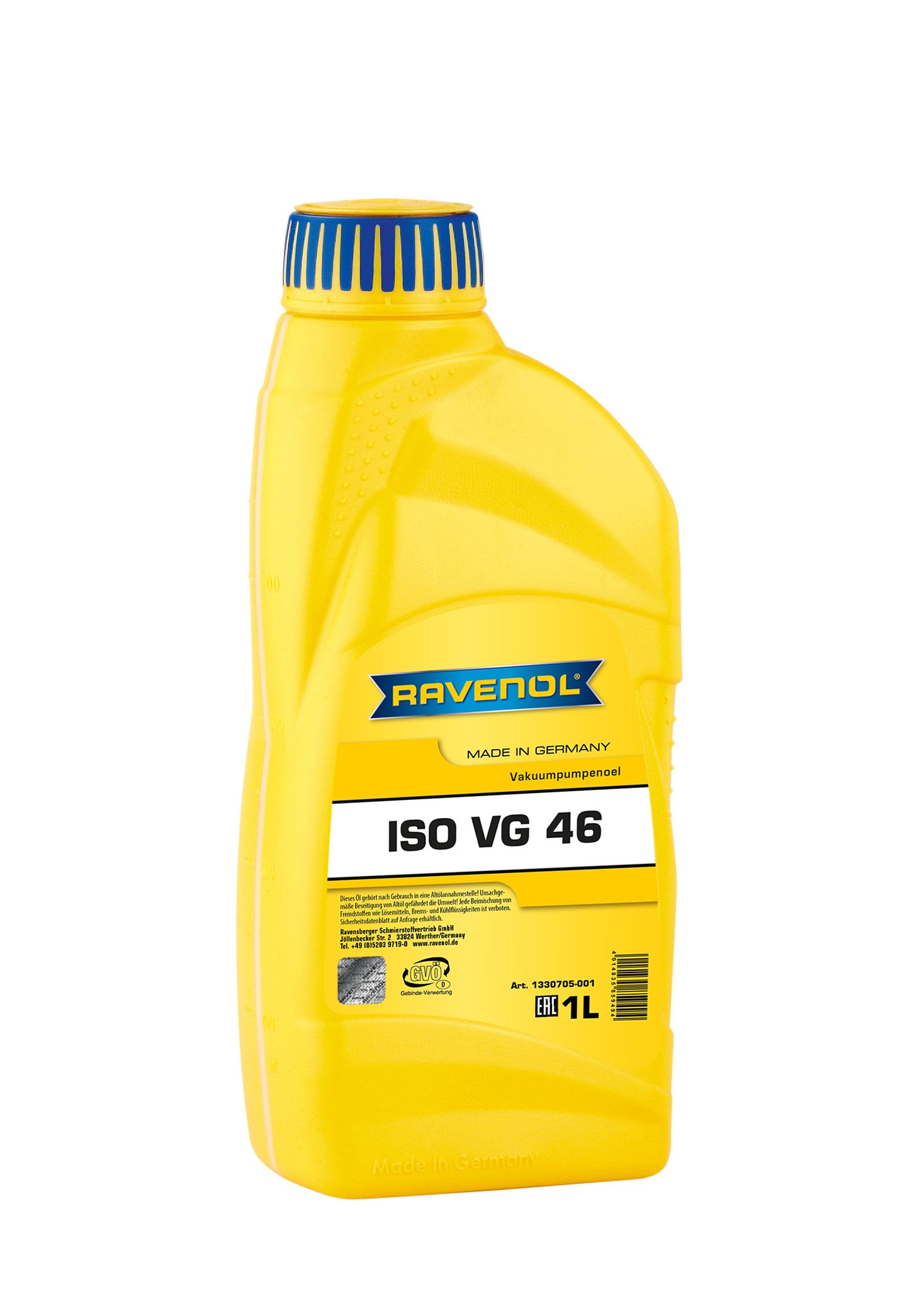

RAVENOL Vakuumpumpenöl ISO VG 46 is optimum alloyed and high level performance industrial oil with a wide range of applications throughout the industry. It is characterized by good viscosity-temperature behavior, high resistance to aging and reliable corrosion protection. Effective additives ensure even under extreme loads an excellent wear protection. Neutral behavior towards sealing materials.
Application instructions
RAVENOL Vakuumpumpenöl ISO VG 46 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenöl ISO VG 46 oil can be used very well for the lubrication of crankcases.
Characteristics
- High performance level
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Neutral to seal materials
Technical Product Data
| Characteristics | Property | Data | Audit |
|---|---|---|---|
| Colour | hellgelb | VISUELL | |
| Boiling point at 0,01 bar | 112 | DIN 51757 | |
| Viscosity at 100 °C | mm²/s | 7,4 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 47,2 | DIN 51562-1 |
| Viscosity Index VI | 121 | DIN ISO 2909 | |
| Density at 20 °C | kg/m³ | 854,0 | EN ISO 12185 |
| Flashpoint | °C | 244 | DIN EN ISO 2592 |
| Carbon residue Conradson | % | 0,05 | DIN 51551 |
| Pourpoint | °C | -36 | DIN ISO 3016 |
