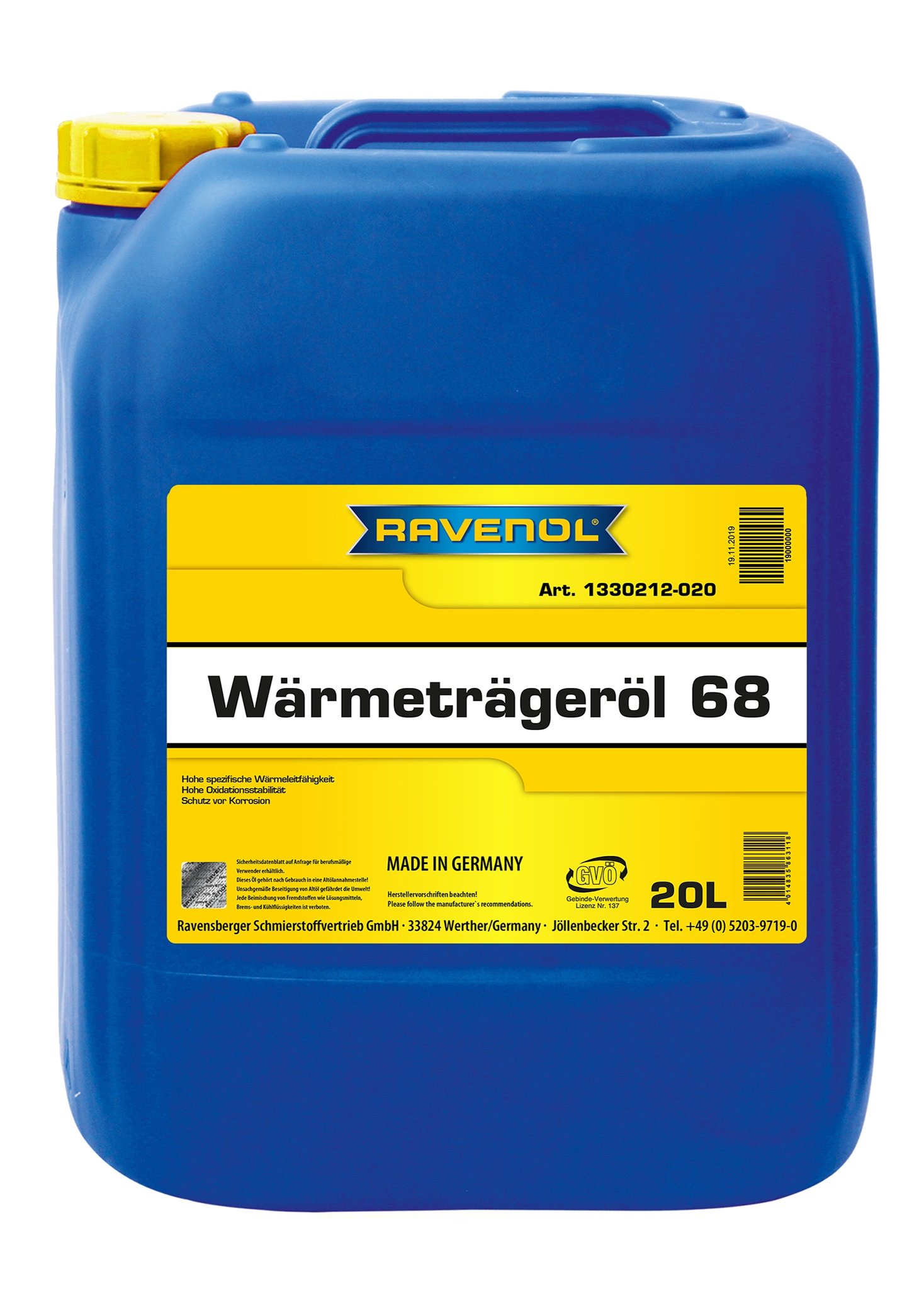

RAVENOL Waermetraegeroel 68

Category Industrial oil

Item number 1330212

Viscosity 68

Oil type Mineral

Application Industry

RAVENOL Wärmeträgeroel 68 is mineral oil based heat-transfer oil which is suitable for industrial operation of closed heat transfer systems.

RAVENOL Wärmeträgeroel 68 offers high thermal conductivity, combined with high thermal stability and high resistance to oxidation.

RAVENOL Wärmeträgeroel 68 is an excellent heat transfer oil that meets the specified requirements.

Application Note

RAVENOL Wärmeträgeroel 68 is particularly suitable for use in closed heating systems. The maximum flow temperature should not exceed 320°C. The maximum oil film temperature is 350°C. The direct contact of the oil with the ambient air must be avoided, as this would accelerate aging. We recommend cleaning of the entire heat transfer system before each new filling. A non-maintenance justice purified plant achieves no optimum efficiency.


  • A very stable and excellent viscosity behavior
  • High thermal conductivity
  • High oxidation stability
  • Protection against corrosion

Technical Product Data

Density at 20 °C 874,0 kg/m³ EN ISO 12185
Colour gelb VISUELL
Viscosity at 40 °C 65,5 mm²/s DIN 51562-1
Viscosity Index VI 103 DIN ISO 2909
Pourpoint -27 °C DIN ISO 3016
Flashpoint 242 °C DIN EN ISO 2592
