RAVENOL Low Emission Truck SAE 10W-40

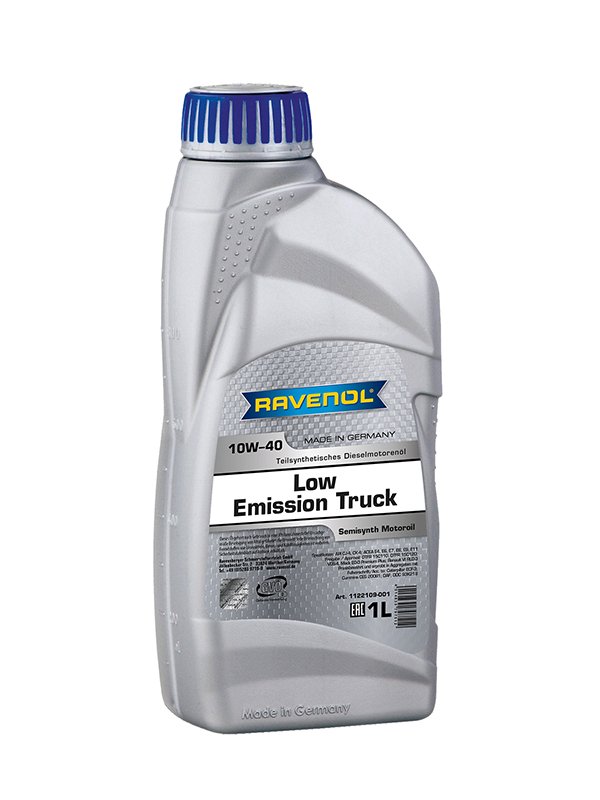

1 L | 1122109-001

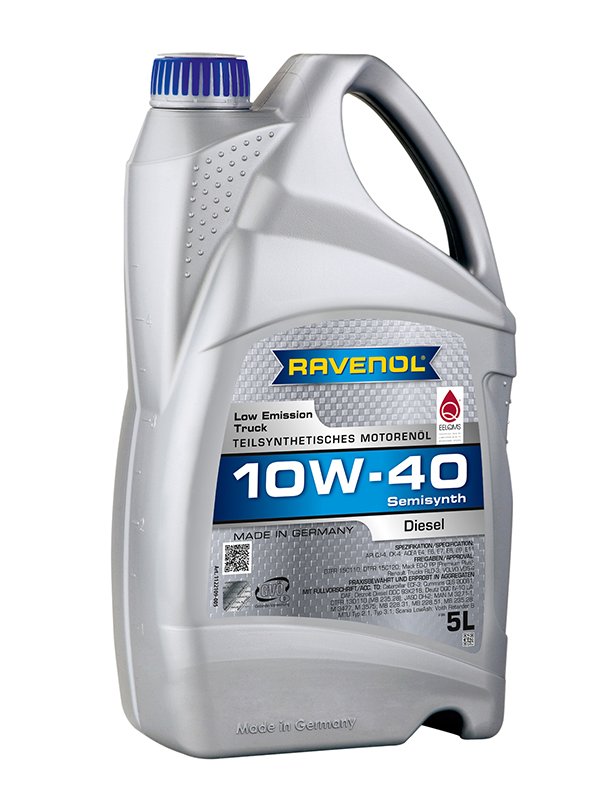

5 L | 1122109-005

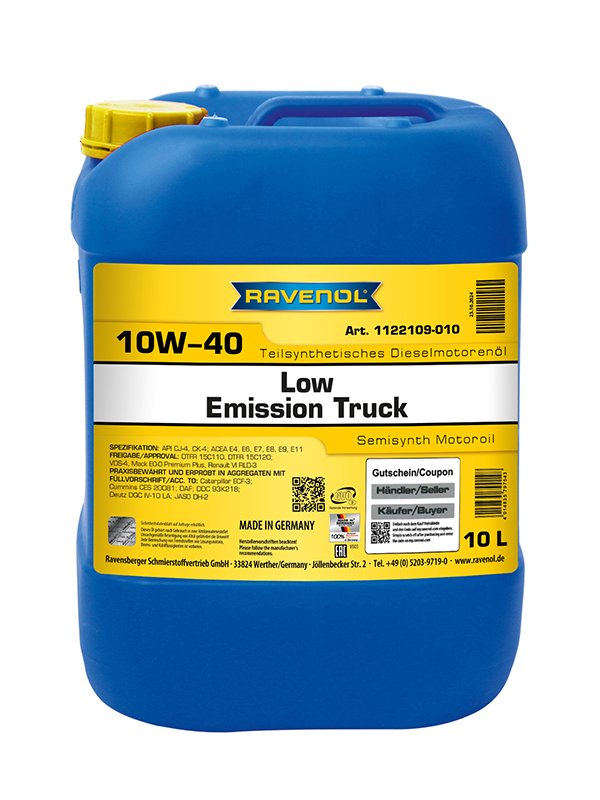

10 L | 1122109-010

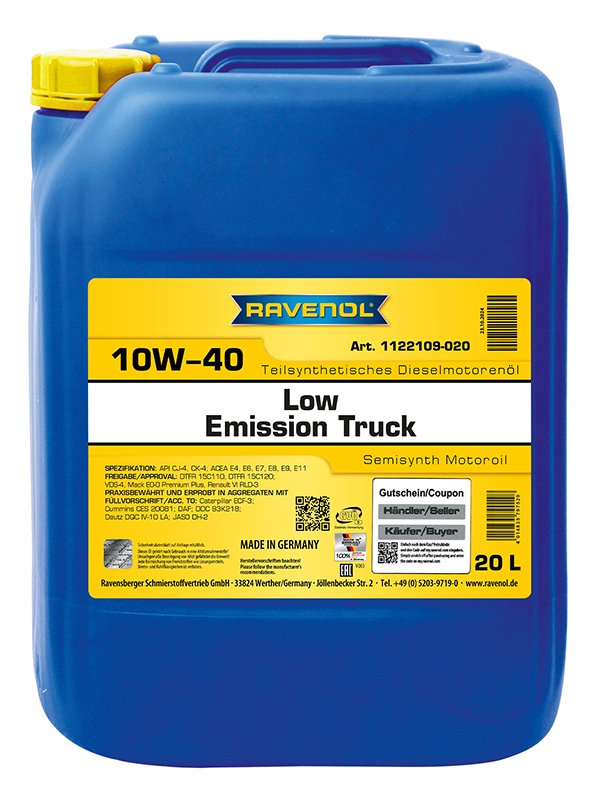

20 L | 1122109-020
20 L | 1122109-B20
60 L | 1122109-060
60 L | 1122109-D60
208 L | 1122109-208
208 L | 1122109-D28
1000 L | 1122109-700

Category Truck engine oil

Item number 1122109

Viscosity 10W-40

Specification ACEA E4, ACEA E7, ACEA E9, ACEA E6, API CI-4, API CJ-4, API CK-4

Oil type Semi-Synthetic

Approvals Mack EO-O PP (Premium Plus), MAN M 3271-1, MAN M 3477, MAN M 3575, MB-Freigabe 228.31, MB-Freigabe 228.51, Renault Trucks RLD-3, VOLVO VDS-4

Recommendation Caterpillar ECF-3, Cummins CES 20081, DAF, Detroit Diesel DDC 93K218, Deutz DQC IV-10 LA, JASO DH-2, MB 235.28, MTU Typ 2.1, MTU Typ 3.1, Scania LowAsh, Voith Retarder B

Application Truck, Agricultural machinery

RAVENOL Low Emission Truck SAE 10W-40 is an all-season semi-synthetic multigrade SHPD engine oil (Super High Performance Diesel), which has been developed to the exhaust emission standards Euro V and Euro VI and is used in extremely heavy duty commercial vehicle diesel engines.

RAVENOL Low Emission Truck SAE 10W-40 is suitable for application in exhaust-optimized engines with exhaust gas after treatment.

RAVENOL Low Emission Truck SAE 10W-40 reduces friction, wear and fuel consumption and provides for longer oil change intervals in turbo diesel engines.

RAVENOL Low Emission Truck SAE 10W-40 with shear stable additives improves performance, reliability and cleanliness of the engines.

Application Note

RAVENOL Low Emission Truck SAE 10W-40 is a year round high performance motor oil, especially designed for economic use in Euro V and Euro VI engines with after treatment systems in the viscosity class SAE 10W -40 heavy duty vehicle diesel engines.

RAVENOL Low Emission Truck SAE 10W-40 is preferred recommended by the extended oil change intervals specified by the manufacturer in turbo diesel engines.

Technical Product Data

Property	Unit	Data	Audit
Density at 20 °C	859,0	kg/m³	EN ISO 12185
Colour	braun		VISUELL
Viscosity at 100 °C	14,1	mm²/s	DIN 51562-1
Viscosity at 40 °C	90,2	mm²/s	DIN 51562-1
Viscosity Index VI	161		DIN ISO 2909
CCS Viscosity at -25 °C	5089	mPa*s	ASTM D5293
Pourpoint	-39	°C	DIN ISO 3016
Flashpoint	230	°C	DIN EN ISO 2592
tbn	9,2	mg KOH/g	ASTM D2896
Sulphated Ash	0,83	%wt.	DIN 51575
