RAVENOL ATF M 6-Serie

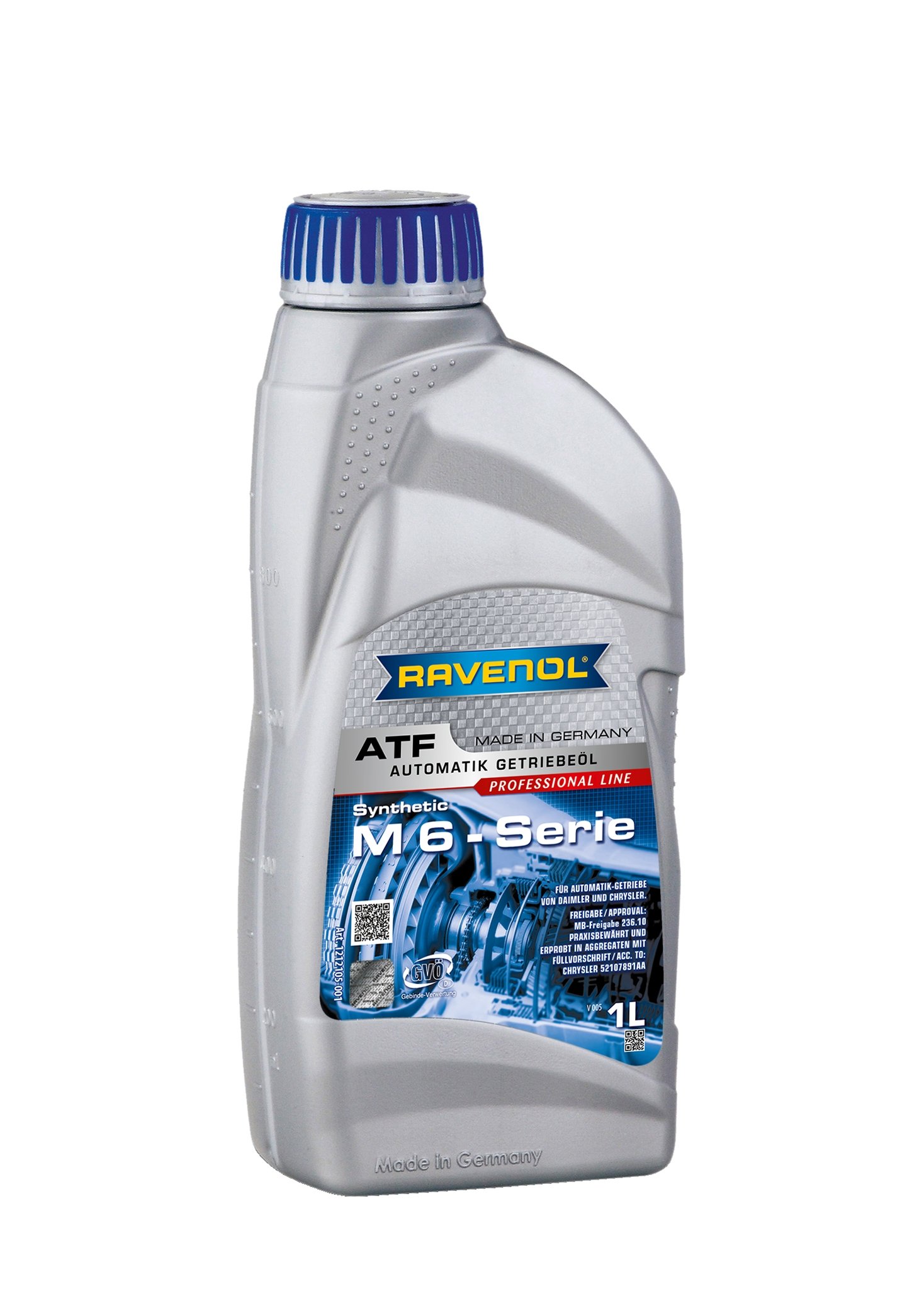

RAVENOL ATF M 6-Serie 1 L- 1212105-001
ART.-NR. 1212105-001

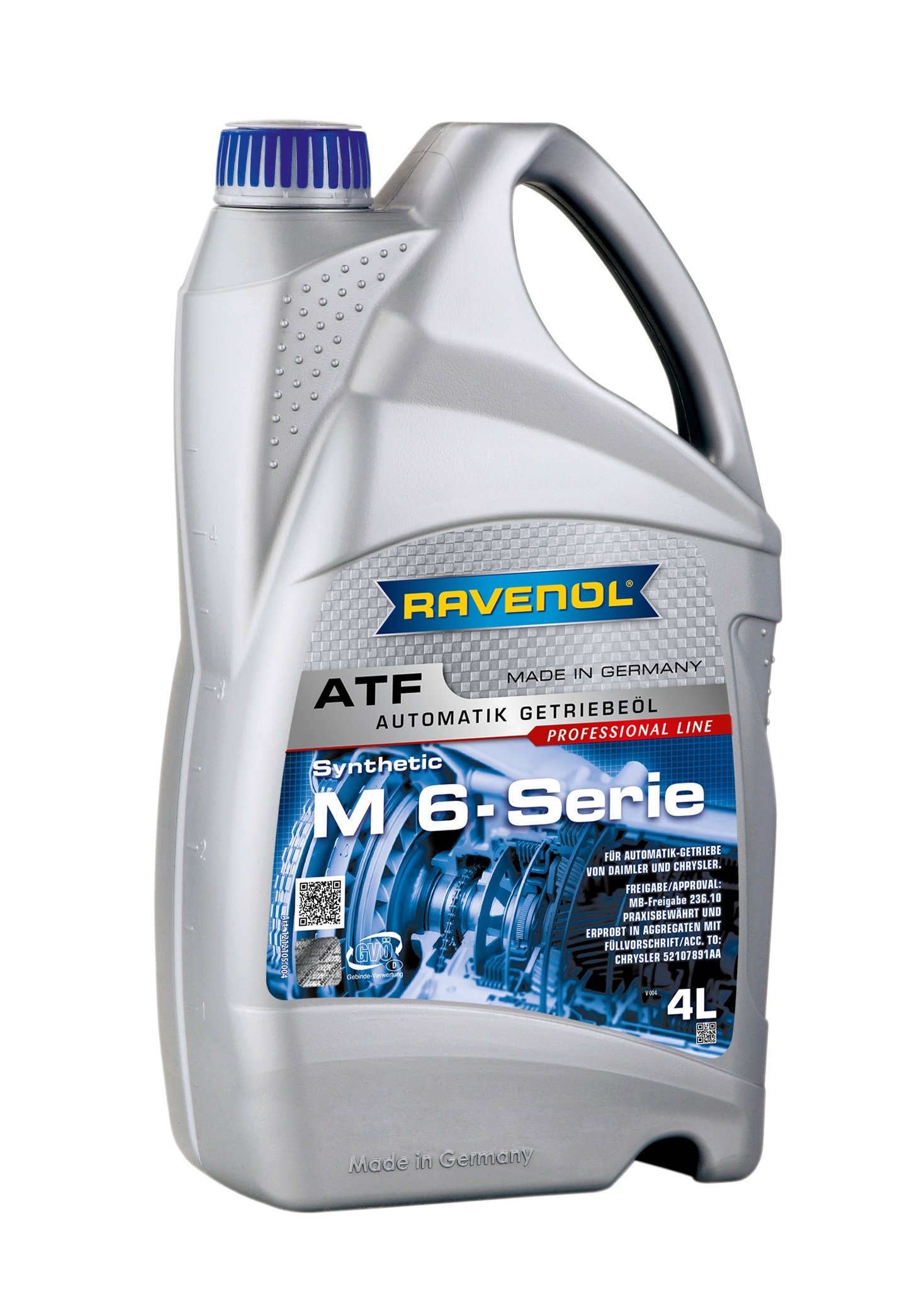

RAVENOL ATF M 6-Serie 4 L- 1212105-004
ART.-NR. 1212105-004

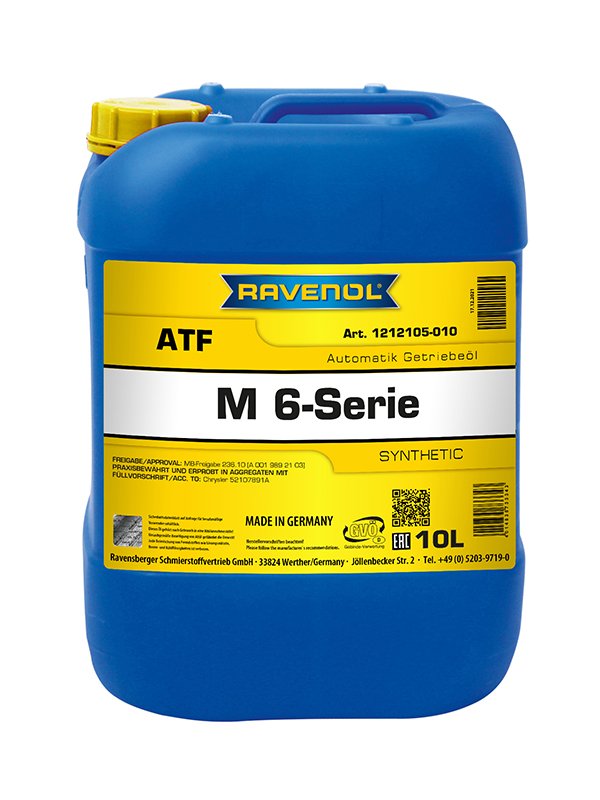

RAVENOL ATF M 6-Serie 10 L- 1212105-010
ART.-NR. 1212105-010

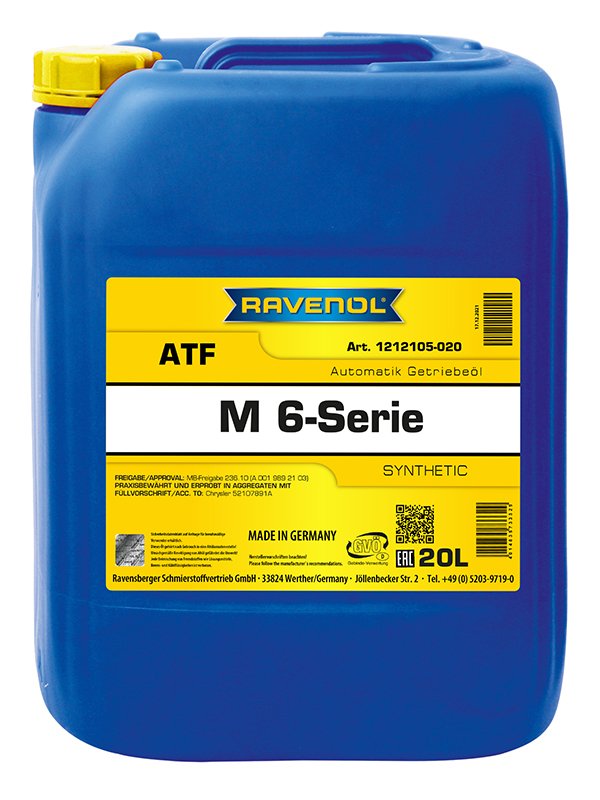

RAVENOL ATF M 6-Serie 20 L- 1212105-020
ART.-NR. 1212105-020
RAVENOL ATF M 6-Serie 20 L- 1212105-B20
ART.-NR. 1212105-B20

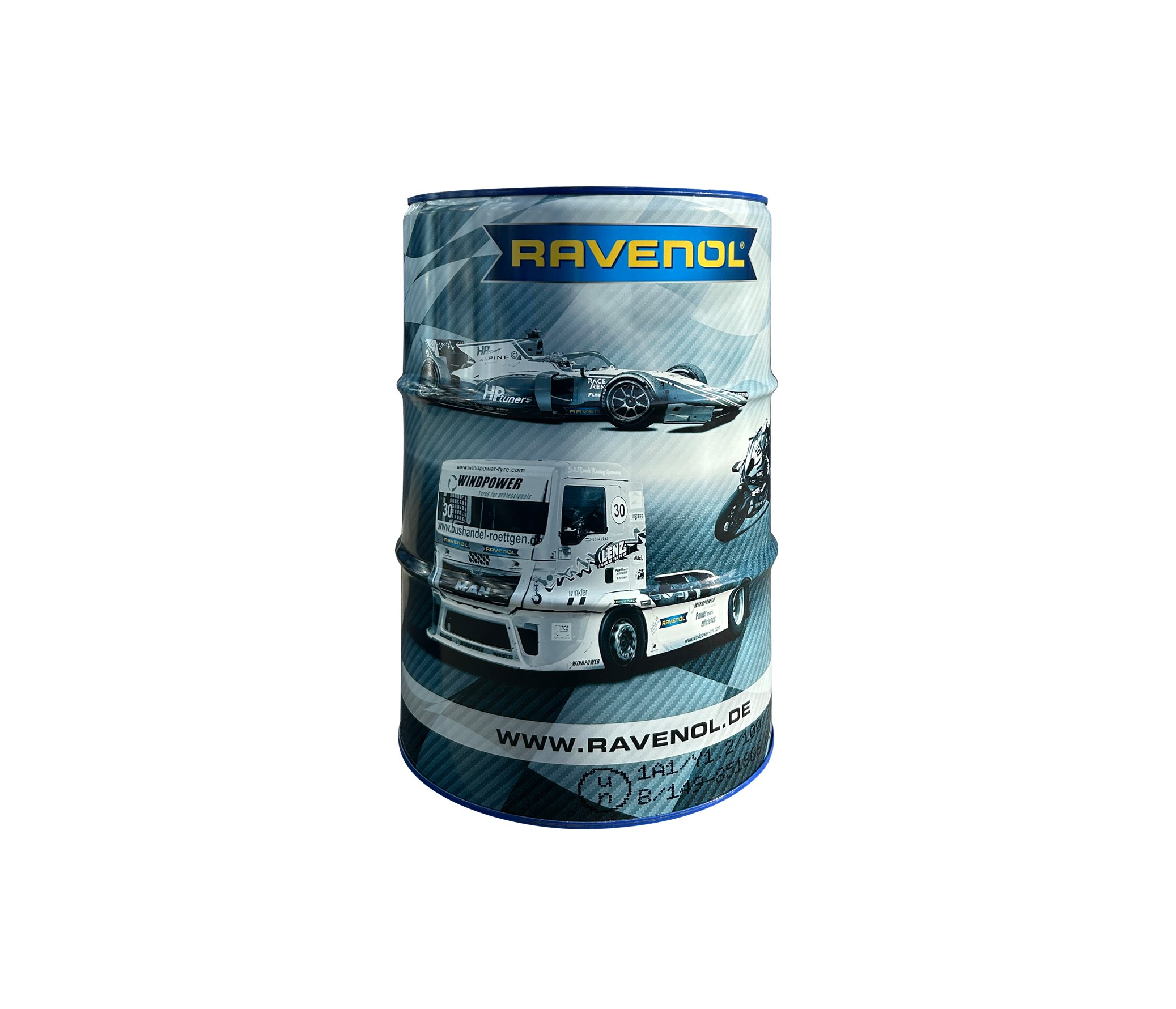

RAVENOL ATF M 6-Serie 60 L- 1212105-060
ART.-NR. 1212105-060
RAVENOL ATF M 6-Serie 60 L- 1212105-D60
ART.-NR. 1212105-D60

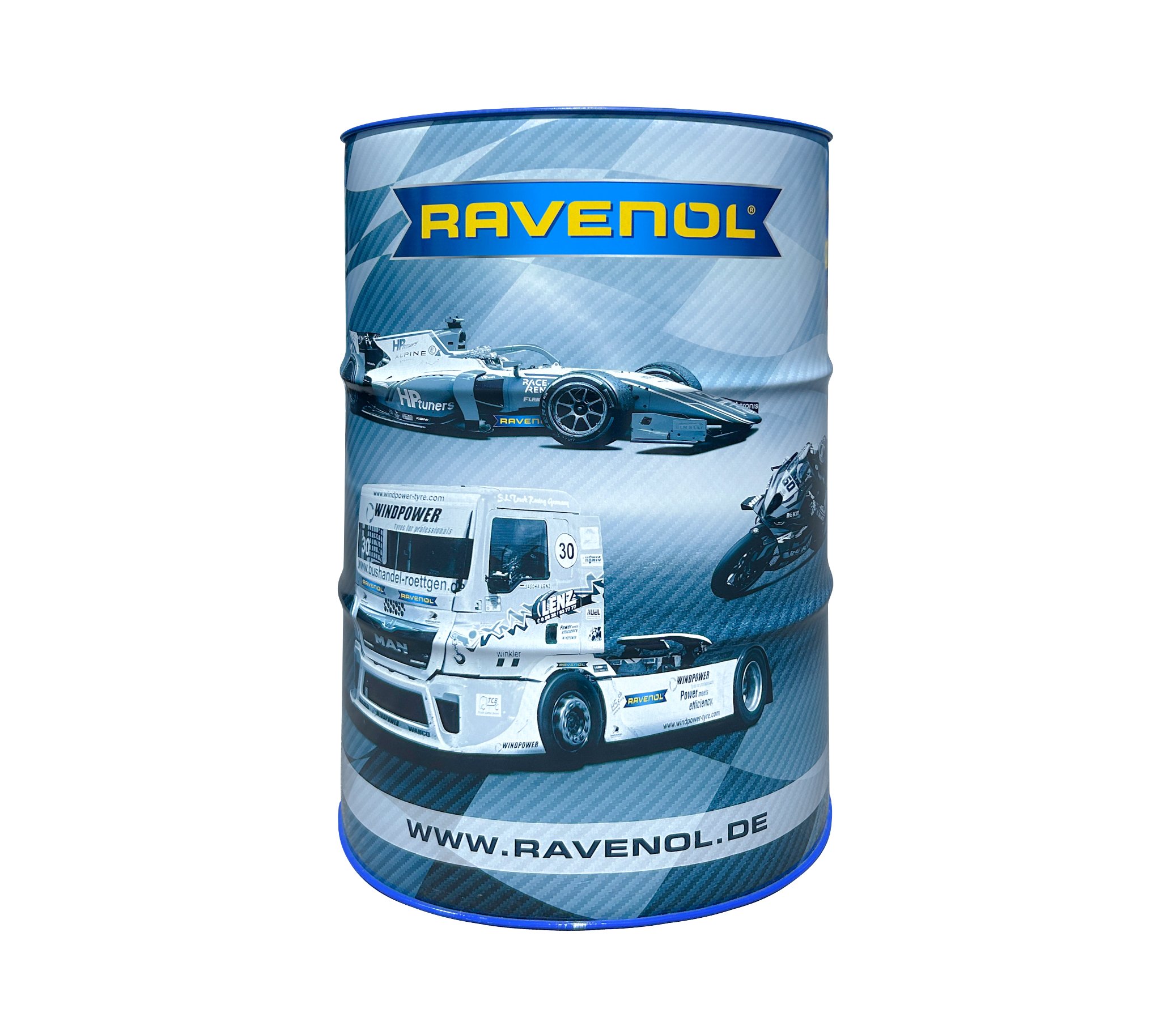

RAVENOL ATF M 6-Serie 208 L- 1212105-208
ART.-NR. 1212105-208
RAVENOL ATF M 6-Serie 208 L- 1212105-D28
ART.-NR. 1212105-D28
RAVENOL ATF M 6-Serie 1000 L- 1212105-700
ART.-NR. 1212105-700
  • 1 L | 1212105-001
  • 4 L | 1212105-004
  • 10 L | 1212105-010
  • 20 L | 1212105-020
  • 20 L | 1212105-B20
  • 60 L | 1212105-060
  • 60 L | 1212105-D60
  • 208 L | 1212105-208
  • 208 L | 1212105-D28
  • 1000 L | 1212105-700
Fabrication
synthetic
Approvals
MB-Approval 236.10 (A 001 989 21 03)
Categories
ATF-Transmission fluids for automatic transmissions - Professional line
Recommendations
Chrysler 52107891AA

ATF Professional Line

RAVENOL ATF M-6 Serie is a synthetic ATF (Automatic Transmission Fluid), designed on the basis of high quality hydrocrack oils with a special additive and inhibition, which ensure a perfect function of the automatic transmission.

RAVENOL ATF M-6 Serie is one of the ATF (Automatic Transmission Fluid) for all 5-motion automatic transmission of Mercedes Benz with controlled torque converter lockup clutch AG 722.6 and AG 722.7.

RAVENOL ATF M 6-Serie guarantees a maximum wear protection in every operating state.

Application Notes

RAVENOL ATF M-6 Serie was developed for use automatic transmission, especially for 5-gear transmission with with controlled torque converter lockup clutch AG 722.6 and AG 722.7 from Mercedes Benz.

Characteristics

RAVENOL ATF M 6-Serie offers:

  • a very good lubricating ability even at low temperatures in winter
  • a high, stable viscosity index
  • a very low pour point
  • a very good oxidation stability
  • protection against wear, corrosion and foam formation
  • good balanced coefficient of friction
  • a neutral behaviour against sealing materials
  • a neutral behaviour because of inhibition against non-ferrous metals

·

RAVENOL special transmission

fluid is special development for special gear and cannot be selected on the

basis of technical parameters (viscosity, etc.). Therefore the decision was

made not to give technical data.

·

Please note: RAVENOL

special transmission fluid is exclusively to apply under the original number,

as indicated in the product information. Not sure of the correct transmission

fluid, you can ask your garage or the car dealer with respect to the original

OEM gear type and number or consult our advisers. It must be specified the VIN

code (Vehicle Identification Number) of your vehicle.

·

Misapplication of RAVENOL

special transmission fluid can lead to malfunction of the transmission shifting

problems, increased fuel consumption, unwanted slip behavior, etc. cause and

cause the failure of the transmission.

·

Ravensberger

Schmierstoffvertrieb GmbH does not liable for transmission failures in case of

wrong selection of RAVENOL special transmission fluid.

PropertyUnitDataAudit
Density at 20°Ckg/m³847,0EN ISO 12185
Colourredvisual
Pourpoint°C-51DIN ISO 3016
