RAVENOL TTC Concentrate Protect C11

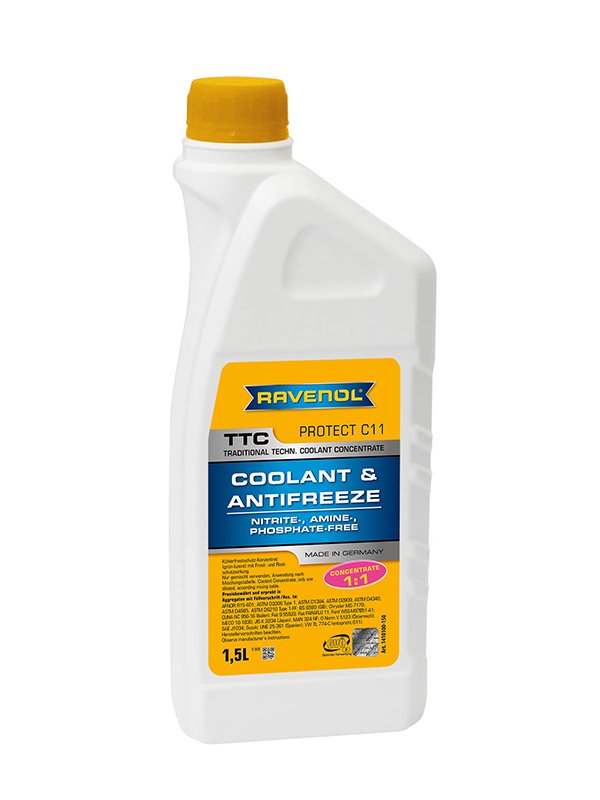

RAVENOL TTC Concentrate Protect C11 1,5 L- 1410100-150
ART.-NR. 1410100-150

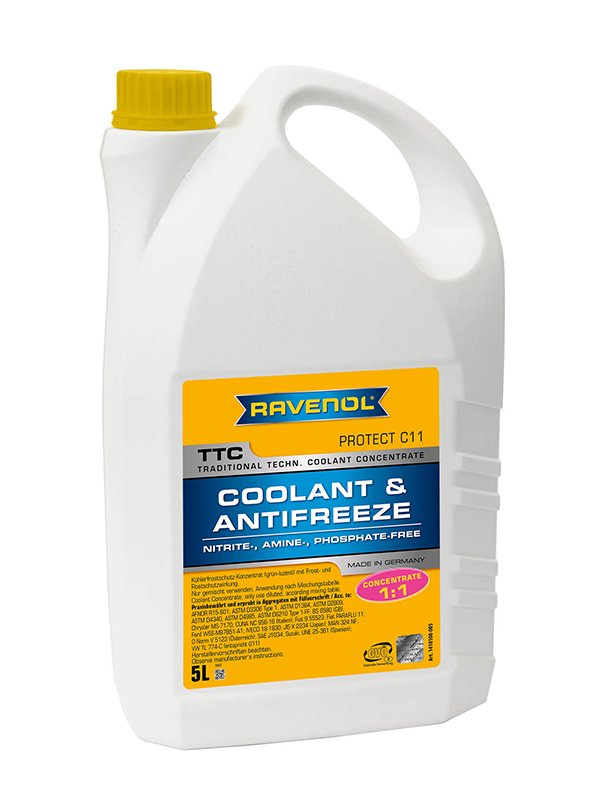

RAVENOL TTC Concentrate Protect C11 5 L- 1410100-005
ART.-NR. 1410100-005
RAVENOL TTC Concentrate Protect C11 10 L- 1410100-010
ART.-NR. 1410100-010

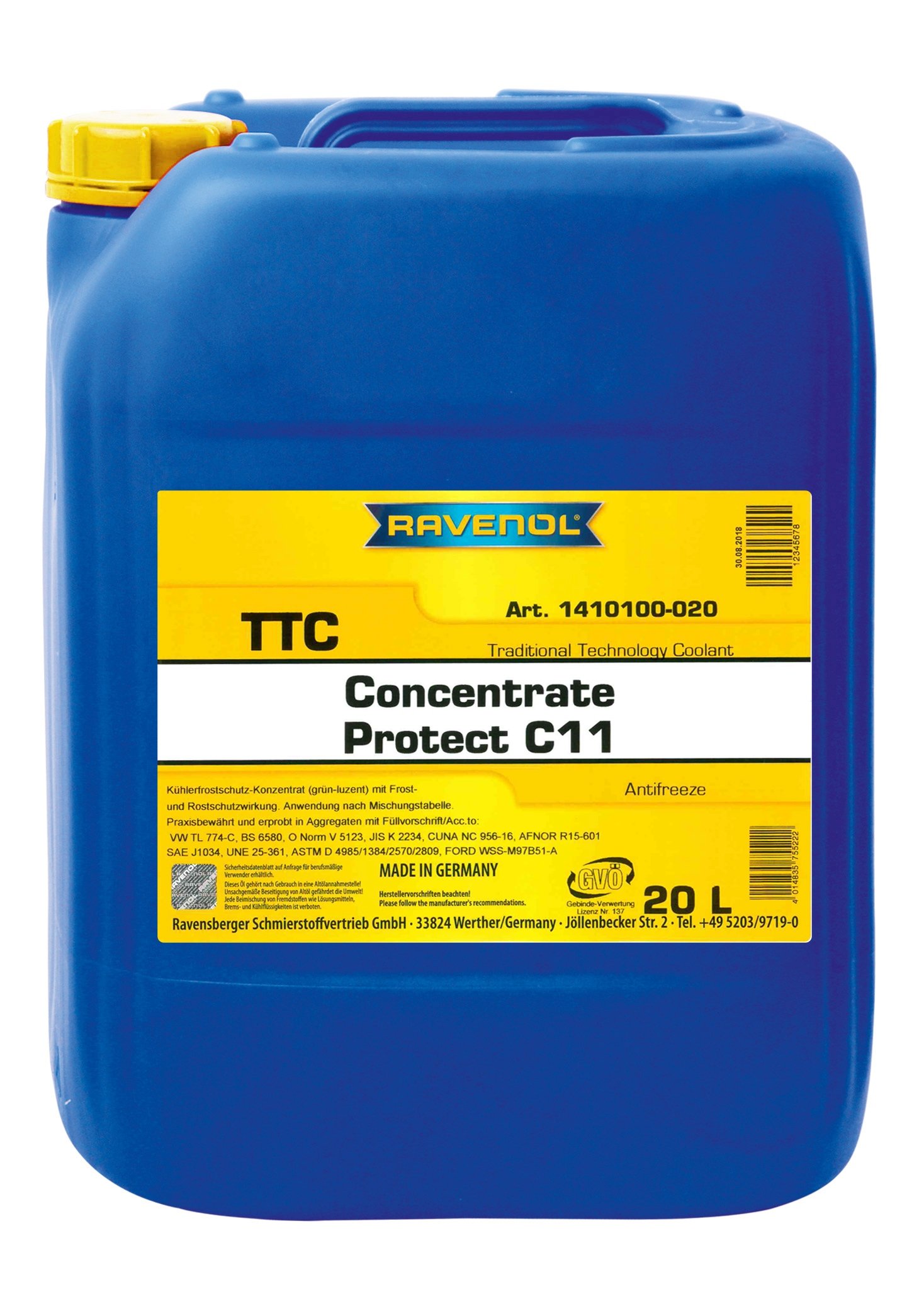

RAVENOL TTC Concentrate Protect C11 20 L- 1410100-020
ART.-NR. 1410100-020
RAVENOL TTC Concentrate Protect C11 20 L- 1410100-B20
ART.-NR. 1410100-B20
RAVENOL TTC Concentrate Protect C11 60 L- 1410100-060
ART.-NR. 1410100-060
RAVENOL TTC Concentrate Protect C11 60 L- 1410100-D60
ART.-NR. 1410100-D60
RAVENOL TTC Concentrate Protect C11 1000 L- 1410100-700
ART.-NR. 1410100-700
  • 1,5 L | 1410100-150
  • 5 L | 1410100-005
  • 10 L | 1410100-010
  • 20 L | 1410100-020
  • 20 L | 1410100-B20
  • 60 L | 1410100-060
  • 60 L | 1410100-D60
  • 1000 L | 1410100-700
Categories
Frost protection and winter chemistry
Recommendations
VW TL 774-C (entspricht G11)
MAN 324NF
AFNOR R15-601 (Frankreich)
BS 6580 (GB)
CUNA NC 956-16 (Italien)
JIS K 2234 (Japan)
O Norm V 5123 (Österreich)
UNE 25-361 (Spanien)
ASTM D1384
ASTM D 2570
ASTM D2809
ASTM D3306 Type 1
ASTM D4985
ASTM D6210 Typ I-FF
SAE J1034
Chrysler MS-7170
FIAT 9.55523
FIAT PARAFLU 11
Ford WSS-M97B51-A
IVECO 18-1830
Suzuki

RAVENOL TTC Concentrate Protect C11 is an eco-friendly 1.2- Ethanediol (monoethylene glycol) based nitrite, amine and phosphate-free coolant for cooling circuits in combustion engines which provides maintenance-free corrosion and frost protection. The product is formulated as a long-term coolant based on a proven inhibitor development.

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Therefore automakers subject coolants to long corrosion and cavitation tests.

RAVENOL TTC Concentrate Protect C11 protects the cooling system from corrosion, frost, and in the summer from overheating.

Application Notes

RAVENOL TTC Concentrate Protect C11 with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions:Clean cooling system, check for leaks, flush.

Mix RAVENOL TTC Concentrate Protect C11 with fresh water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

Mixing Chart:

Antifreeze protection untilParts AntifreezeParts Water
 - 12°C13
- 20°C12
 - 37°C11

Characteristics

RAVENOL TTC Concentrate Protect C11offers:

  • Excellent for light metal engines
  • Good reserve alkalinity
  • High-quality corrosion additives for optimal corrosion protection
  • Elastomer compatible with elastomers used in automotive radiators
PropertyUnitDataAudit
Density at 20°Ckg/m³1130,0EN ISO 12185
Colouryellow-green fluorescentvisual
Flash point°C112DIN 51 758
Boiling point°C155ASTM D 1120
pH-value (50 %, 20°C)8,4ASTM D 1287
Reserve alkalinityml 0,1 n HCL>20ASTM D 1121
Water contentGew.-%<5ASTM D 1123
Freezing point (50 %-Lösung)°C-37ASTM D 1177
