RAVENOL Hydrauliköl TS 10 (HLP)

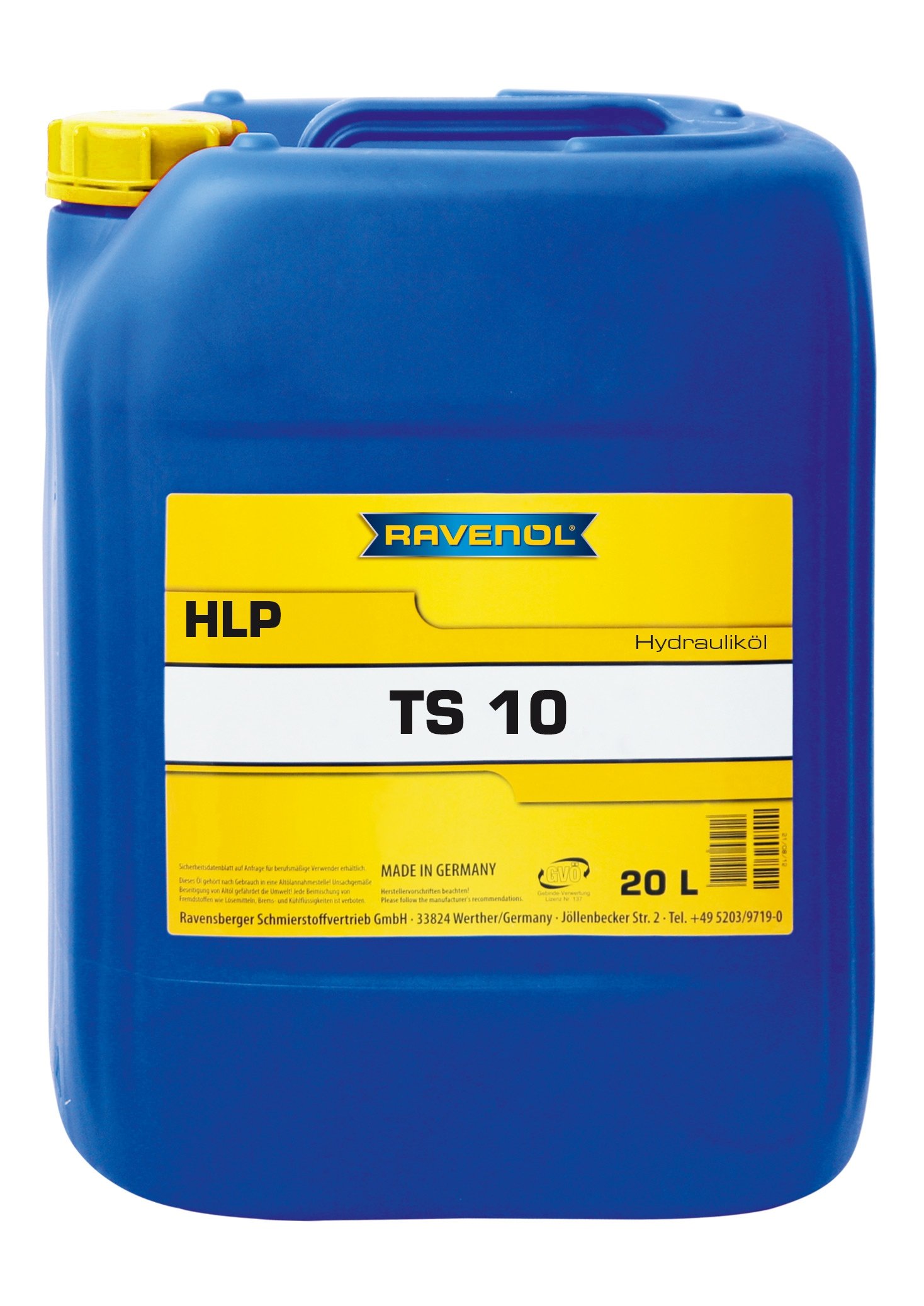

RAVENOL Hydrauliköl TS 10 (HLP) 20 L- 1323101-020
ART.-NR. 1323101-020
RAVENOL Hydrauliköl TS 10 (HLP) 20 L- 1323101-B20
ART.-NR. 1323101-B20
RAVENOL Hydrauliköl TS 10 (HLP) 1000 L- 1323101-700
ART.-NR. 1323101-700
  • 20 L | 1323101-020
  • 20 L | 1323101-B20
  • 1000 L | 1323101-700
Specifications
DIN 51 524, Part 2
Vickers-Pumpentest
FZG-Test A 8,3/90: 12. Laststufe
MIL-H 24 459
AFNOR NFE 48 603 HM
Fabrication
mineral
Categories
Hydraulic Oils / Compressor Oils
Recommendations
Vickers-Pumpentest
VDMA 24568/ ISO 15380
DENSION HF-2/ HF-0
FZG-Test A8, 3/90
AFNOR NFE 48 603 HM
MIL-H 24 459
Cincinnati Milacron P-68/ 69/ 70

RAVENOL Hydraulikoel TS 10 (HLP) is optimal alloyed mineral hydraulic oil with a high performance level and a wide application area of the whole industry.

RAVENOL Hydraulikoel TS 10 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

RAVENOL Hydraulikoel TS 10 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.

Application Notes

RAVENOL Hydraulikoel TS 10 (HLP) is for universally use in all hydraulic systems.

RAVENOL Hydraulikoel TS 10 (HLP) is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems.

RAVENOL Hydraulikoel TS 10 (HLP) is used for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.

Characteristics

RAVENOL Hydraulikoel TS 10 (HLP) offers:

  • a high performance level
  • a very good viscosity temperature behaviour
  • a high aging resistant
  • an excellent corrosion protection
  • a solid corrosion protection
  • mainly neutrality of sealing materials
PropertyUnitDataAudit
Density at 20°Ckg/m³837EN ISO 12185
Colourgelbvisual
Viscosity at 100°Cmm²/s2,9DIN 51 562
Viscosity at 40°Cmm²/s11,0DIN 51 562
Viscosity index VI114DIN ISO 2909
Pourpoint°C-33DIN ISO 3016
Flash point (COC)°C182DIN ISO 2592
