RAVENOL Kompressoren-Oel VDL 100

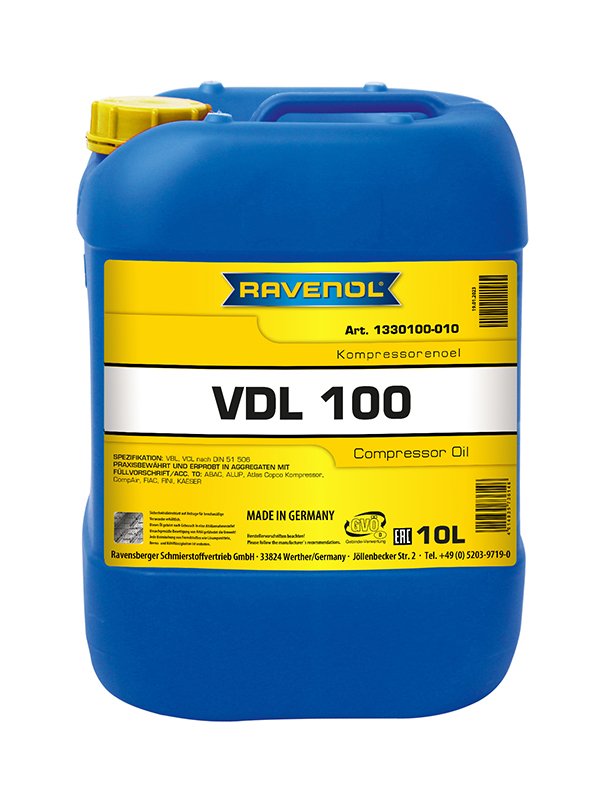

RAVENOL Kompressoren-Oel VDL 100 10 L- 1330100-010
ART.-NR. 1330100-010

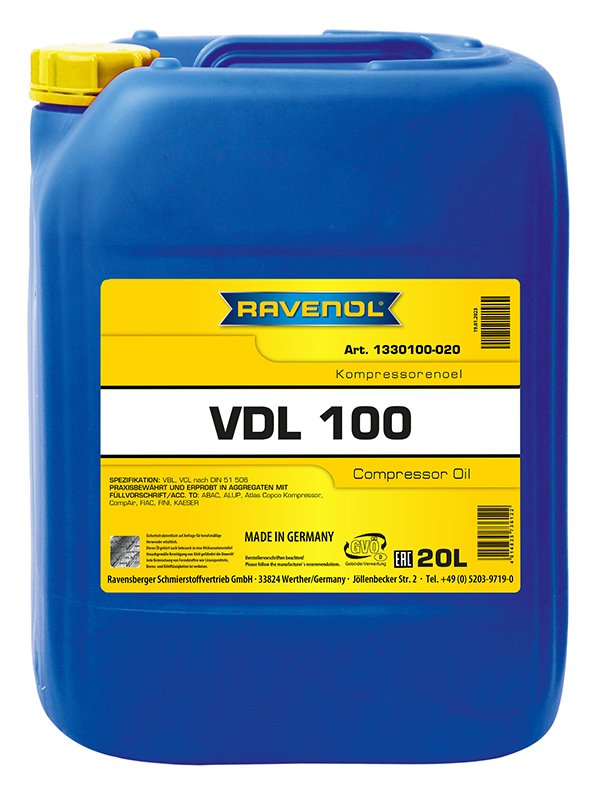

RAVENOL Kompressoren-Oel VDL 100 20 L- 1330100-020
ART.-NR. 1330100-020
RAVENOL Kompressoren-Oel VDL 100 20 L- 1330100-B20
ART.-NR. 1330100-B20
RAVENOL Kompressoren-Oel VDL 100 1000 L- 1330100-700
ART.-NR. 1330100-700
  • 10 L | 1330100-010
  • 20 L | 1330100-020
  • 20 L | 1330100-B20
  • 1000 L | 1330100-700
Specifications
VBL, VCL
Categories
Hydraulic Oils / Compressor Oils
Recommendations
ATLAS COPCO
AUDI
ALUP
CompAir
FIAC
FINI
KAESER

RAVENOL Kompressorenöl VDL 100 meets the high requirements of DIN 51506. Specially designed with high quality, age-resistant base oils.

RAVENOL Kompressorenöl VDL 100 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.

RAVENOL Kompressorenöl VDL 100 provides a secure lubrication not only in the upper temperature range, also in the cold state of the compressor to achieve a reduction of wear. By selected and coordinated additive composition the tendency to coking and the formation of flammable residues is minimized.

Application Notes

RAVENOL Kompressorenöl VDL 100 can be used in stationary and mobile compressors with discharge temperatures up to 220°C.

RAVENOL Kompressorenöl VDL 100 can also be used for lubrication of engines and diesel engines where the manufacturer does not stipulate any HD motor oil.

Characteristics

RAVENOL Kompressorenöl VDL100 offers:

  • Excellent aging resistance
  • Best wear protection
  • Excellent viscosity-temperature behavior
  • Very good cold starting properties
  • Low coking tendency
PropertyUnitDataAudit
Density at 20°Ckg/m³866EN ISO 12185
Colourgelbbraunvisual
Viscosity at 100°Cmm²/s11,2DIN 51 562
Viscosity at 40°Cmm²/s100,2DIN 51 562
Viscosity index VI97DIN ISO 2909
Pourpoint°C-22DIN ISO 3016
Flash point (COC)°C235DIN ISO 2592
