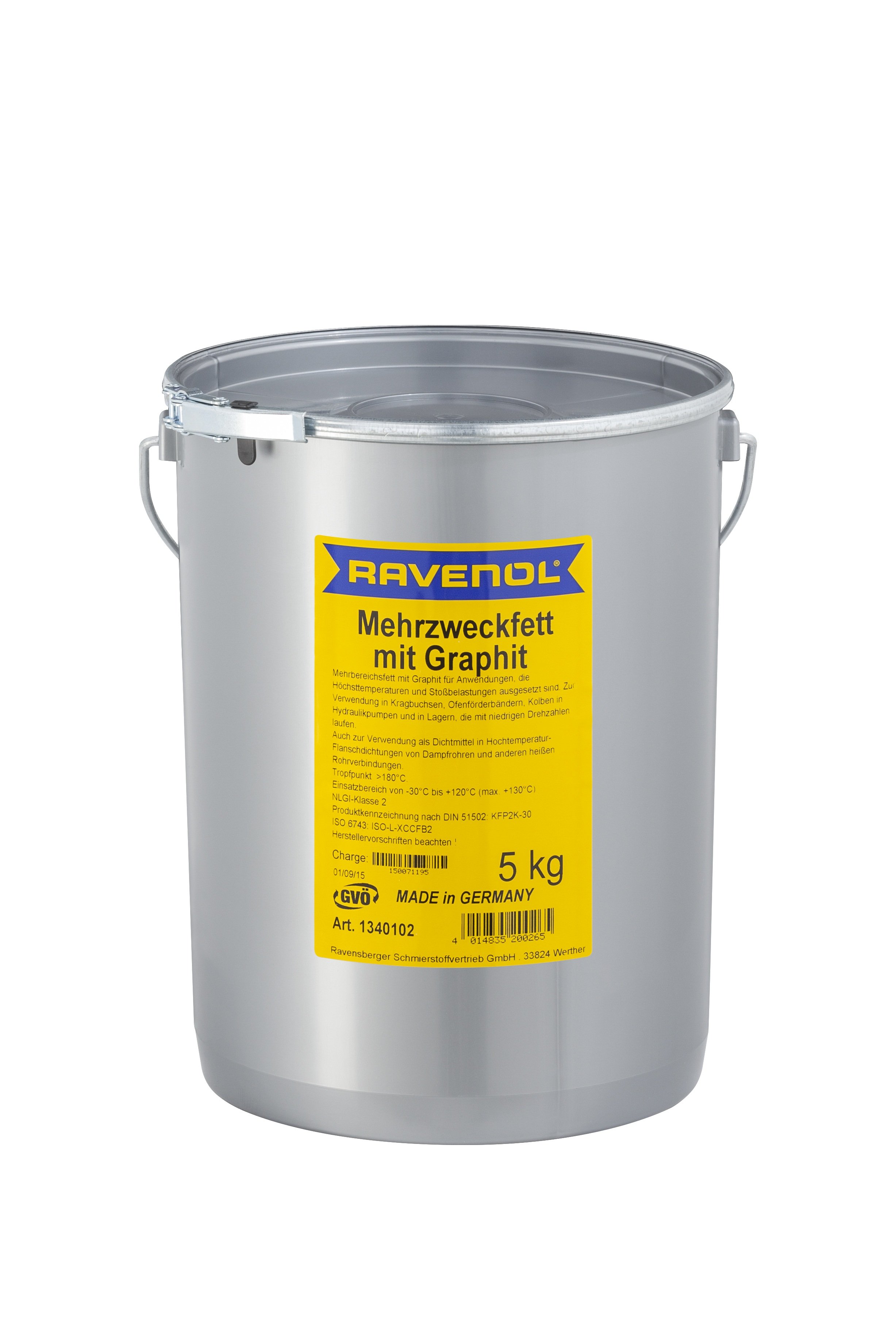

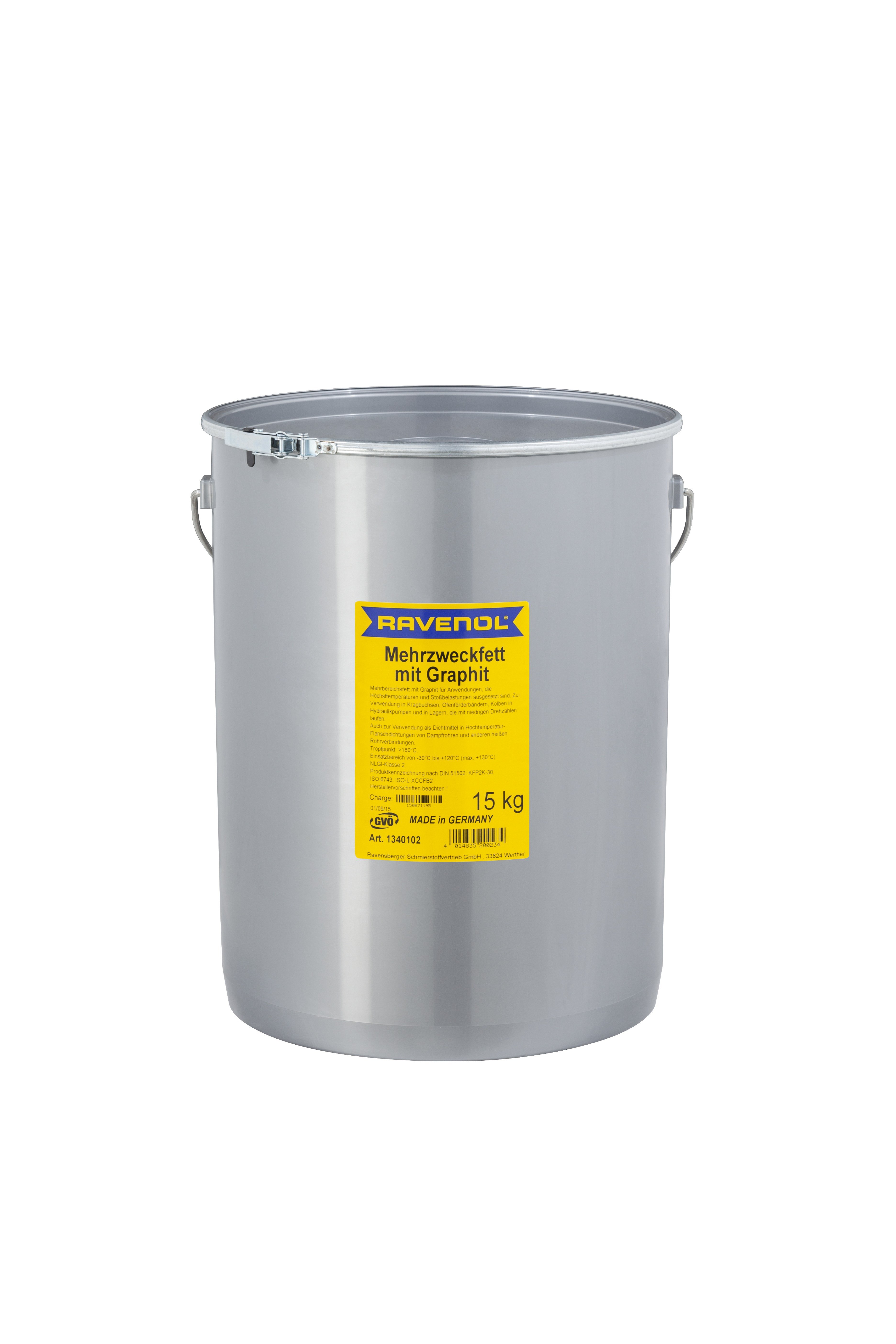

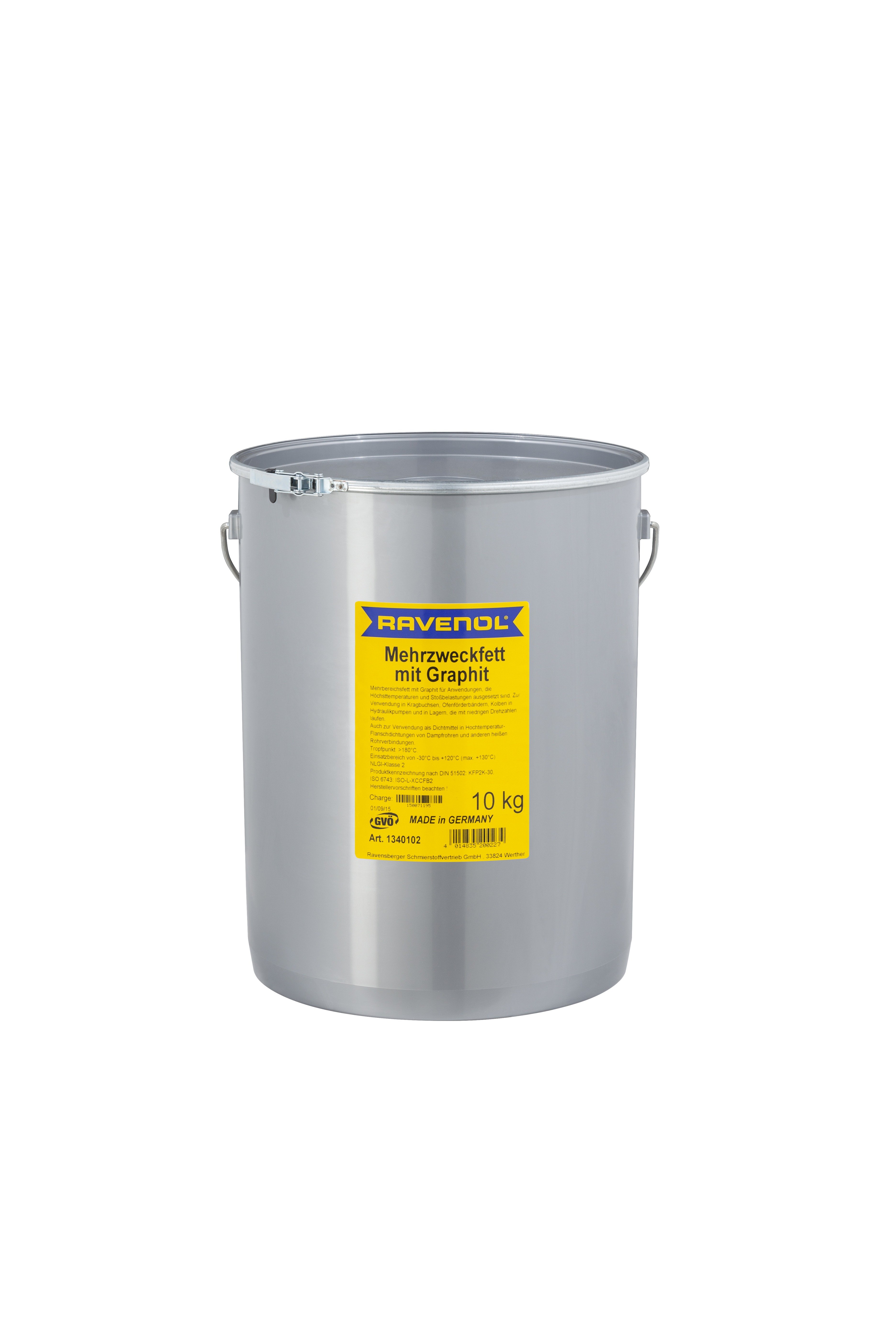

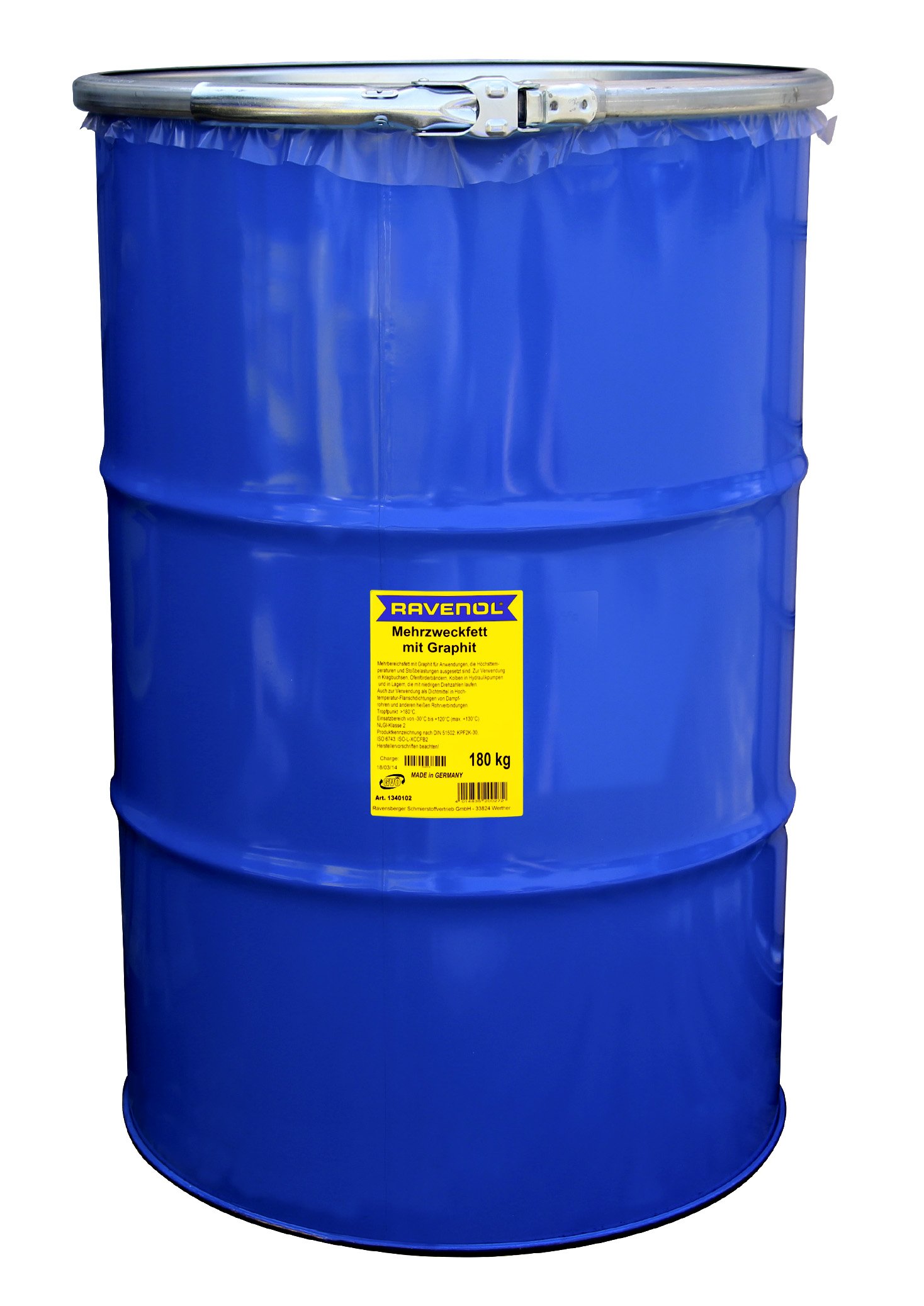

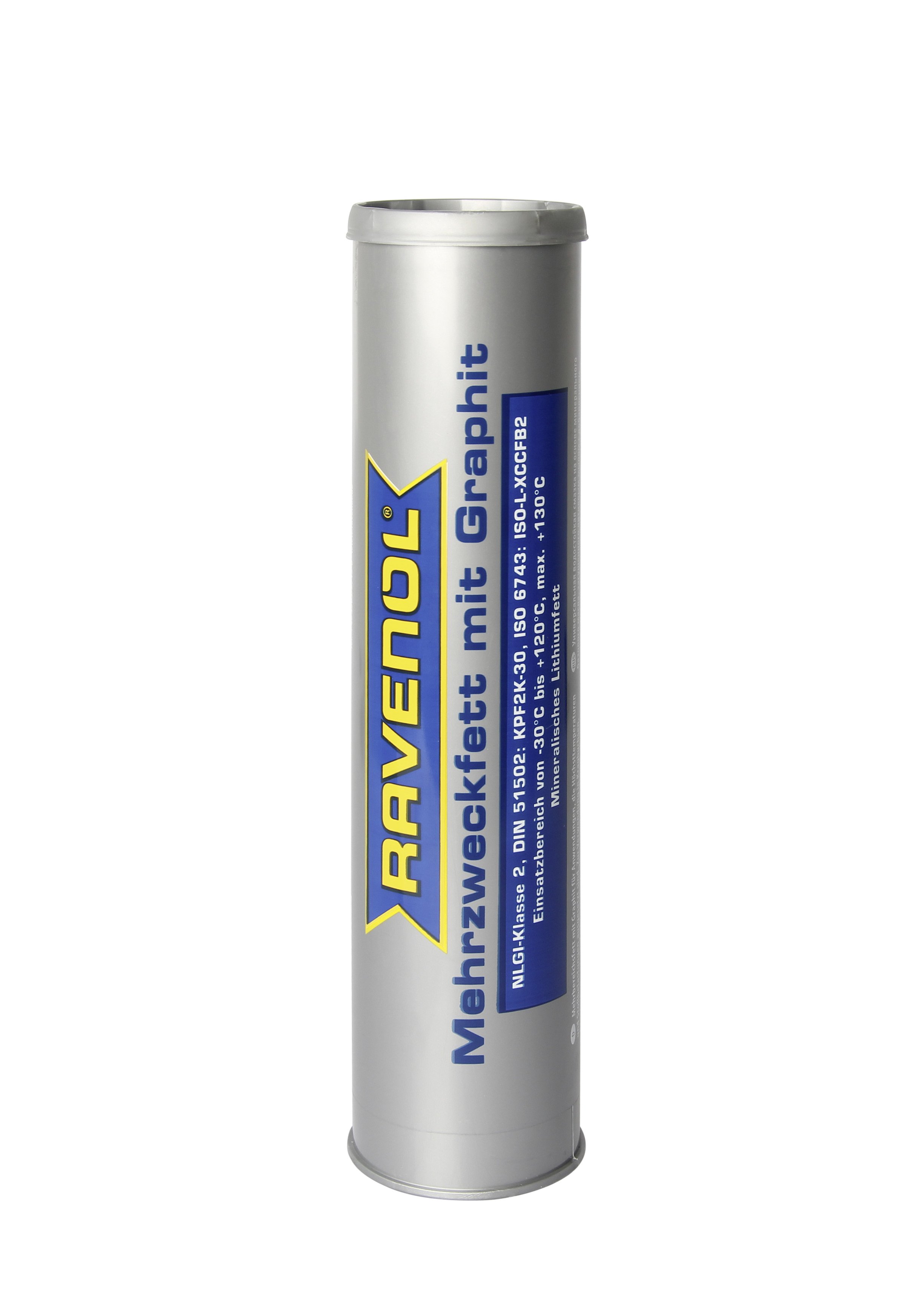

RAVENOL Mehrzweckfett mit Graphit

Category: Grease
Item number: 1340102

RAVENOL Mehrzweckfett mit Graphit is a lithium saponified multipurpose grease with finely divided graphite to increase heavy loads at very high temperatures.

RAVENOL Mehrzweckfett mit Graphit is formulated with a highly refined base oil mixture which contains less than 3% polycyclic aromatics.Through the graphite at high temperatures a lubrication film on the metals is formed, and the graphite takes lubrication to achieve optimal results.

The optimized formulation of RAVENOL Mehrzweckfett mit Graphit can also capture temperature peaks in the application.

Application Note

RAVENOL Mehrzweckfett mit Graphit has been designed for applications exposed to high temperatures and shock loads.

RAVENOL Mehrzweckfett mit Graphit is used in oven conveyor belts, pistons in hydraulic pumps and all types of bearings that run at low speeds.

RAVENOL Mehrzweckfett mit Graphit is also used as a sealant in high temperature gaskets from steam pipes and other hot pipe connections.

Characteristics

  • Extreme shear stability
  • Excellent corrosion protection
  • Very good mechanical and chemical stability
  • Very good aging resistant
  • Good pump output also at low temperatures

Technical Product Data

PropertyUnitDataAudit
Colourgrau-schwarzVISUELL
ThickenerLithium-KomplexseifenDIN 51757
AdditivesGraphitDIN 51757
NLGI-Class2DIN 51818
Product ClassificationKPF2K-30DIN 51502
Working Temperature°C-30 / +120DIN 51825
Short term temperature up to°C130DIN 51757
Worked Penetration at 60 Strokesmm/10/25°C265-295ISO 2137
Corrosion (SKF Emcor dist. Water)Korr. Grad1DIN 51802
Dropping Point°C>180DIN ISO 2176
Copper Corrosion (24h/120 °C)1DIN 51811
Water Resistance (3h/90 °C)°C1-90DIN 51807-1
VKA Pressure Carrying CapacityN2000 - 2200DIN 51350-4
Kinematic Viscosity (Base Oil) at 40 °Cmm²/s80DIN 51562-1

All indicated data are approximate values and are subject to the commercial fluctuations.
