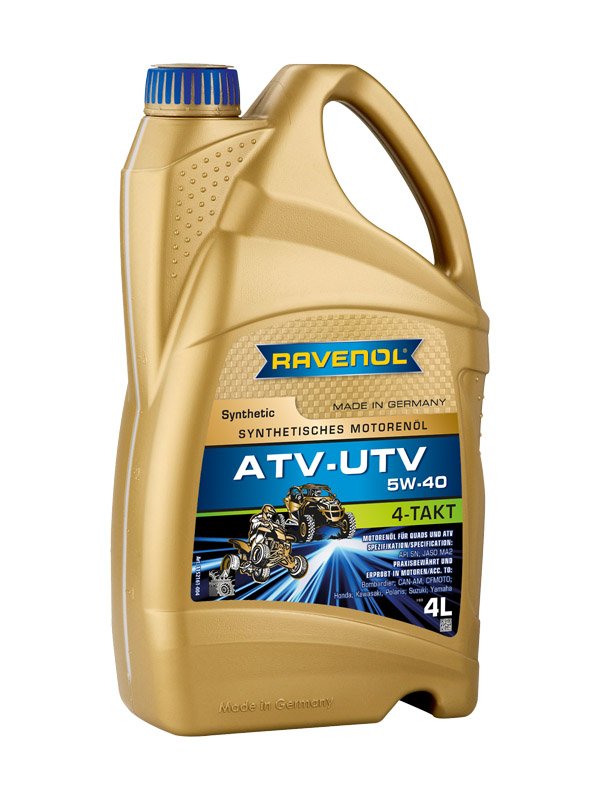

RAVENOL ATV-UTV 4T SAE 5W-40 is especially developed for demanding use in quads and ATVs (off-road vehicles). It is used for maximum performance and optimum protection in 4-stroke quad engines. Special additives reliably protect the transmission against wear and ease the cranking process with the gear engaged as well as the shifting process itself.
RAVENOL ATV-UTV 4T SAE 5W-40 enables a low-wear cold start even at very low outside temperatures thanks to its high viscosity. Wear is also minimized in lower gears and with high engine loads.
RAVENOL ATV-UTV 4T SAE 5W-40 is blended with special additives which reliably protect the gearbox against wear even under high loads and counteract any combustion chamber deposits in the engine.
Application Note
RAVENOL ATV-UTV 4T SAE 5W-40 is used in 4-stroke quad engines from leading manufacturers. It can also be used in vehicles with wet clutches and catalytic converters. It is suitable as an all-year-round oil for quads, but also for other ATV and Enduro vehicles.
RAVENOL ATV-UTV 4T SAE 5W-40 is designed for all air- and water-cooled 4-stroke engines in the ATV and Enduro range, in accordance to the vehicle manufacturer's operating instructions.
Besides many other vehicles suitable for:
Can-Am (BRP): Maverick (incl. R), Commander, Defender, DS, Renegade, Traxter, Outlander, etc.
Yamaha: Wolverine, Kodiak, Grizzly, Viking, etc.
Honda: FourTrax, Talon, Pioneer, etc.
Kawasaki: Brute Force, Mule, Teryx, KFX, etc.
Polaris: Ranger (gasoline), RZR, Sportsman, Pro XD, Predator, Crew, General, etc.
Suzuki: KingQuad, Quadsport, LTZ, etc.
CFMoto: CFORCE, UFORCE, ZFORCE, etc.
The manufacturer's instructions must be followed!
Characteristics
- low-wear cold start even at extremely low outside temperatures
- stable lubrication and good shear stability
- compatible with wet clutches and catalytic converters
- can be used all year round
- high corrosion- and wear protection
- low evaporation tendency, therefore low oil consumption
- tested and proven additives
- high safety reserves during peak loads
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 847 | EN ISO 12185 |
| Colour | gelbbraun | VISUELL | |
| Viscosity at 100 °C | mm²/s | 13,68 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 82,97 | DIN 51562-1 |
| Viscosity Index VI | 169 | DIN ISO 2909 | |
| CCS Viscosity at -30 °C | mPa*s | 5937 | ASTM D5293 |
| Pourpoint | °C | -39 | DIN ISO 3016 |
| Noack Volatility | %m | 5,8 | ASTM D5800 |
| Flashpoint | °C | 244 | DIN EN ISO 2592 |
| tbn | mg KOH/g | 7,2 | ASTM D2896 |
| Sulphated Ash | %wt. | 0,87 | DIN 51575 |
All indicated data are approximate values and are subject to the commercial fluctuations.
