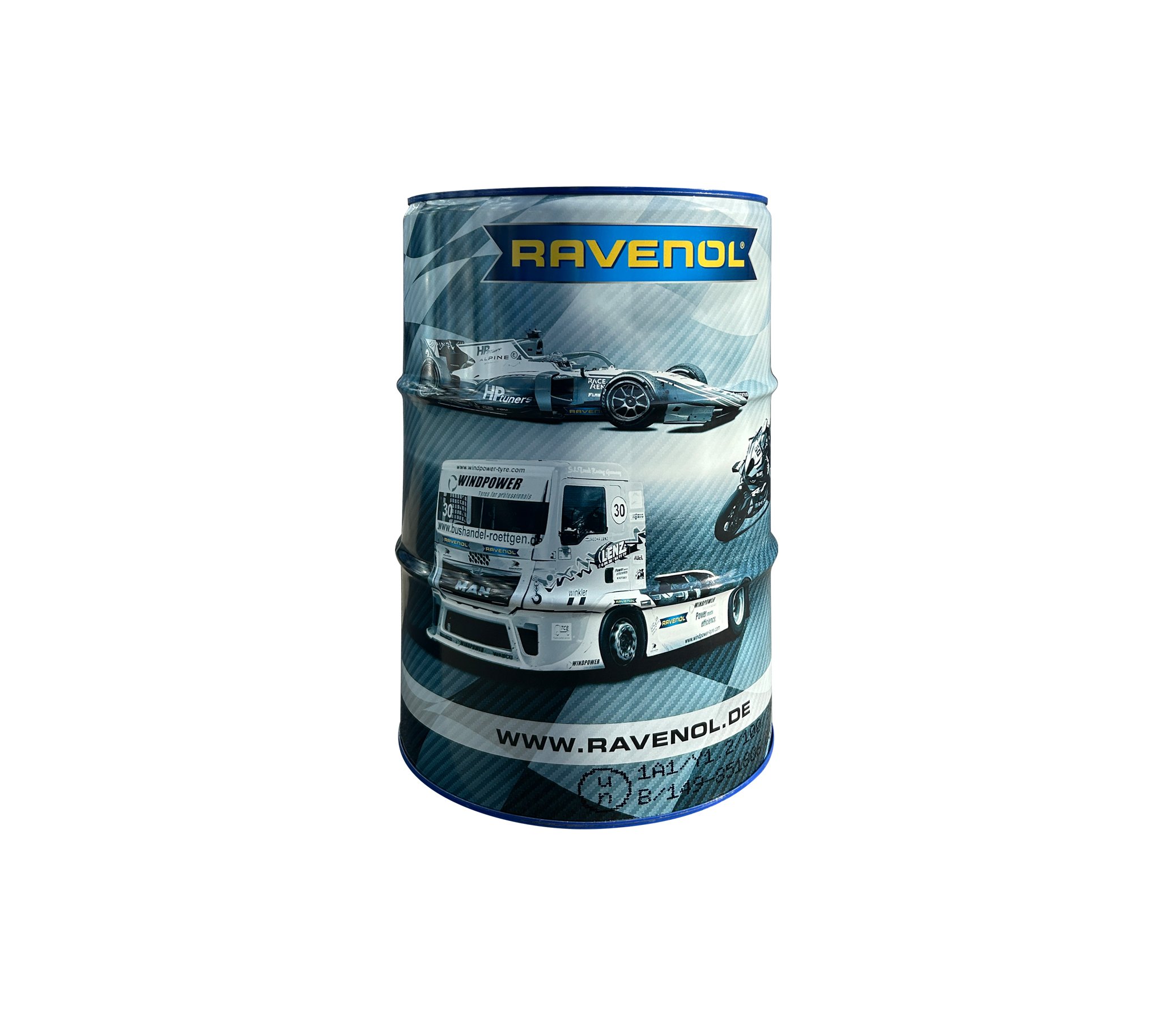

RAVENOL RHP Racing High Perform. Gear SAE 75W-90

Category: Gear oil for manual transmissions and drive axis
Item number: 1145100
Viscosity: 75W-90
Oil type: Full synthetic
Application: Racing
Technology: USVO®, Racing

RAVENOL RHP Racing High Performance Gear SAE 75W-90 is a modern, PAO (poly-alpha-olefin) based full synthetic racing gear oil with USVO® Technology.

RAVENOL RHP Racing High Performance Gear SAE 75W-90 was developed as manual and differential oil for use in racing vehicles.

RAVENOL RHP Racing High Performance Gear SAE 75W-90 is particularly recommended for use in manual transmissions and rear axle with integrated locking differential. The USVO® technology offers high performance, improved gear protection and optimized gear cleanliness for your vehicle. Special additives guarantee limited slip properties, a high load carrying capacity, stable viscosity, optimum wear protection, low foaming, proper lubrication and reducing the heating of the transmission.

RAVENOL RHP Racing High Performance Gear SAE 75W-90 offers excellent anti-wear properties and an optimum viscosity-temperature behavior.

Application Note

RAVENOL RHP Racing High Performance Gear SAE 75W-90 is a full synthetic racing gear oil for use in racing cars and is particularly recommended for use in manual transmissions and rear axle with integrated locking differential.

Characteristics

  • A high-pressure stable lubricating film even at high oil temperatures and under high loads.
  • Outstanding shear stability and excellent thermal stability.
  • Very good viscosity-temperature behavior.
  • Excellent ageing resistance and high oxidation resistance.
  • Very good wear protection, excellent EP properties.
  • Low foaming tendency even at high speeds.
  • Good compatibility with non-ferrous metals and sealing materials.
  • Good shifting behavior even at low temperatures, low pour point.
  • Reduced gear noise due to minimized vibrations, even with hot oil due to the well adhering lubricating film.

Technical Product Data

PropertyUnitDataAudit
ColourgelbVISUELL
Seq. I at 24 °Cml/ml0/0ASTM D892
Seq. II at 93,5 °Cml/ml10/0ASTM D892
Seq. III at 24 °C after 93,5 °Cml/ml0/0ASTM D892
Viscosity at 100 °Cmm²/s16,1DIN 51562-1
Viscosity at 40 °Cmm²/s92,6DIN 51562-1
Viscosity Index VI188DIN ISO 2909
Brookfield Viscosity at -40 °CmPa*s33.800ASTM D2983
Copper Strip Test at 121 °C1bASTM D130
Density at 20 °Ckg/m³868,0EN ISO 12185
Flashpoint°C200DIN EN ISO 2592
Pourpoint°C-57DIN ISO 3016

All indicated data are approximate values and are subject to the commercial fluctuations.
