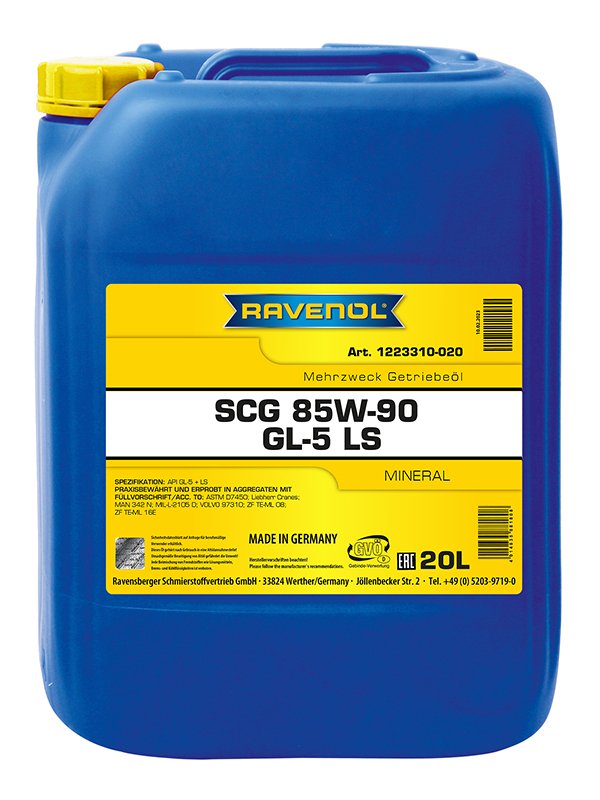

RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS

Category: Gear oil for manual transmissions and drive axis
Item number: 1223310
Viscosity: 85W-90
Specification: API GL-5 + LS
Oil type: Mineral

RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS is a mineral multi-purpose gear oil based on high-quality base oils. Due to its special additives and inhibition, it is particularly suitable for "limited slip" applications.

Thanks to the balanced combination of additives, RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS ensures characteristics like a high pressure absorptioncapacity, a superior viscosity temperature behaviour and a high oxidation stability.

RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS is designed for the increased stress of manual transmissions and thus ensures perfect functioning of the transmissions.

Application Note

RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS is compatible with all brand-name transmission oils.

RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS is particularly suitable for lubricating differential gears with limited slip.

RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS can be used in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.

RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS is also suitable for use in Liebherr assemblies due to its high phosphorus content.

The operating instructions of the vehicle and transmission manufacturers must be observed.

Characteristics

  • Increased phosphorus content
  • High pressure stable lubrication film, thus outstanding wear protection under all loads
  • Outstanding shearing stability
  • Excellent oxidation stability, no foaming
  • Extraordinary ageing stability
  • Excellent viscosity-temperature properties
  • Effective wear protection
  • Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
  • Neutral to sealants, transmissions stay tight, no oil loss

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³885,3EN ISO 12185
ColourgelbbraunVISUELL
Viscosity at 100 °Cmm²/s14,9DIN 51562-1
Viscosity at 40 °Cmm²/s136,0DIN 51562-1
Viscosity Index VI110DIN ISO 2909
Pourpoint°C-33DIN ISO 3016
Flashpoint°C194DIN EN ISO 2592
Copper Strip Test at 121 °C1bASTM D130
Phosphormg/kg>2300ASTM D7751

All indicated data are approximate values and are subject to the commercial fluctuations.
