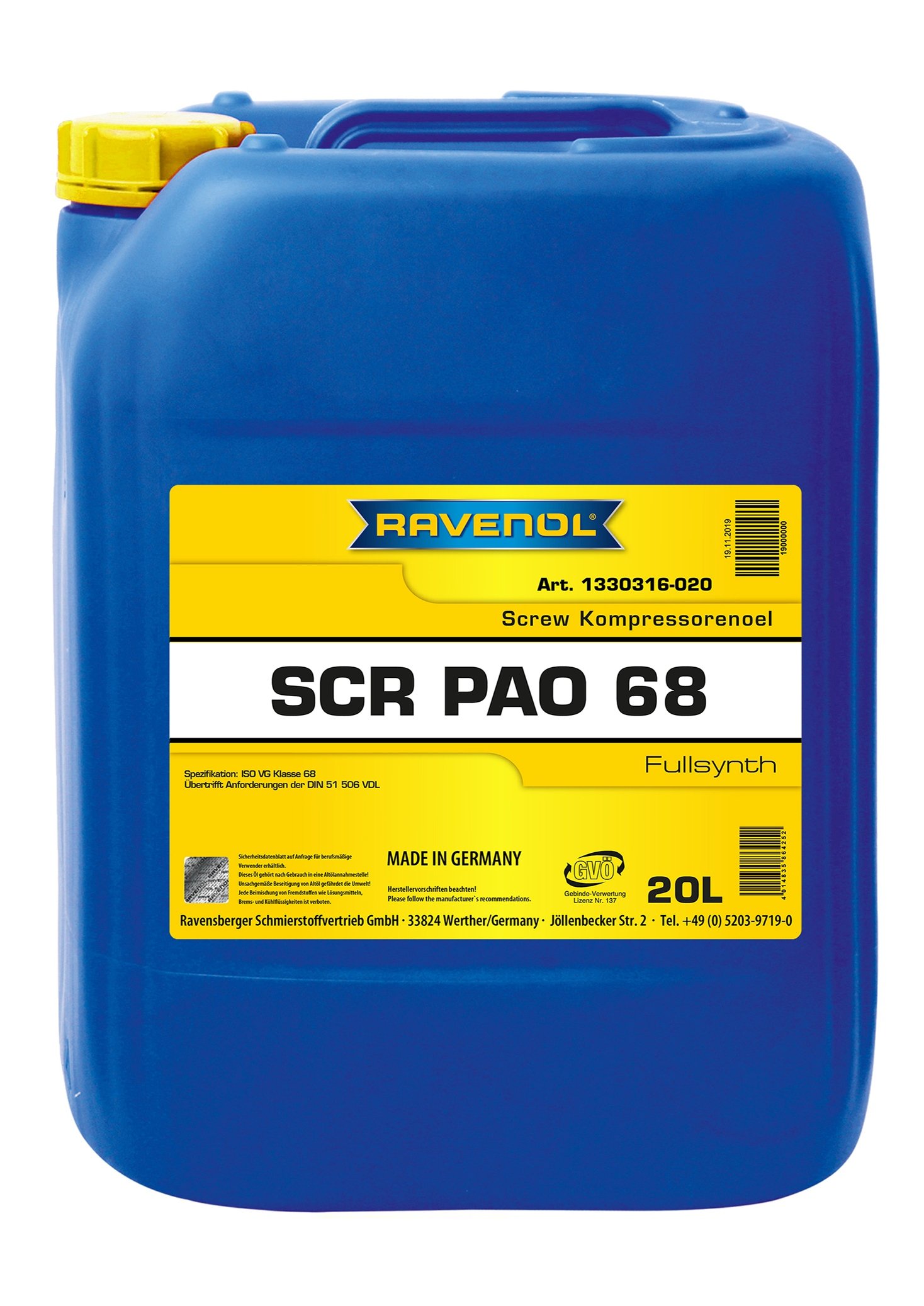

RAVENOL SCR PAO 68 Screw Kompressorenoel

Category: Industrial oil
Item number: 1330316
Viscosity: 68
Specification: ISO VG Klasse 68
Oil type: Full synthetic
Application: Industry

RAVENOL SCR PAO 68 Screw Kompressorenöl is full synthetic compressoroil with ISO VG Class 68, which is specifically designed to provide effective lubrication in rotary screw air compressors.

RAVENOL SCR PAO 68 Screw Kompressorenöl is also specifically designed to significantly extend service life in rotary screw compressors.

RAVENOL SCR PAO 68 Screw Kompressorenöl has excellent resistance to oxidative breakdown caused by exposure to air at high discharge temperatures it has excellent thermal stability for reducing carbon deposit formation.

RAVENOL SCR PAO 68 Screw Kompressorenöl shows good protection against wear, protects against rust and corrosion. Low volatility reduces oil carry-over into the air system. Reduces fluid consumption.

The full benefits of a change to RAVENOL SCR PAO 68 Screw Kompressorenöl will only be realized by minimizing contamination with the previously used oil. Certain makes of compressors do not permit completedraining, so if the drained oil is heavily oxidized (shown by significant increase in the oil’s total acid number and viscosity), recharging with RAVENOL SCR PAO 68 Screw Kompressorenöl may not result in optimum performance and fluid service life.

RAVENOL SCR PAO 68 Screw Kompressorenöl has excellent oxidation stability, corrosion,deposit control and low volatility and provides up to 8,000 hours of continuous worry-free service for lubrication, sealing and effective heat removal for efficient compressor performance.

Application Note

RAVENOL SCR PAO 68 Screw Kompressorenöl is recommended for use in rotary screw air compressors.

While RAVENOL SCR PAO 68 Screw Kompressorenöl is fully compatible with most mineral and synthetic compressor fluids, it should not be mixed or contaminated with fluids containing polyalkylene glycols or silicones.

Characteristics

  • High oxidation stability
  • Excellent protection against rust and corrosion.
  • Excellent resistance to oxidative breakdown. caused by exposure to air at high discharge temperatures
  • Higher thermal stability reduces carbon deposit formation
  • Improved viscosity index and good low temperature properties
  • Good protection against wear
  • Protects against rust and corrosion
  • Low volatility reduces oil carry-over into the air system
  • Reduces fluid consumption

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³843,0EN ISO 12185
ColourhellgelbVISUELL
Viscosity at 100 °Cmm²/s11,4DIN 51562-1
Viscosity at 40 °Cmm²/s66,4DIN 51562-1
Viscosity Index VI166DIN ISO 2909
Pourpoint°C-63DIN ISO 3016
Flashpoint°C240DIN EN ISO 2592
Acid Number TANmgKOH/g0,13ASTM D664
Water separationml/54°Cmin41-39-0 (15)ASTM D1401
Copper Corrosion:3h 100 °C1aASTM D130
Rust A – distilled WaterbestandenASTM D665
Rust B – Synthetic Sea WaterbestandenASTM D665
Conradson Carbon Residue mass%<0,1ASTM D524
Seq. I at 24 °Cml/ml0/0ASTM D892
Seq. II at 93,5 °Cml/ml0/0ASTM D892
Seq. III at 24 °C after 93,5 °Cml/ml0/0ASTM D892

All indicated data are approximate values and are subject to the commercial fluctuations.
