RAVENOL ATF Fluid Type F

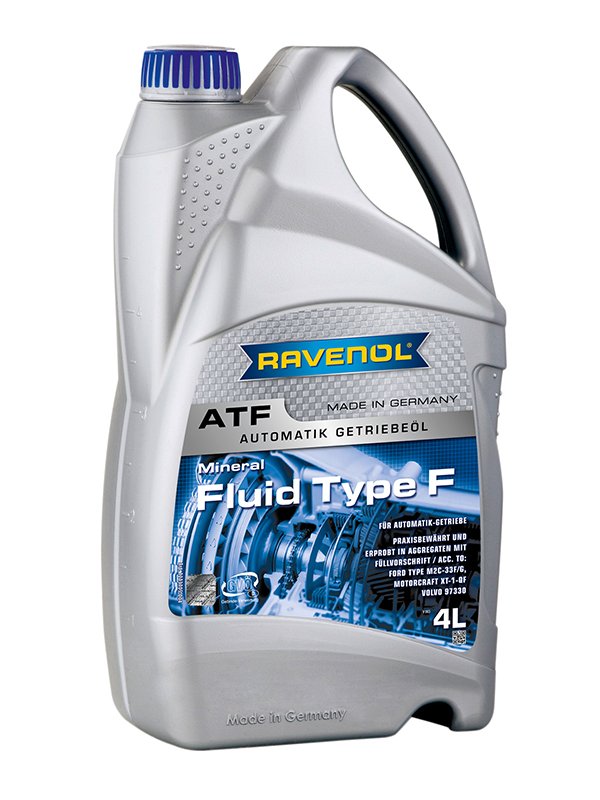

RAVENOL ATF Fluid Type F 4 L- 1213105-004
ART.-NR. 1213105-004

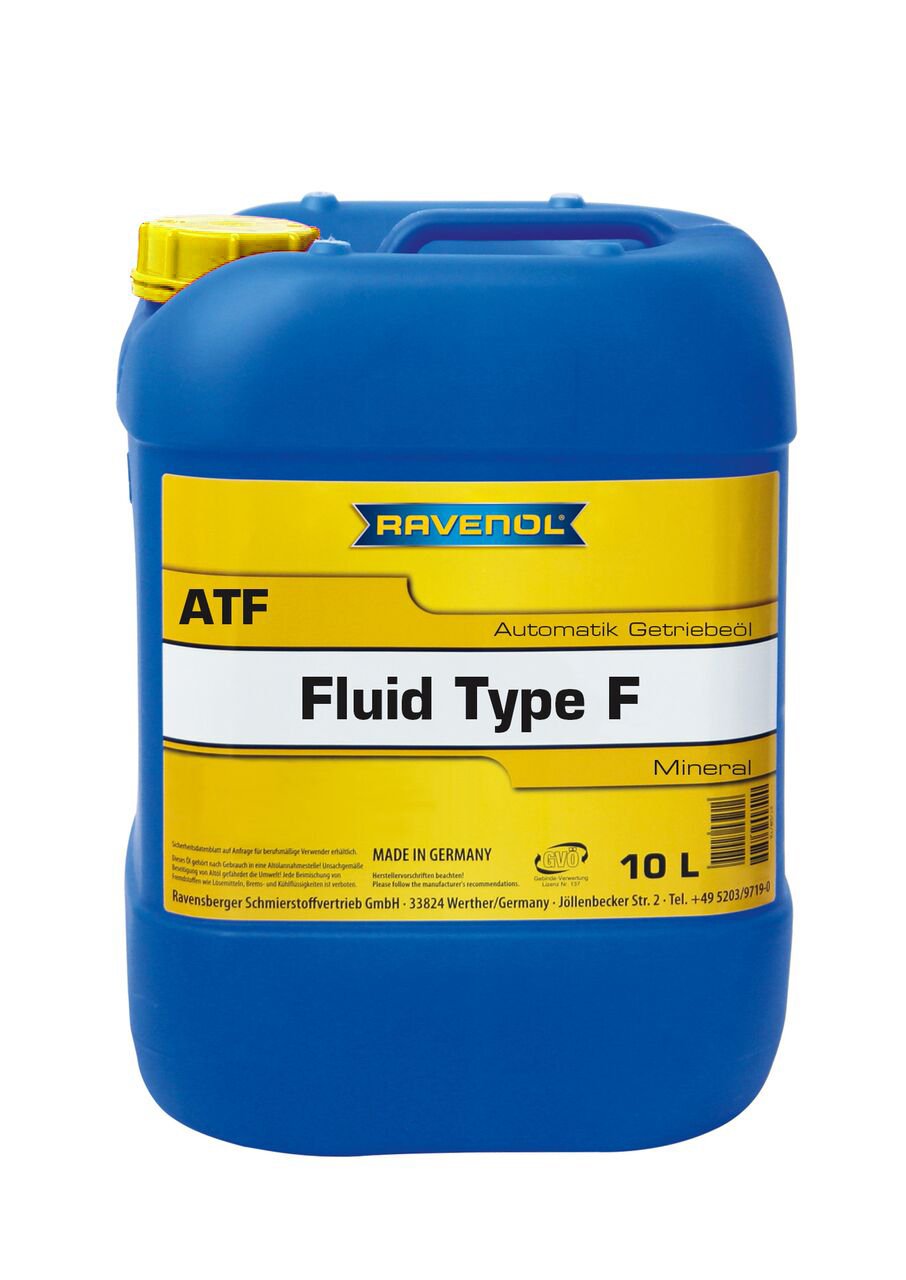

RAVENOL ATF Fluid Type F 10 L- 1213105-010
ART.-NR. 1213105-010

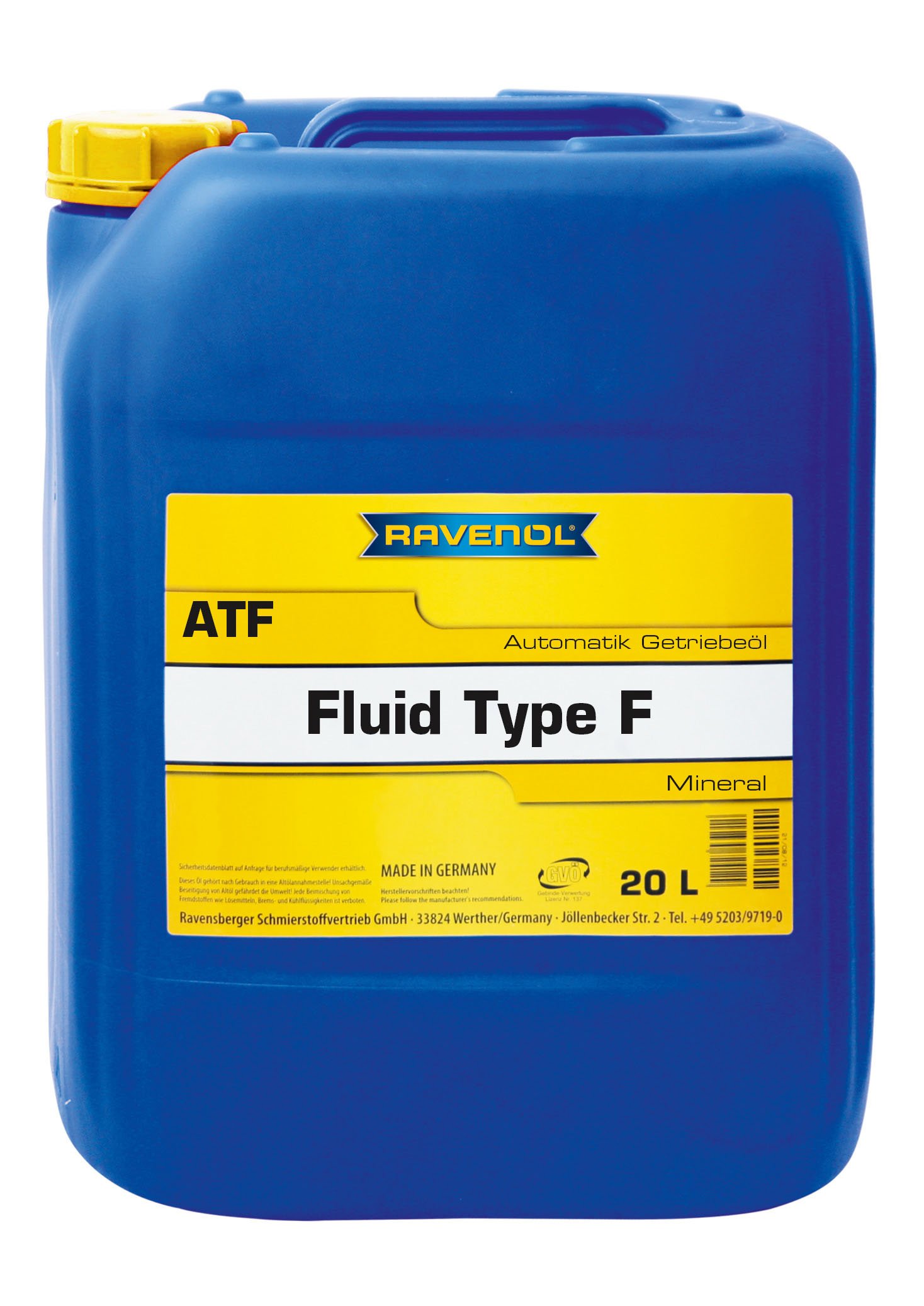

RAVENOL ATF Fluid Type F 20 L- 1213105-020
ART.-NR. 1213105-020
RAVENOL ATF Fluid Type F 20 L- 1213105-B20
ART.-NR. 1213105-B20
RAVENOL ATF Fluid Type F 60 L- 1213105-060
ART.-NR. 1213105-060
RAVENOL ATF Fluid Type F 60 L- 1213105-D60
ART.-NR. 1213105-D60
RAVENOL ATF Fluid Type F 1000 L- 1213105-700
ART.-NR. 1213105-700
  • 4 L | 1213105-004
  • 10 L | 1213105-010
  • 20 L | 1213105-020
  • 20 L | 1213105-B20
  • 60 L | 1213105-060
  • 60 L | 1213105-D60
  • 1000 L | 1213105-700
Fabrication
mineral
Categories
ATF-Transmission fluids for automatic transmissions
Recommendations
FORD Type M2C-33F/G
Motorcraft XT-1-QF
VOLVO 97330

RAVENOL ATF Fluid Type F is an universal ATF (automatic transmission fluid) for use as a speciality transmission oil for Ford, Borg Warner and Volvo.
RAVENOL ATF Fluid Type F is designed based on refined base oils with a special additive treatment and inhibition ensuring trouble-free function.

Application Notes

RAVENOL ATF Fluid Type F is suitable for use as a speciality transmission oil for Ford, Borg Warner and Volvo.

Use according to aggregate manufacturer operating instructions in: automatic transmissions, fluid turbo coupling, servo clutches and other hydrostatic and hydrodynamic Systems.

Characteristics

RAVENOL ATF Fluid Type F offers:

  • Universal use, therefore minimising the risk of confusion and making stock-keeping easy.
  • Good lubricating ability even in low temperatures during winter.
  • Stable lubricating film under extreme stress in midsummer resulting in comparatively low wear throughout the change interval.
  • Excellent viscosity-temperature properties.
  • High thermal resilience.
  • Compatible with brand name ATFs.
  • Non-foaming even in extreme conditions.
  • Reliable protection against wear, sludge, corrosion and adhesion.
  • FZG test: Reaches failure load stage 12 before and after shearing.
PropertyUnitDataAudit
Density at 20°Ckg/m³848,0EN ISO 12185
Colourredvisual
Viscosity at 100°Cmm²/s7,3DIN 51 562
Viscosity at 40°Cmm²/s34,3DIN 51 562
Viscosity index VI185DIN ISO 2909
Pourpoint°C-45DIN ISO 3016
Flash point°C210DIN ISO 2592
