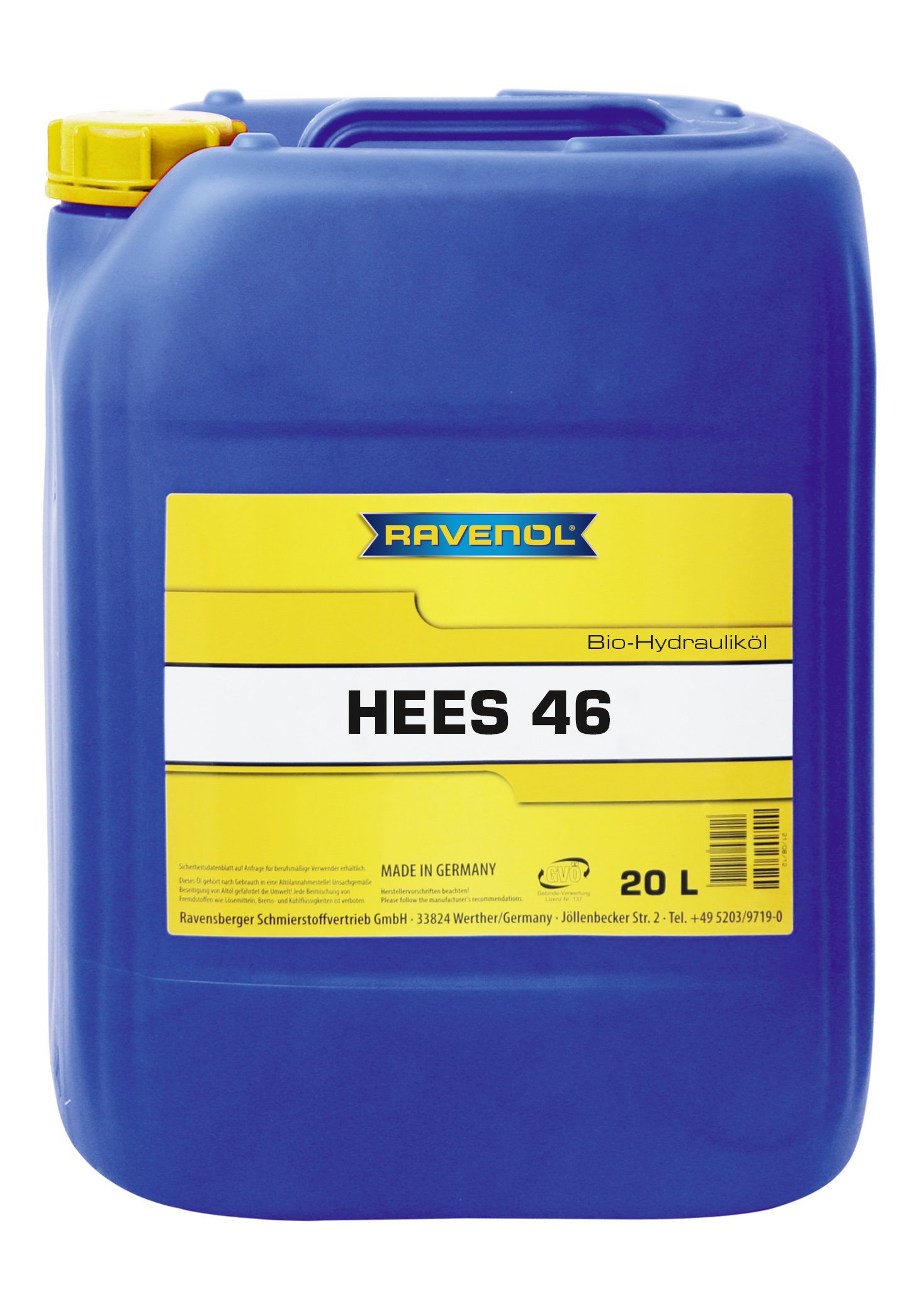

RAVENOL BIO-Hydraulikoel HEES 46

RAVENOL BIO-Hydraulikoel HEES 46 20 L- 1321105-020
ART.-NR. 1321105-020
RAVENOL BIO-Hydraulikoel HEES 46 20 L- 1321105-B20
ART.-NR. 1321105-B20
RAVENOL BIO-Hydraulikoel HEES 46 1000 L- 1321105-700
ART.-NR. 1321105-700
  • 20 L | 1321105-020
  • 20 L | 1321105-B20
  • 1000 L | 1321105-700
Specifications
DIN 51 524 Teil 1, 2, 3
Eaton Brochure 03-401-2010 (Dry ASTM D943)
Blauer Engel
EU Ecolabel
ISO 15380 HEES (Dry ISO 4263-3)
Fabrication
biodegradable
Categories
Hydraulic Oils / Compressor Oils
Recommendations
JCMAS P042 HKB
Parker Denison HF-1, HF-2, HF-6 (Dry ASTM D4310)
Swedish Standard SS 15 54 34 Category V (Dry ASTM D943)
USDA Biopreferred®
VDMA 24568
VDMA 24570
US Vessel General Permit (VGP)

RAVENOL BIO-Hydraulikoel HEES 46 is based on synthetic, easily biodegradable ester and a powerful, environmentally friendly combination of additives which gives the product excellent properties regarding oxidation stability, corrosion, low temperatures as well as EP behaviour. Compared with products of vegetable triglyceride base, RAVENOL BIO-Hydraulikoel HEES 46 has much better high temperature oxidation stability.

RAVENOL BIO-Hydraulikoel HEES 46 can be used year-round due to its outstanding low-temperature behavior and provides excellent wear and corrosion protection.

Application Notes

RAVENOL BIO-Hydraulikoel HEES 46 is used wherever there is the danger of hydraulic fluid leaking into the ground or waste water. This includes all equipment operating in or near areas of water purification or water protection or near surface water, such as e.g. sewage treatment plants,  dredging ships and floating dredges, lock hydraulics and river weirs, pipe and tunnel diving machines, - hydraulic aggregates in forests and on plains, earth moving machines in water collecting areas,  forestry machines.

Characteristics

RAVENOL BIO-Hydraulikoel HEES 46 offers:

  • Biodegradability
  • Excellent corrosion protection
  • Excellent cold behavior
PropertyUnitDataAudit
Density at 20°Ckg/m³917EN ISO 12185
Colourgelbvisual
Viscosity at 100°Cmm²/s9,45DIN 51 562
Viscosity at 40°Cmm²/s46,0DIN 51 562
Viscosity index VI190DIN ISO 2909
Pourpoint°C-33DIN ISO 3016
Flash point (COC)°C315DIN ISO 2592
Corrosive Action1ADIN EN ISO 2160
Foaming behavior SEQ Iml10/0ISO 6247
Foaming Behavior SEQ IIml5/0ISO 6247
Foaming behavior SEQ IIIml10/0ISO 6247
Air release property at 50°C max.min.2ISO 9120
