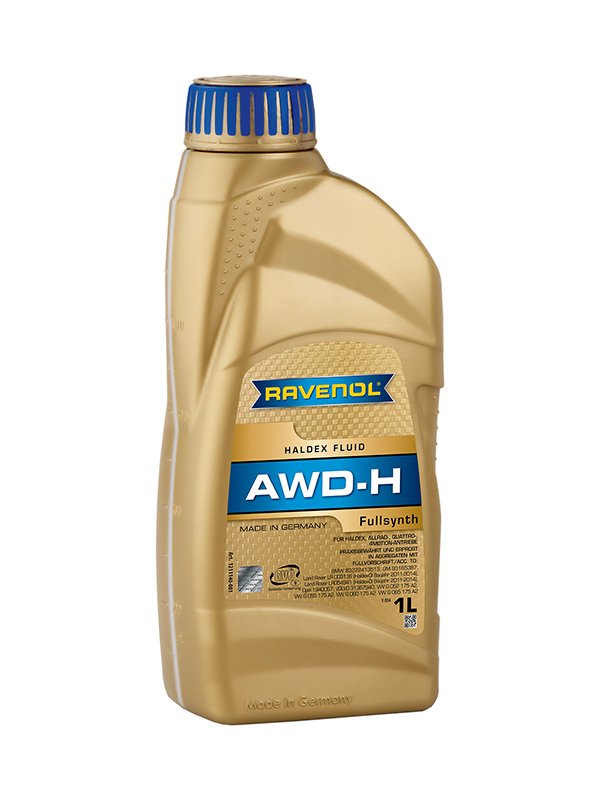

RAVENOL AWD-H Fluid

Category: Gear oil for manual transmissions and drive axis
Item number: 1211140
Oil type: Full synthetic
Application: Passenger car

RAVENOL AWD-H FLUID is a high-quality formula of high-performance oils with special additives and inhibitors.

RAVENOL AWD-H FLUID is a special high-performance transmission oil for Haldex's Allrad, Quattro and 4motion powertrains.How the Haldex coupling operates: The axle closest to the engine is constantly powered. All-wheel drive powertrains with a Haldex coupling automatically direct engine power to the other axle where required, without any intervention from the driver. Depending on the electronically-controlled blocking effect of the Haldex coupling, a variable proportion of the engine power is transferred to this axle as required.

RAVENOL AWD-H FLUID supports this power transfer process with its outstanding qualities.

Application Note

RAVENOL AWD-H Fluid is suitable for use with all-wheel drive powertrains with Haldex couplings in AUDI, VOLKSWAGEN, SEAT, SKODA, OPEL, LANDROVER and VOLVO vehicles.

RAVENOL AWD-H Fluid should be changed every 60.000 km in order to avoid damage to the powertrain.

RAVENOL recommendation: When changing the oil, always change the oil filter of the Haldex coupling and clean the pre-filter of the oil pump or replace it at the same time. This prevents damage to the Haldex caused by deposits or clogging of the filters.

Characteristics

  • An excellent flow behaviour at low temperatures
  • High, stable viscosity index
  • Very good oxidation stability
  • Reliable protection against wear, corrosion and foaming
  • Excellent coefficient of friction constancy
  • High thermal and oxidative stability
  • Excellent cooling ability
  • Improved shear stability

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³855,0EN ISO 12185
ColourhellgelbVISUELL
Colour Code1,0DIN ISO 2049
Viscosity at 100 °Cmm²/s5,4DIN 51562-1
Viscosity at 40 °Cmm²/s24,5DIN 51562-1
Viscosity Index VI166DIN ISO 2909
Brookfield Viscosity at -40 °CmPa*s6060ASTM D5481
Pourpoint°C-63DIN ISO 3016
Flashpoint192DIN EN ISO 2592
VKA Four Ball Test (Wear)mm0,58DIN 51350-3
VKA Four Ball Test (EP Extreme Pressure)N2000 / 2200DIN 51350-3
Seq. I at 24 °Cml/ml0/0ASTM D892
Seq. II at 93,5 °Cml/ml0/0ASTM D892
Seq. III at 24 °C after 93,5 °Cml/ml0/0ASTM D892
Copper Strip Test at 150 °C1aASTM D130

All indicated data are approximate values and are subject to the commercial fluctuations.

RAVENOL special transmission fluids are special developments for special gears and cannot be selected on the basis of technical parameters (viscosity, etc.). Therefore the decision was made not to give technical data. Please note: RAVENOL special transmission fluid is exclusively to apply under the original number, as indicated in the product information. If you are unsure about the right transmission fluid, ask your workshop or dealership for advice on the transmission type and OEM original number or ask our experts, making sure to state the VIN code (vehicle identification number) of your vehicle. Misapplication of RAVENOL special transmission fluid can lead to malfunction of the transmission shifting problems, increased fuel consumption, unwanted slip behavior, etc. and cause the failure of the transmission. Ravensberger Schmierstoffvertrieb GmbH is not liable for transmission failures in case of wrong selection of RAVENOL special transmission fluid.
