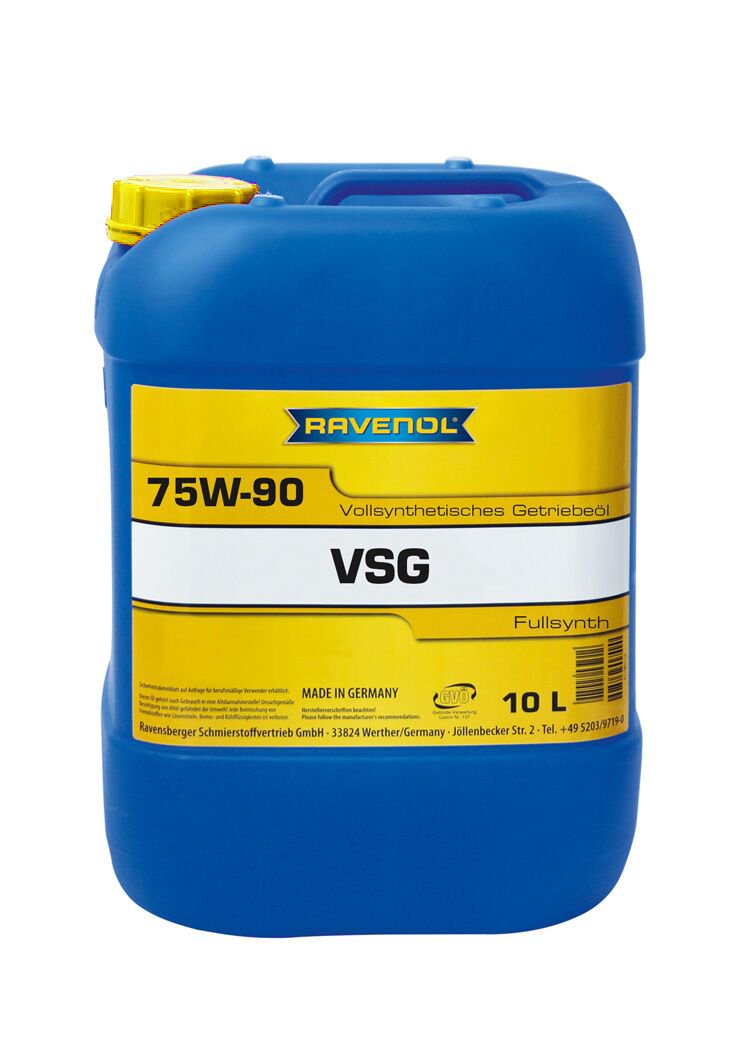

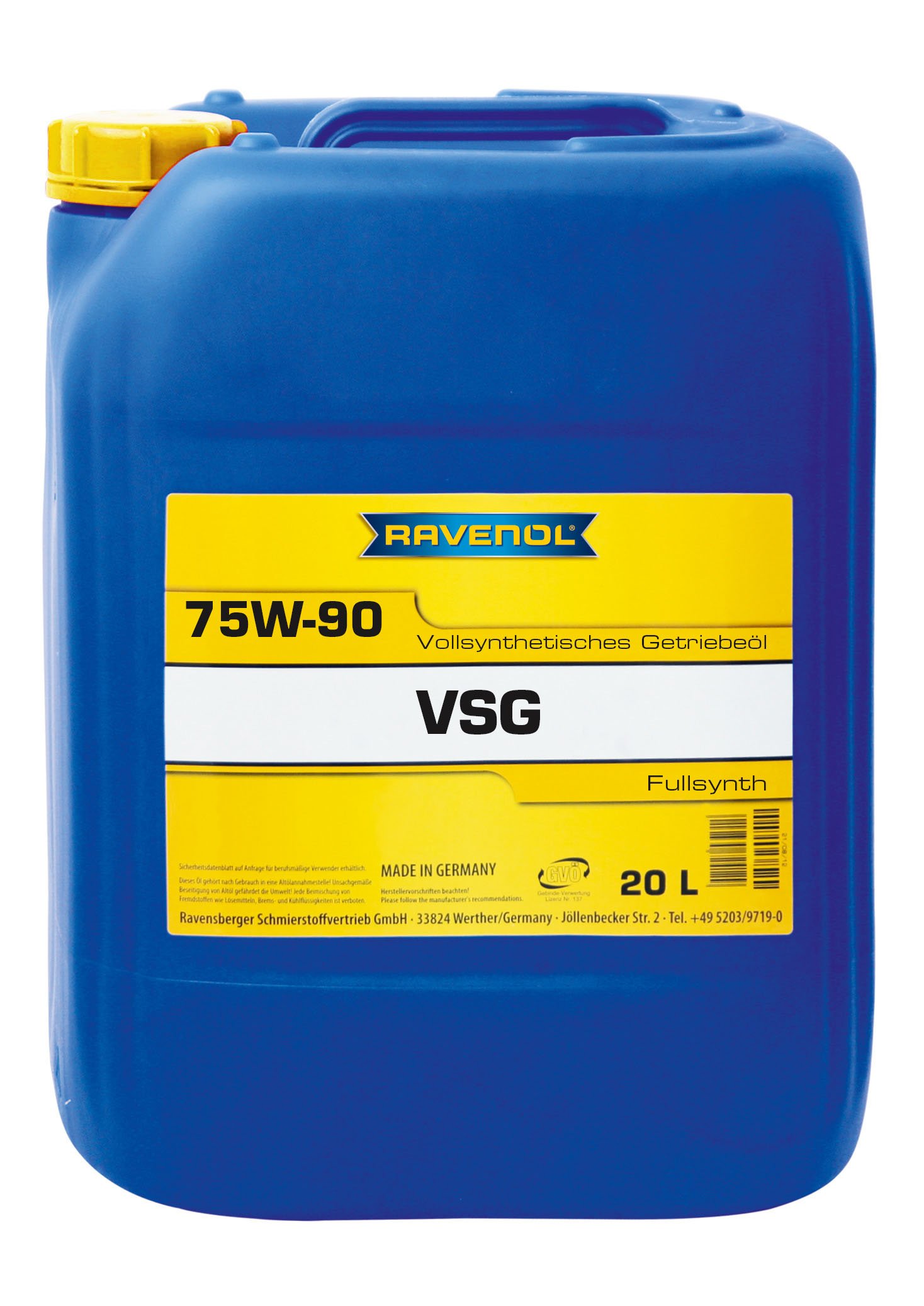

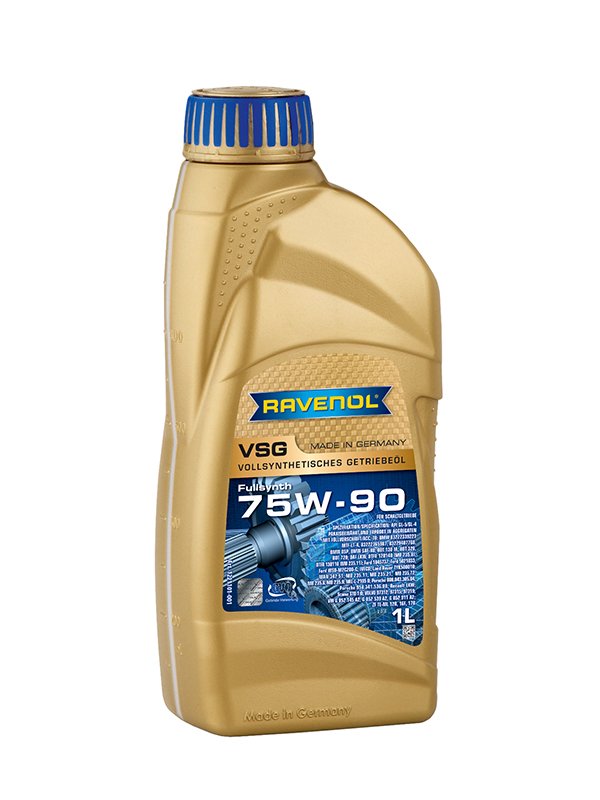

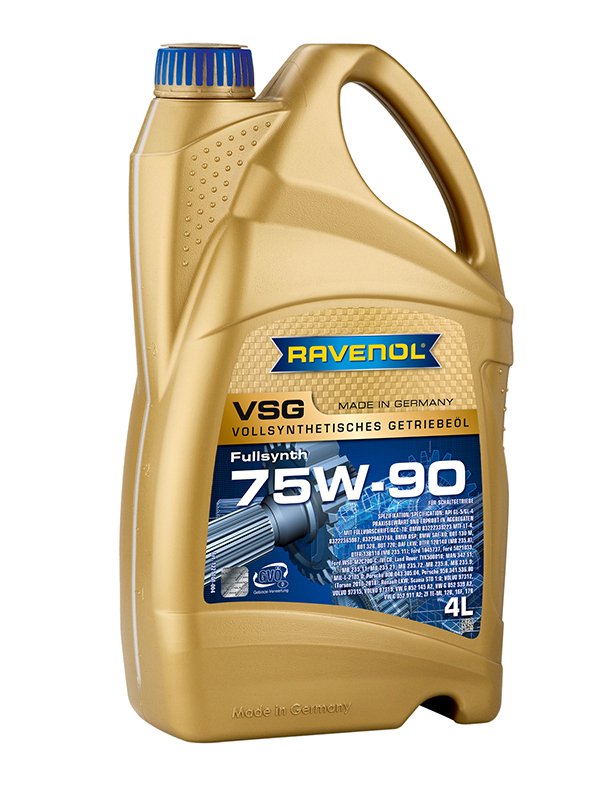

RAVENOL VSG SAE 75W-90

Category: Gear oil for manual transmissions and drive axis
Item number: 1221101
Viscosity: 75W-90
Specification: API GL-4, API GL-5
Oil type: Fully synthetic

RAVENOL VSG SAE 75W-90 is a high performance universal transmission oil based on fully synthetic components.

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Application Note

RAVENOL VSG SAE 75W-90 is excellent for use of highly stressed axle drives.

RAVENOL VSG SAE 75W-90 is suitable for synchronised and non-synchronised manual transmissions, transfer cases and ancillary transmission requiring API GL-5 or GL-4 oil.

RAVENOL VSG SAE 75W-90 is suitable for Ford-transmission IB5, B5, MTX75, GM5, MT285/6, MMT6/6, MT75, R15M-D, R15MX-D, MT82 and Porsche Full-Time Transfer Case with Torsen (PL72T) for Cayenne 92A / 958 Diesel and S Hybrid from 2010 to 2018.

Characteristics

  • high additive reserves for prolonged oil change intervals according to the manufacturer specifications
  • excellent cold flow properties
  • best wear protection and best transmission efficiency
  • Fuel savings even with short distances in low outdoor temperatures
  • stable lubricating film even under high stress
  • extraordinary corrosion protection and good compatibility with non-ferrous metal
  • high oxidation resistance prevents oil thickening and deposits
  • outstanding dirt-carrying capacity, i.e. aggregates are clean even after very long oil change intervals
  • excellent elastomer compatibility to prevent leaks
  • extreme shearing stability, remains within the clean oil viscosity per SAE class 75W-90 even after very long periods of use
  • very high protection from rust, corrosion and foaming
  • extreme low pour point
  • excellent EP properties
  • fuel savings

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³863,0EN ISO 12185
ColourgelbVISUELL
Viscosity at 100 °Cmm²/s15,7DIN 51562-1
Viscosity at 40 °Cmm²/s88,8DIN 51562-1
Viscosity Index VI189DIN ISO 2909
Brookfield Viscosity at -40 °CmPa*s24.200ASTM D2983
Pourpoint°C-57DIN ISO 3016
Flashpoint°C210DIN EN ISO 2592
Seq. I at 24 °Cml/ml0/0ASTM D892
Seq. II at 93,5 °Cml/ml0/0ASTM D892
Seq. III at 24 °C after 93,5 °Cml/ml0/0ASTM D892
Copper Strip Test at 121 °C1aASTM D130

All indicated data are approximate values and are subject to the commercial fluctuations.
