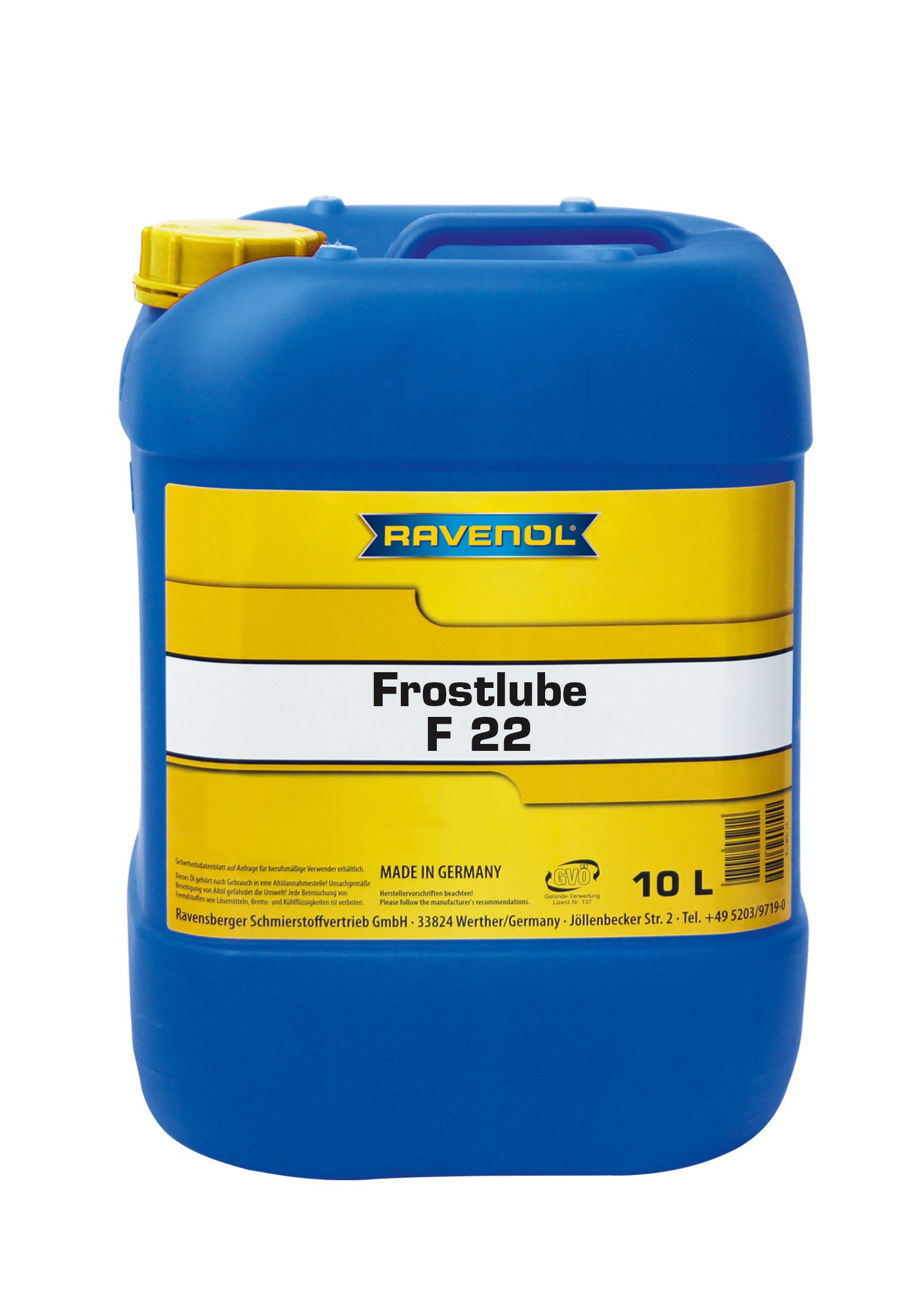

RAVENOL Frostlube F 22

Category: Other hydraulic oil
Item number: 1323351
Specification: ISO 6743-4 HV
Oil type: Mineral
Application: Industry

RAVENOL Frostlube F 22 is special hydraulic fluid designed on the basis of specially selected base oils for the low-temperature performance and high quality hydraulic additives including corrosion and oxidation inhibitors as well as additives for the reduction of wear and foaming.

RAVENOL Frostlube F 22 is a high quality, anti-wear hydraulic oil with a very high viscosity index, good shear stability and excellent low-temperature properties.

Application Note

RAVENOL Frostlube F 22 is excellently suitable for application in extremely low temperatures, e.g. equipment in refrigerated warehouses or mobile facilities, which are used outdoors under extreme winter conditions.

RAVENOL Frostlube F 22 is specifically formulated so that a consistent viscosity is extensively given even in the case of extremely varying temperatures.

RAVENOL Frostlube F 22 is a shear stable, high quality hydraulic oil and therefore, suitable for application under extreme hydraulic conditions without risk for the system. If the oil temperature is permanently above 80°C, the hydraulic system should be pressurized to minimize oil loss due to evaporation.

Characteristics

  • An extremely high viscosity index so that the good lubrication properties and the protection in the eventof minimal viscosity alterations are ensured by a wide temperature range.
  • A low pour point; therefore, application at extremely low temperatures is permitted without the risk offreezing.
  • An extremely good resistance to oxidation and a very good shear stability; therefore, longer service lifeof the oil under the usually extreme application conditions.
  • Protection of the hydraulic system against corrosive influences.
  • Anti-wear effect.
  • Load bearing capability.
  • Longer service life of the oil.

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³837,0EN ISO 12185
ColourgrünVISUELL
Viscosity at 100 °Cmm²/s7,3DIN 51562-1
Viscosity at 40 °Cmm²/s25,4DIN 51562-1
Viscosity Index VI274DIN ISO 2909
Pourpoint°C-63DIN ISO 3016
Flashpoint°C156DIN EN ISO 2592

All indicated data are approximate values and are subject to the commercial fluctuations.
