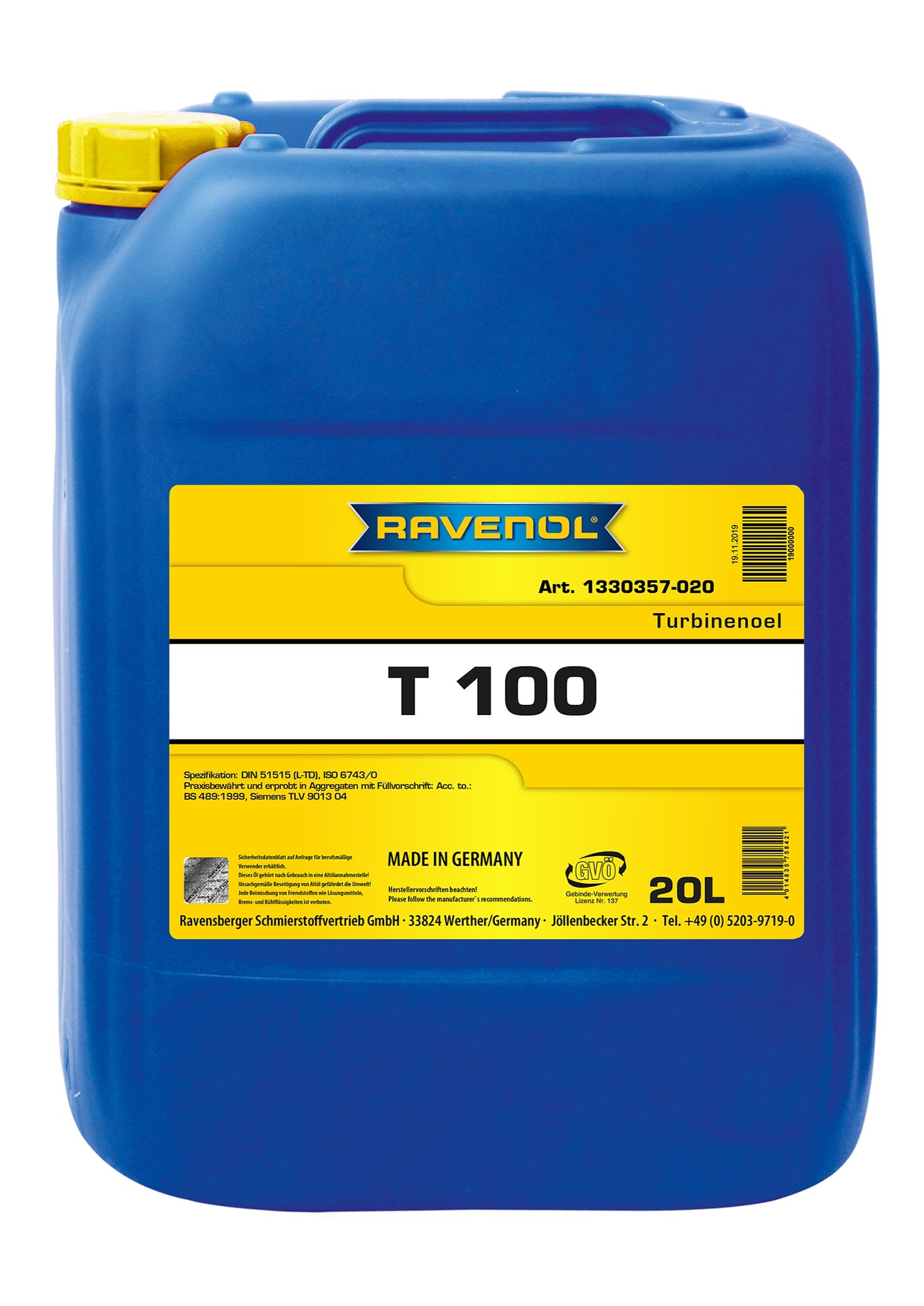

RAVENOL Turbinenoel T 100

Category Industrial oil

Item number 1330357

Viscosity 100

Specification DIN 51515-1 L-TD, ISO 6743-0

Oil type Mineral

Recommendation British Standard BS 489: 1999, Siemens TLV 9013 04

Application Industry

RAVENOL Turbinenöl T 100 is produced for the lubrication of gas and steam turbines as well as turbo compressors with and without transmission according to the specifications of DIN 51 515-2.

RAVENOL Turbinenöl T 100 urbinenöl T 100 is based on high quality mineral base oils with agents to increase the corrosion protection and aging resistance.

RAVENOL Turbinenöl T 100 is a universal mineral oil for turbines of especially chosen refined base oils with a natural high viscosity index. So-called “metal deactivators” are added to the turbine oil in addition to the normal additives in order to guarantee the excellent characteristics.

Application Note

RAVENOL Turbinenöl T 100 is used in fixed gas and steam turbines as well as electrical machines or machines driven by steam turbines like generators, compressors, pumps and transmissions.

RAVENOL Turbinenöl T 100 can also be used for the lubrication of hydraulic systems, compressors, gear transfers and bearings in case of problems of the contamination with water because a high protection against rust and oxidation is requested.

Characteristics

  • an excellent thermic and oxidative stability
  • an excellent viscosity temperature behaviour
  • a high and stable viscosity index
  • a very good oxidation stability also at very high temperatures
  • a good protection against corrosion of Ferro and non Ferro metals
  • an excellent water separation behaviour
  • a very good air separation behaviour which excludes foam formation as far as possible
  • a low pour point
  • a good corrosion behaviour
  • an excellent water separation behaviour / demulsifying behaviour

Technical Product Data

PropertyUnitDataAudit
Density at 20 °C 868,0 kg/m³ EN ISO 12185
Viscosity at 100 °C 11,1 mm²/s DIN 51562-1
Viscosity at 40 °C 100,0 mm²/s DIN 51562-1
Viscosity Index VI 96 DIN ISO 2909
Pourpoint -21 °C DIN ISO 3016
Flashpoint 240 °C DIN EN ISO 2592
