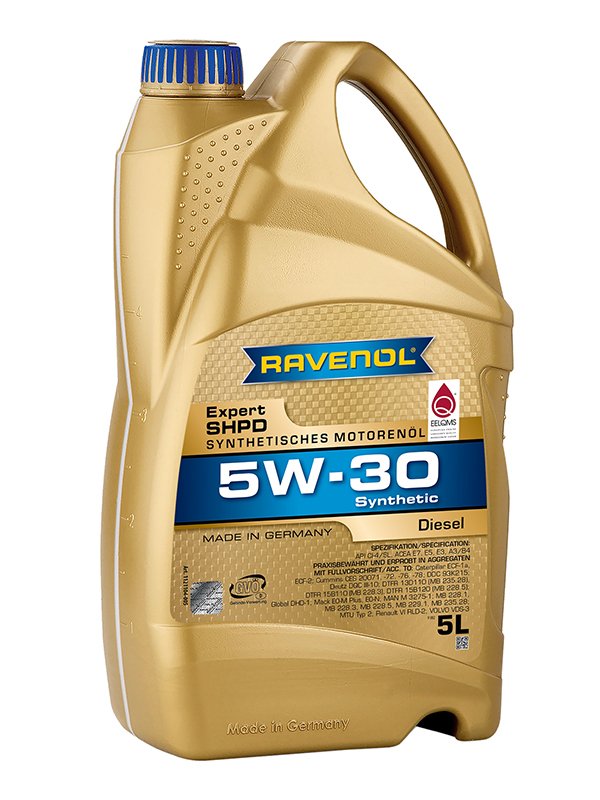

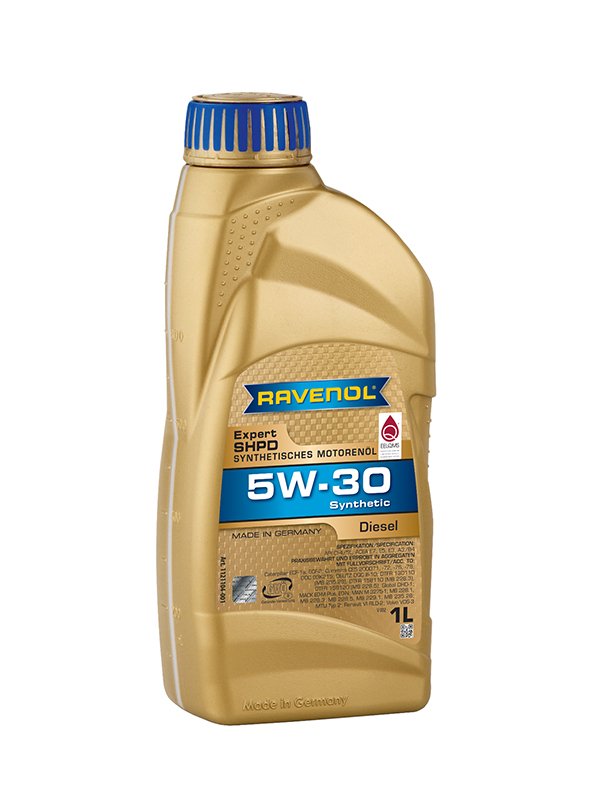

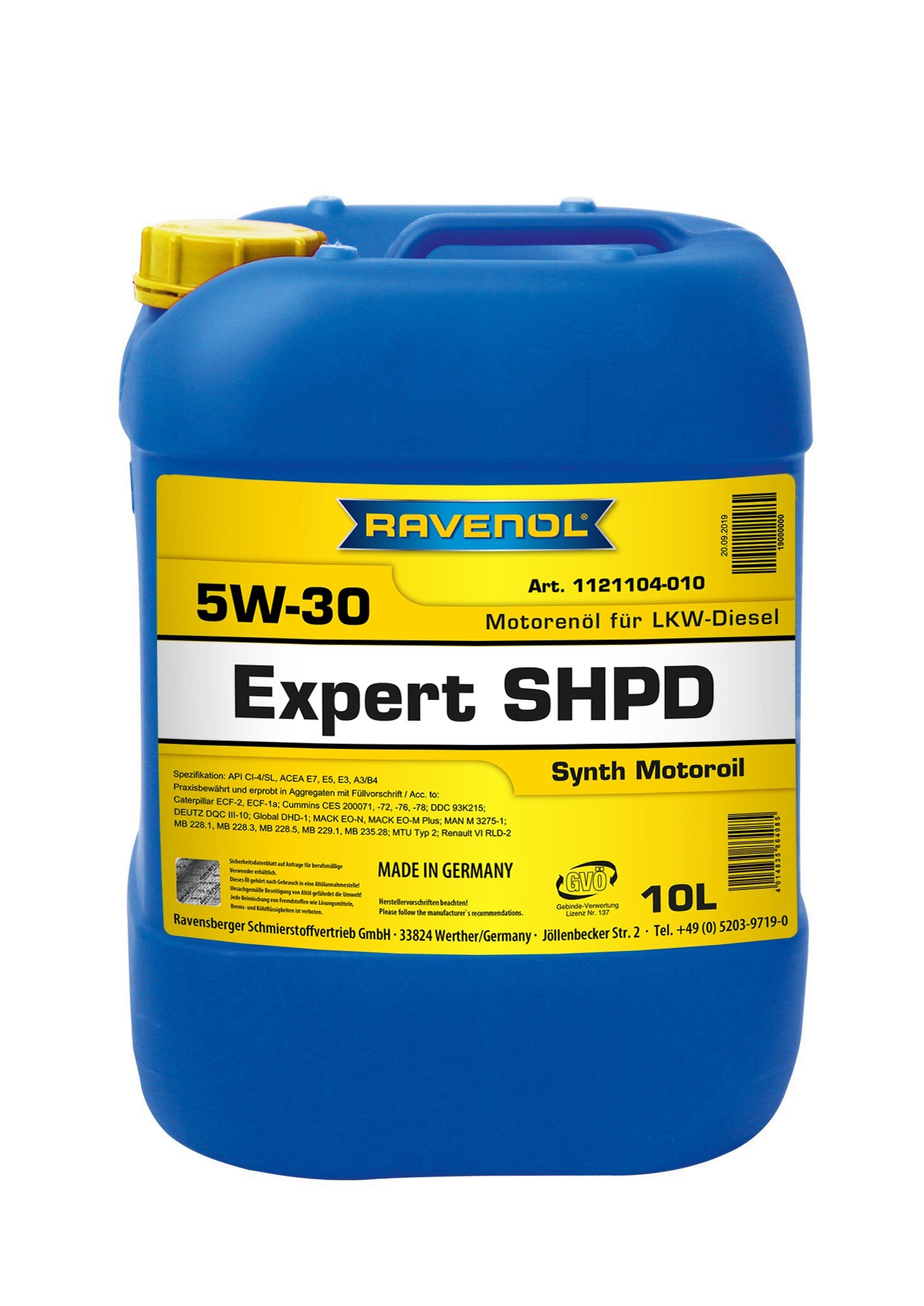

RAVENOL Expert SHPD SAE 5W-30 is a high-alloyed SHPD low-friction engine oil for commercial vehicles. Due to the formulation with synthetic base oils, the viscosity range 5W-30 could be realized.
RAVENOL Expert SHPD SAE 5W-30 ensures a reliable cold start at low outside temperatures and full lubricity at high operating temperatures thanks to the SAE 5W-30 viscosity range. Friction losses and wear are reduced.
RAVENOL Expert SHPD SAE 5W-30 was designed as SHPD engine oil (Super High Performance Diesel) for use in turbocharged and non-turbocharged engines.
Application instructions
RAVENOL Expert SHPD SAE 5W-30 is a year-round high performance engine oil designed for the truck fleet and buses according to the specified specifications.
RAVENOL Expert SHPD SAE 5W-30 is universally applicable in truck diesel engines with and without turbocharging. It can be used for EURO 4, EURO 5 and EURO 6 engines.Please follow the manufacturer's instructions.
Technical Product Data
| Characteristics | Property | Data | Audit |
|---|---|---|---|
| Colour | gelbbraun | VISUELL | |
| Sulphated Ash | %wt. | 1,29 | DIN 51575 |
| tbn | mg KOH/g | 10,7 | ASTM D2896 |
| Viscosity at 100 °C | mm²/s | 12,2 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 74,2 | DIN 51562-1 |
| Viscosity Index VI | 161 | DIN ISO 2909 | |
| CCS Viscosity at -30 °C | mPa*s | 6340 | ASTM D5293 |
| Density at 20 °C | kg/m³ | 851,0 | EN ISO 12185 |
| Flashpoint | °C | 228 | DIN EN ISO 2592 |
| HTHS Viscosity at 150 °C | mPa*s | 3,53 | ASTM D5481 |
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 25.890 | ASTM D4684 |
| Noack Volatility | % M/M | 8,3 | ASTM D5800 |
| Pourpoint | °C | -42 | DIN ISO 3016 |
